CM5-Carrier-Board-Rev2
About the CM5-Carrier-Board-Rev2
CM5-Carrier-Board-Rev2 is an open source Raspberry Pi PCB design by AsadImranRafique, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 120 × 40 mm, with 60 components from 34 distinct parts.
Its main chip is the DF40C-100DS-0.4V(51), from the Raspberry Pi family. Other key parts include the RT9742GGJ5, CDDFN10-3324P, ASEK-32.768KHZ-L-R-T, AP3441SHE-7B and LPJG0926HENL. By type, the board carries 18 resistors, 14 capacitors, 11 connectors, 8 ICs, 6 diodes and 1 inductor.
It belongs with the dev boards & breakouts and audio designs in this gallery.
From the project
Open-source six-layer Raspberry Pi CM4/CM5 carrier board with USB-C, 25 W PoE, M.2 NVMe, microSD, I2S, and expansion-board connectors.

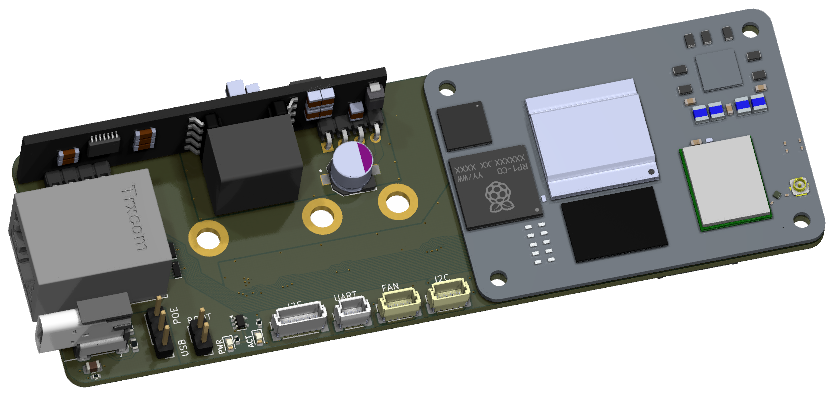

A compact six-layer carrier board for the Raspberry Pi Compute Module 4, Compute Module 5 and compatible modules. Rev2 retains the 120 mm × 40 mm form factor while improving CM4 compatibility and adding an I²S connector and two underside expansion-board interfaces.
- M.2 interface revised to support CM4, CM5 and compatible compute modules - PWM fan control revised to operate correctly with CM4 and compatible modules - I²S JST connector added to the main board - Two 50-pin Hirose connectors added on the underside for a companion expansion board
Main components on the CM5-Carrier-Board-Rev2
CM5-Carrier-Board-Rev2 bill of materials (BOM)
60 components, 34 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RT9742GGJ5 RichTek | SOT-23-5 | U1 |
| 2 | CDDFN10-3324P Bourns | USON-10_2.5x1.0mm_P0.5mm | U2, U4 |
| 1 | ASEK-32.768KHZ-L-R-T abracon | Crystal_SMD_3225-4Pin_3.2x2.5mm | U3 |
| 1 | AP3441SHE-7B Diodes Incorporated | DFN-8-1EP_2x2mm_P0.5mm_EP1.05x1.75mm | U5 |
| 1 | LPJG0926HENL MagJack-RJ45 LinkPP | TRJG0926HENL | U6 |
| 1 | 74LVC1G07 Diodes Incorporated | SOT-353_SC-70-5 | U7 |
| 1 | EMC2301-1-ACZL-TR Microchip | MSOP-8_3x3mm_P0.65mm | U9 |
| 1 | 5033981892 Micro_SD_Card_Det Molex | SDCARD_MOLEX_503398-1892 | J1 |
| 1 | USB4205-GF-A USB_C_Receptacle_USB2.0_16P GCT | USB4205-GF-A | J2 |
| 1 | MDT320M03001 Bus_M.2_Socket_M Amphenol Inc. | M.2 M Key socket | J3 |
| 1 | G800W306018EU Conn_01x02 Amphenol Inc. | PinHeader_1x02_P2.54mm_Vertical | J4 |
| 1 | G800W305018EU Conn_01x03 Amphenol Inc. | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 2 | BM04B-SRSS-TBLFSN JST Sales America Inc. | JST_SH_BM04B-SRSS-TB_1x04-1MP_P1.00mm_Vertical | J6, J9 |
| 1 | BM06B-SRSS-TBLFSN JST Sales America Inc. | CONN_BM06B-SRSS-TB_JST | J7 |
| 2 | DF40HC(4.0)-50DS-0.4V(51) Hirose | HRS_DF40HC_4.0_-50DS-0.4V_51_ | J8, J11 |
| 1 | BM03B-SRSS-TBLFSN JST Sales America Inc. | JST_SH_BM03B-SRSS-TB_1x03-1MP_P1.00mm_Vertical | J10 |
| 1 | DF40C-100DS-0.4V(51) ComputeModule5 rail Hirose | CONN_DF40C-100DS-0.4V51_HIR | Conn1 |
| 1 | DF40C-100DS-0.4V(51) ComputeModule5 High Speed rail Hirose | CONN_DF40C-100DS-0.4V51_HIR | Conn2 |
| 2 | LTST-C190GKT LED Green Lite-On Inc. | LED_0603_1608Metric | D1, D3 |
| 1 | LTST-C190KRKT LED Red Lite-On Inc. | LED_0603_1608Metric | D2 |
Show 14 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | MB6S Diotec Semiconductor | TO-269AA | D4, D5 |
| 1 | SMAJ58A Littelfuse Inc. | D_SMA | D6 |
| 1 | SRP5030CC-2R2M 2.2uH Bourns | L_Bourns_SRP5030CC | L1 |
| 8 | GRM21BR71A106KA73L 10uF Murata | C_0805_2012Metric | C1, C2, C6, C7, C9, C10, C11, C12 |
| 4 | EMK105B7104KV-F 100nF TAIYO YUDEN EUROPE GMBH | C_0402_1005Metric | C3, C4, C8, C14 |
| 1 | CC0402KRX7R9BB472 4.7nF Yageo | C_0402_1005Metric | C5 |
| 1 | 16SVPK220M Panasonic | CAP_16SVPK220M | C13 |
| 4 | RC0402FR-0710KL 10k Yageo | R_0402_1005Metric | R1, R2, R3, R12 |
| 4 | RC0402FR-072K2L 2.2K 1% Yageo | R_0402_1005Metric | R4, R9, R10, R14 |
| 2 | RC0603FR-075K1L 5.1k Yageo | R_0603_1608Metric | R5, R6 |
| 1 | RC0402FR-0712KL 12K 1% Yageo | R_0402_1005Metric | R7 |
| 4 | RC0402FR-071KL 1k Yageo | R_0402_1005Metric | R8, R15, R16, R18 |
| 2 | RC0402FR-07470RL 470R Yageo | R_0402_1005Metric | R11, R13 |
| 1 | RC0402FR-0736KL 36K 1% Yageo | R_0402_1005Metric | R17 |
CM5-Carrier-Board-Rev2 design files
The KiCad project lives in the AsadImranRafique/CM5-Carrier-Board-Rev2 repository on GitHub; these links point at the commit this page was built from.
CM5-Carrier-Board-Rev2: common questions
What microcontroller does the CM5-Carrier-Board-Rev2 use?
The CM5-Carrier-Board-Rev2 is built around the DF40C-100DS-0.4V(51), from the Raspberry Pi family.
How big is the CM5-Carrier-Board-Rev2?
The CM5-Carrier-Board-Rev2 measures 120 × 40 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the CM5-Carrier-Board-Rev2?
60 components, from 34 distinct parts. The full bill of materials is listed on this page.
Where can I download the CM5-Carrier-Board-Rev2 design files?
From the AsadImranRafique/CM5-Carrier-Board-Rev2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CM5-Carrier-Board-Rev2 design in my own project?
Yes, under the terms of its Apache-2.0 license, which AsadImranRafique chose for the repository.
Can I test firmware for the CM5-Carrier-Board-Rev2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
