About the MSI001 PCB

MSI001 is an open source PCB design by ATmega8, published on GitHub under the MIT license. It is a 2-layer board measuring 99 × 69 mm, with 168 components from 70 distinct parts.

Other key parts include the 74LVC1G125, AD9288, PE42641, MGA68563 and 74LVC1G08. By type, the board carries 97 capacitors, 26 inductors, 25 resistors, 13 ICs, 4 connectors and 2 transistors.

It belongs with the rf & radio and audio designs in this gallery.

From the project

Release KiteRF is a SDR system with K210 & FPGA & ESP32 as its core controller, which make SDR more intelligent, portable and cheap.

KiteRF is a SDR system with K210 & FPGA & ESP32 as its core controller, which make SDR more intelligent, portable and cheap.

* Mixing IF signal to baseband and outputting IQ analog signal

* Switching signal paths in different frequencies

You can follow the steps below to set up the development environment, or directly download the release version of the full environment.

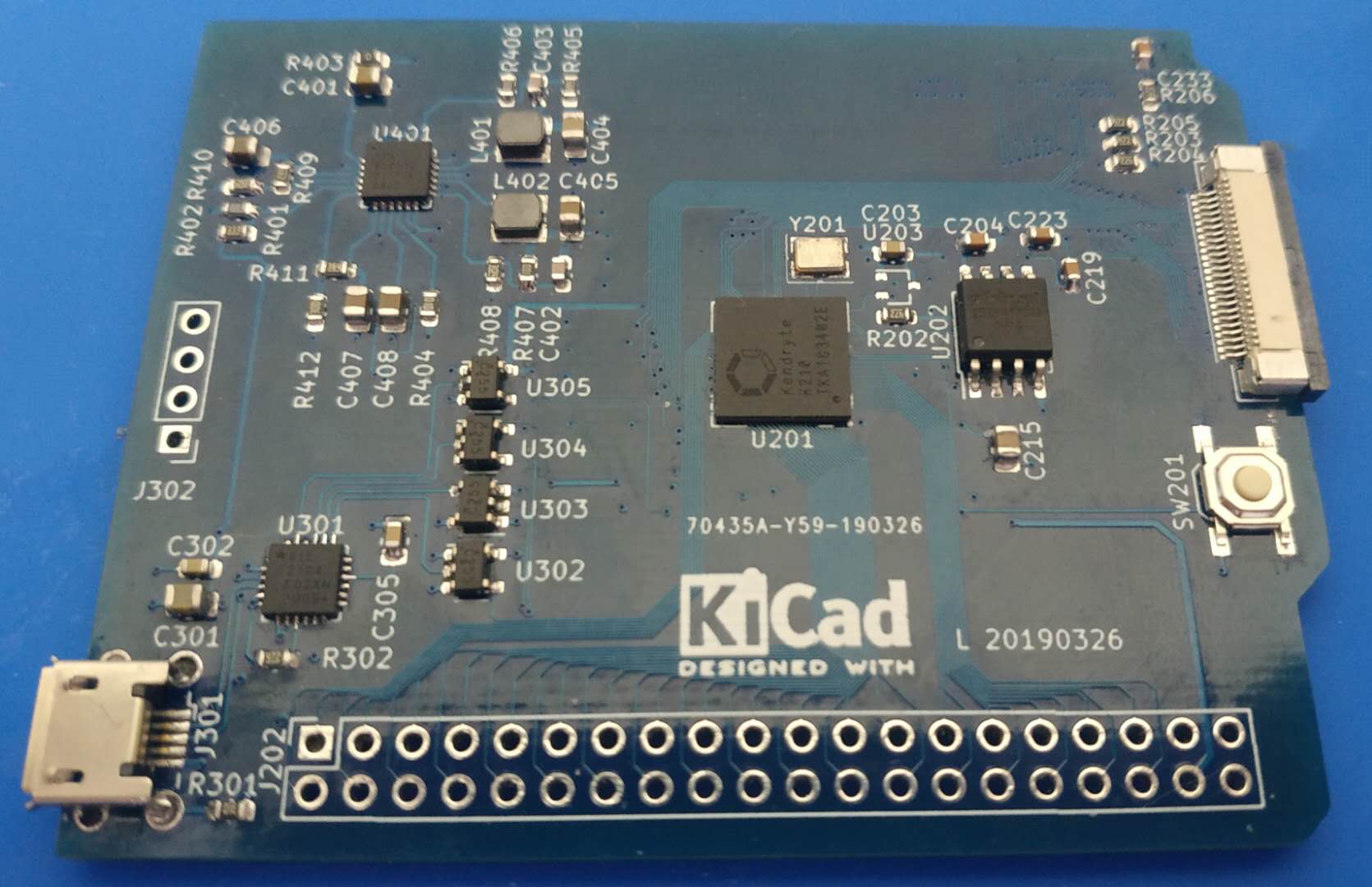

MSI001, from the project README
From the project README

Main components on the MSI001

74LVC1G125AD9288PE42641MGA6856374LVC1G08SKY13251MSI001SI5351ALP5907MFX-3.3LP5907MFX-2.8

MSI001 bill of materials (BOM)

168 components, 70 distinct parts.

QtyPartRefs
2
74LVC1G125
U201, U202
1
AD9288
U203
2
PE42641
U301, U305
1
MGA68563
U302
1
74LVC1G08
U303
1
SKY13251
U304
1
MSI001
U401
1
SI5351A
U501
2
LP5907MFX-3.3
U502, U503
1
LP5907MFX-2.8
U504
2
DMG1016
Q301, Q302
1
25MHz 10ppm
Y501
1
CONTROL
J101
1
Conn_02x12_Odd_Even
J201
1
ANT
J301
1
+5V
J501
3
Ferrite_Bead
FB501, FB502, FB503
1
150nH
L301
1
390nH
L302
1
1uH
L303
Show 50 more
QtyPartRefs
2
330nH
L304, L307
1
470nH
L305
1
220nH
L306
2
47nH
L308, L410
1
120nH
L309
2
82nH
L310, L401
1
15nH
L402
1
68nH
L403
1
22nH
L404
1
33nH
L405
2
100nH
L406, L411
1
39nH
L407
1
6.8pF
L408
1
6.8nH
L409
1
270nH
L412
1
8.2nH
L413
8
10uF
C201, C203, C216, C503, C505, C507, C508, C509
16
0.1uF
C202, C204, C205, C206, C207, C208, C209, C210 +8
4
39pF
C301, C316, C325, C414
2
120pF
C302, C311
2
100pF
C304, C306
26
10nF
C305, C307, C308, C309, C317, C318, C319, C330 +18
2
3.3pF
C310, C326
4
1000pF
C312, C322, C323, C324
1
82pF
C314
2
2.7pF
C315, C328
1
180pF
C320
1
3.9pF
C321
1
12pF
C327
2
4.7pF
C329, C405
4
5.6pF
C401, C402, C403, C404
2
27pF
C406, C408
3
1.8pF
C407, C412, C416
2
10pF
C409, C420
3
22pF
C410, C501, C502
1
1nF
C411
2
1.5pF
C413, C418
1
2.2pF
C417
2
100nF
C426, C427
1
6800pF
C434
1
33nF
C435
3
1uF
C510, C511, C512
4
36R
R201, R202, R203, R204
10
0R
R205, R206, R207, R208, R209, R210, R503, R504 +2
1
270R
R301
1
100K
R302
4
33R
R401, R402, R405, R406
2
18R
R403, R404
1
390
R407
2
10K
R501, R502

MSI001 design files

The KiCad project lives in the ATmega8/kiterf repository on GitHub; these links point at the commit this page was built from.

MSI001: common questions

How big is the MSI001 PCB?

The MSI001 measures 99 × 69 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MSI001?

168 components, from 70 distinct parts. The full bill of materials is listed on this page.

Where can I download the MSI001 design files?

From the ATmega8/kiterf repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the MSI001 design in my own project?

Yes, under the terms of its MIT license, which ATmega8 chose for the repository.
