About the Devboard PCB

Devboard is an open source RP2040/RP2350 PCB design by AYUSH-pro-grammer, published on GitHub. It is a 2-layer board measuring 21 × 51 mm, with 34 components from 17 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the MCP1700T-3302E/TT and W25Q16JVUXIQ. By type, the board carries 17 capacitors, 7 resistors, 4 connectors, 3 ICs, 1 crystal and 1 switch.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Custom RP2040-based development board for embedded systems and hardware prototyping.

The following BOM was used for the RP2040 DevBoard.

- Designed around the Raspberry Pi RP2040 microcontroller. - Uses a 12MHz external crystal and Winbond SPI flash. - USB Type-C connector footprint is compatible with HRO TYPE-C-31-M-12. - All resistors and capacitors use 0402 footprints unless otherwise noted. - Some LCSC parts may become unavailable over time; equivalent parts with matching value, package, and electrical specifications may be substituted. - For the latest sourcing information, see bom.csv.

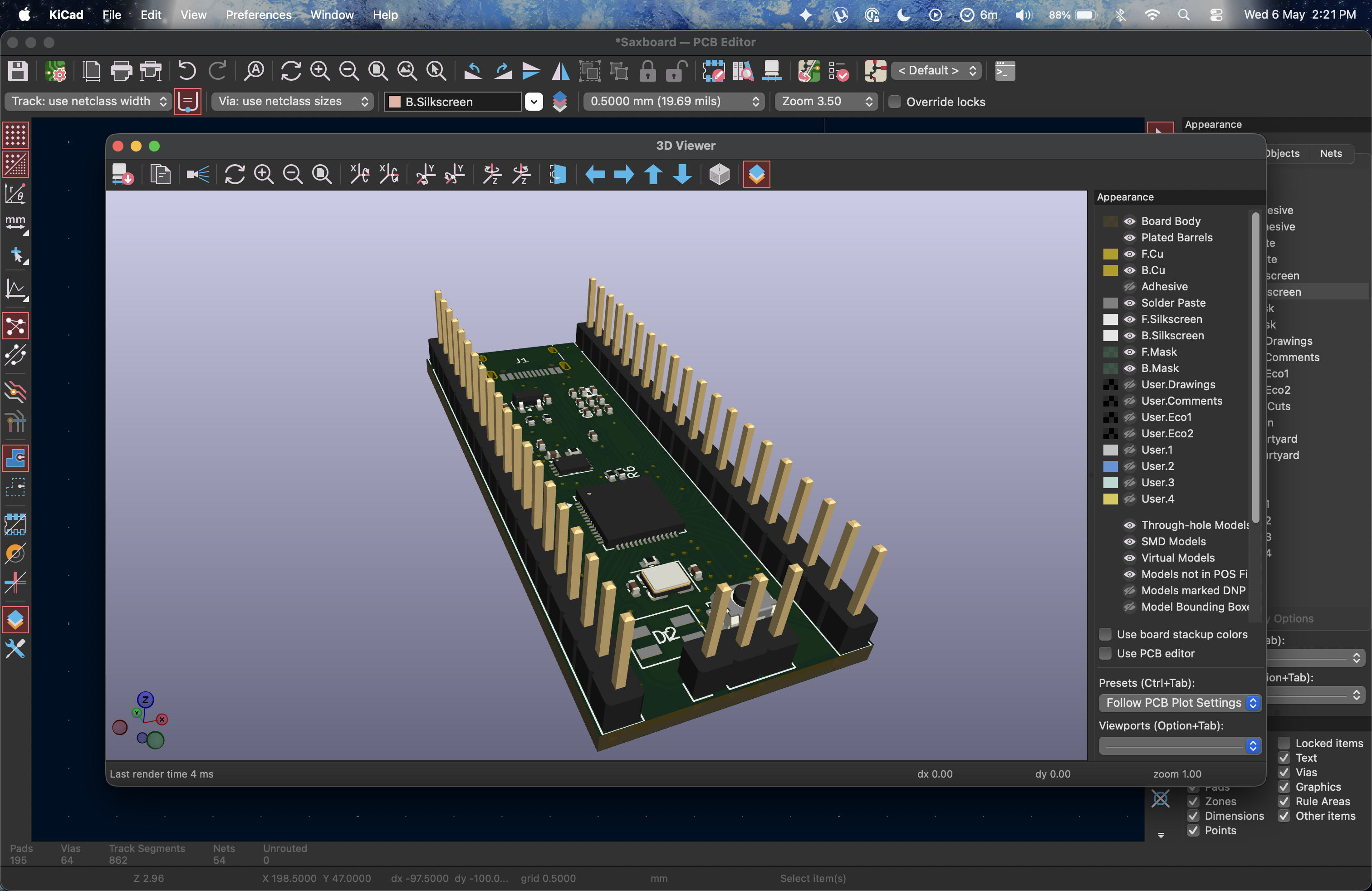

Devboard, from the project README — From the project README

Main components on the Devboard

RP2040 MCP1700T-3302E/TT W25Q16JVUXIQ

Devboard bill of materials (BOM)

34 components, 17 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040 Raspberry Pi	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	MCP1700T-3302E/TT MCP1700x-330xxTT Microchip	SOT-23	U2
1	W25Q16JVUXIQ Winbond	Winbond_USON-8-1EP_3x2mm_P0.5mm_EP0.2x1.6mm	U3
1	X322512MSB4SI 12 MHz YXC Crystal Oscillators	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	TYPE-C-31-M-12 USB_C_Receptacle_USB2.0_14P Korean Hroparts Elec	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J1
2	Conn_01x20	PinHeader_1x20_P2.54mm_Vertical	J2, J3
1	Conn_01x03	PinHeader_1x03_P2.54mm_Vertical	J4
1	TS-1088-AR02016 SW_Push XUNPU	SW_Push_SPST_NO_Alps_SKRK	SW1
1	SK6812MINI-E SK6812MINI OPSCO	LED_SK6812MINI_PLCC4_3.5x3.5mm_P1.75mm	D2
2	CL05A105KA5NQNC 1uF Samsung Electro-Mechanics	C_0402_1005Metric	C1, C10
11	CL05B104KO5NNNC 0.1uF Samsung Electro-Mechanics	C_0402_1005Metric	C2, C3, C4, C5, C6, C7, C8, C9 +3
2	CL10A106KP8NNNC 10uF Samsung Electro-Mechanics	C_0402_1005Metric	C13, C14
2	0402CG150J500NT 15pF FH	C_0402_1005Metric	C15, C16
2	0402WGF5101TCE 5.1k UNI-ROYAL	R_0402_1005Metric	R1, R2
2	0402WGF1001TCE 1k UNI-ROYAL	R_0402_1005Metric	R3, R5
1	0402WGF1002TCE 10k UNI-ROYAL	R_0402_1005Metric	R4
2	0402WGF270JTCE 27 UNI-ROYAL	R_0402_1005Metric	R6, R7

Devboard design files

The KiCad project lives in the AYUSH-pro-grammer/devboard repository on GitHub; these links point at the commit this page was built from.

Devboard: common questions

What microcontroller does the Devboard use?

The Devboard is built around the RP2040, from the RP2040/RP2350 family.

How big is the Devboard PCB?

The Devboard measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Devboard?

34 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Devboard design files?

From the AYUSH-pro-grammer/devboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Devboard design in my own project?

The repository has no license, so all rights stay with AYUSH-pro-grammer. Use it as a reference, and ask the author before reusing the design.
