Barsotion-PL1
About the Barsotion-PL1 PCB

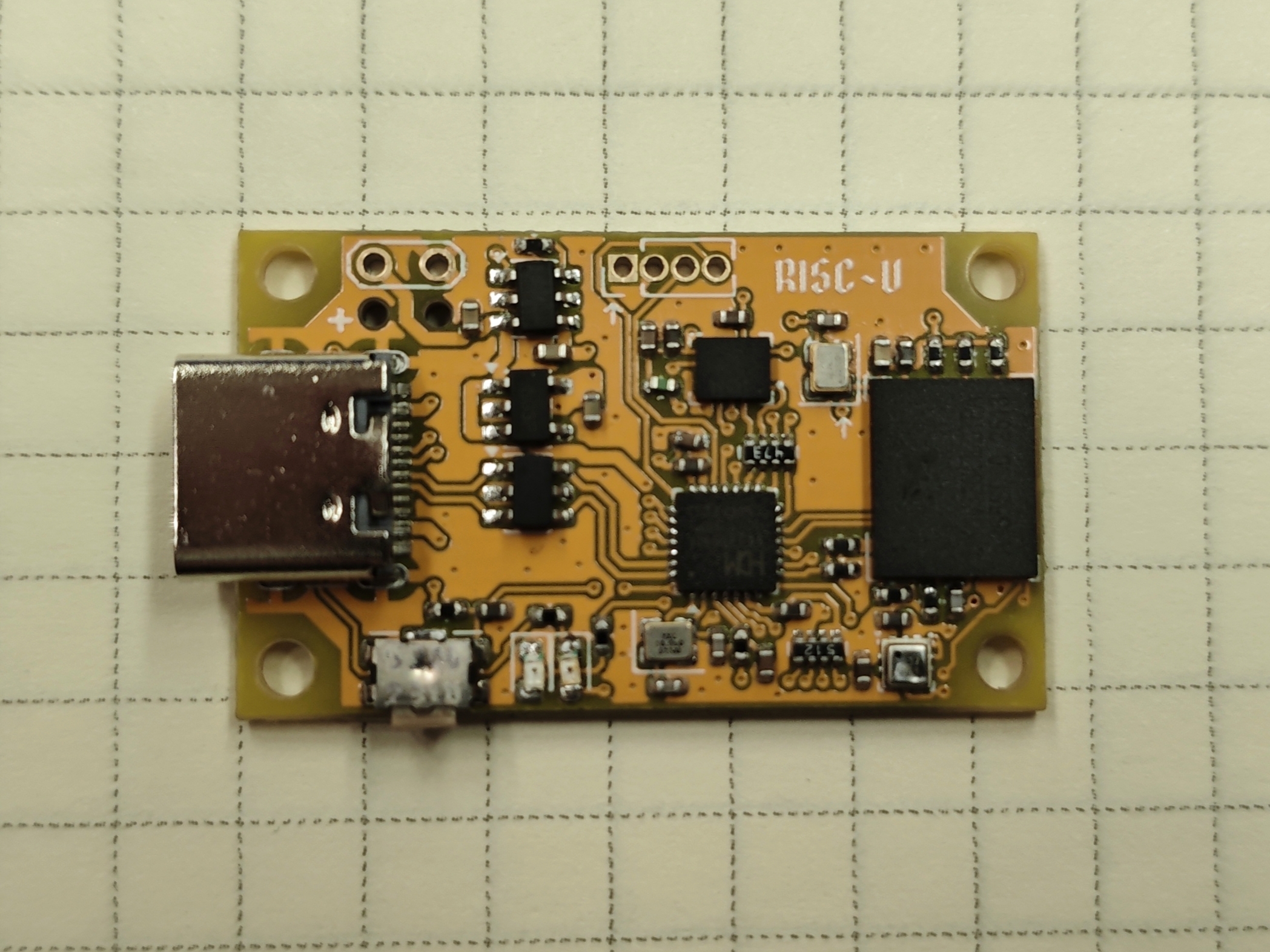

Barsotion-PL1 is an open source RISC-V PCB design by Barsy-Barsevich, published on GitHub under the MIT license. It is a 4-layer board measuring 33 × 20 mm, with 47 components from 25 distinct parts.
Its main chip is the CH32V305GBU6, from the RISC-V family. Other key parts include the ICM-45686, BMP388, TP4057, USBLC6-2SC6 and AP2112K-3.3. By type, the board carries 18 capacitors, 16 resistors, 7 ICs, 2 crystals, 2 diodes and 1 connector.
From the project
Progressive logger hardware part
Main components on the Barsotion-PL1
Barsotion-PL1 bill of materials (BOM)
47 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH32V305GBU6 | QFN28_4x4mm_2.7mm_PAD | U1 |
| 1 | ICM-45686 | ICM-45686 | U2 |
| 1 | BMP388 | BMP388_v2 | U3 |
| 1 | TP4057 | TSOT-23-6 | U4 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U5 |
| 1 | AP2112K-3.3 | SOT-23-5 | U6 |
| 1 | MKDV32GCL-STPA | LGA-8-8x6.6-MKDV32GCL-STPA | U7 |
| 1 | CRYSTAL_GND24 Crystal_GND24 | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y1 |
| 1 | 32.768KHZ 32.768kHz | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y2 |
| 1 | USB_C | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J1 |
| 1 | KMS231GLFS | SW_SPST_CK_KMS2xxG | SW1 |
| 2 | Yellow LED | LED_0603_1608Metric | D1, D2 |
| 3 | 12PF 12pF | C_0402_1005Metric | C1, C2, C3 |
| 4 | 10UF 10uF | C_0402_1005Metric | C4, C5, C6, C18 |
| 8 | 0.1UF 0.1uF | C_0402_1005Metric | C7, C8, C10, C11, C12, C13, C14, C15 |
| 1 | 0.1UF 1uF | C_0402_1005Metric | C9 |
| 2 | 1UF 1uF | C_0402_1005Metric | C16, C17 |
| 1 | 6.65K 6.65k | R_0402_1005Metric | R1 |
| 7 | 10K 10k | R_0402_1005Metric | R2, R4, R5, R6, R7, R8, R13 |
| 2 | 1k | R_0402_1005Metric | R3, R12 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 22 | R_0402_1005Metric | R9, R14 |
| 1 | 8.25K 8.25k | R_0402_1005Metric | R10 |
| 1 | 1.4K 1.4k | R_0402_1005Metric | R11 |
| 1 | 47 | R_Array_Convex_4x0402 | RN1 |
| 1 | 5.1K 5.1k | R_Array_Convex_4x0402 | RN2 |
Barsotion-PL1 design files
The KiCad project lives in the Barsy-Barsevich/Barsotion-PL1 repository on GitHub; these links point at the commit this page was built from.
- LayoutPL1.kicad_pcb
- SchematicPL1.kicad_sch
- BOMGerber&BOM&PNP/v2.7/Barsotion-PL1R1_BOM.csv
Barsotion-PL1: common questions
What microcontroller does the Barsotion-PL1 use?
The Barsotion-PL1 is built around the CH32V305GBU6, from the RISC-V family.
How big is the Barsotion-PL1 PCB?
The Barsotion-PL1 measures 33 × 20 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Barsotion-PL1?
47 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Barsotion-PL1 design files?
From the Barsy-Barsevich/Barsotion-PL1 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Barsotion-PL1 design in my own project?
Yes, under the terms of its MIT license, which Barsy-Barsevich chose for the repository.
Can I test firmware for the Barsotion-PL1 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RISC-V firmware against it before you order a PCB.
