Temper PCB layout, top view — open source ESP32 board by BennetLeff
Simulate this board

About the Temper PCB

Temper is an open source ESP32 PCB design by BennetLeff, published on GitHub under the Custom license license. It is a 6-layer board measuring 164 × 234 mm, with 164 components from 42 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. By type, the board carries 75 resistors, 41 capacitors, 27 ICs, 4 diodes, 3 relays and 2 transistors.

From the project

a breville control freak ++

Temper is a consumer induction cooker built around three pillars: an ESP32-S3 firmware with an 8-state transition-table machine handling real-time power control and hardware-latched protection circuits; a KiCad PCB design optimized through a custom CP-SAT-based signal-integrity and thermal-aware placer pipeline; and a Python/Rust placer toolchain (CP-SAT solver, geometry/DRC/DSN/IPC crates, workflow DAG) that automates layout and checks placement against IPC standards. Protection — over-current, over-voltage, thermal shutdown, UVLO — is designed to be hardware-latched with firmware monitoring.

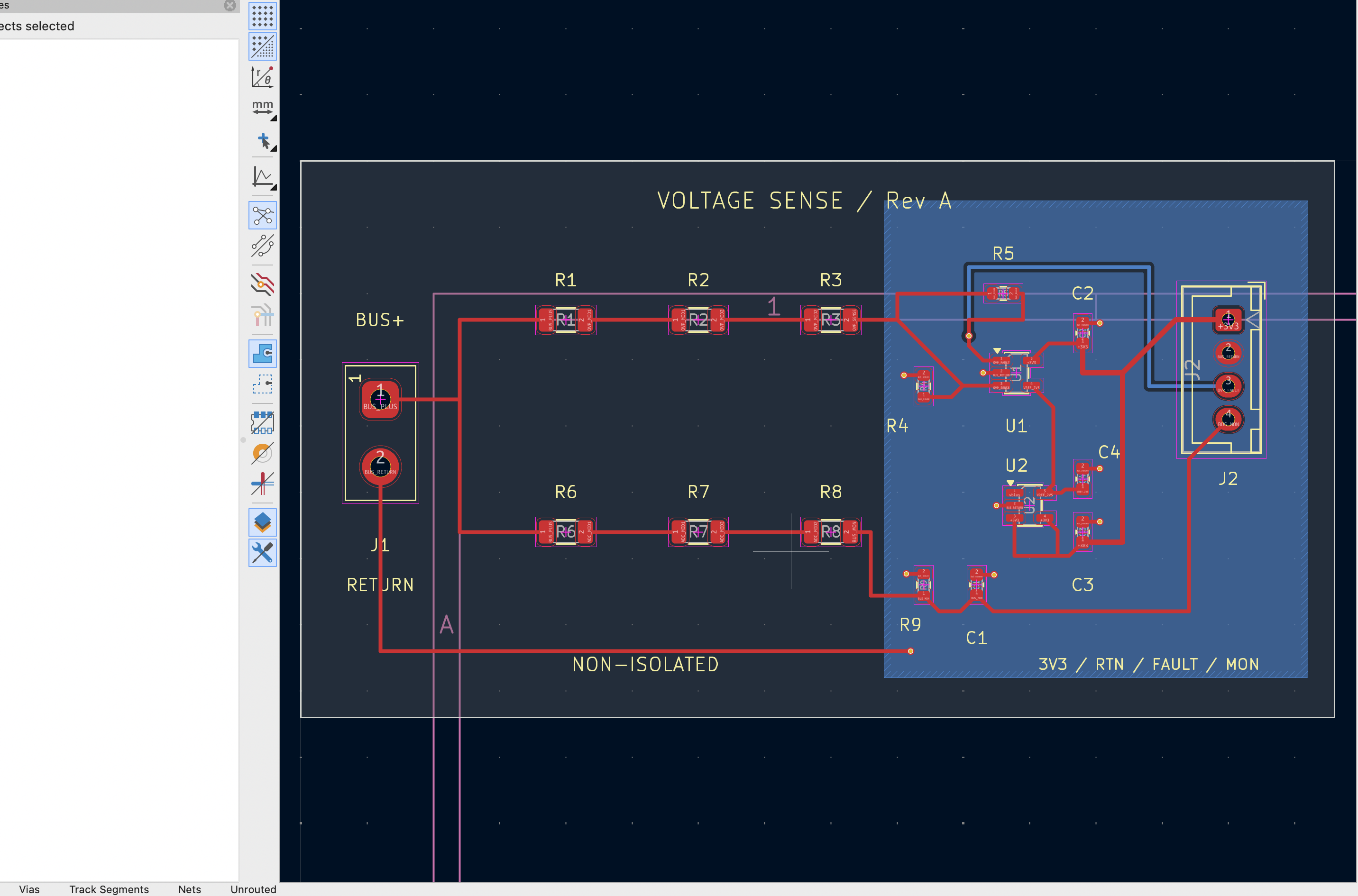

Temper, from the project README
From the project README

Temper bill of materials (BOM)

164 components, 42 distinct parts — part numbers from the project's BOM.
