Bio-Data-Bridge v1.0

bgmbzk·Bio-Data-Bridge-v1.0

Bio-Data-Bridge v1.0 PCB layout, top view — open source AVR/Arduino board by bgmbzk

About the Bio-Data-Bridge v1.0 PCB

Bio-Data-Bridge v1.0 is an open source AVR/Arduino PCB design by bgmbzk, published on GitHub. It is a 2-layer board measuring 109.9 × 32.7 mm, with 35 components from 21 distinct parts.

Its main chip is the ATmega328P-A, from the AVR/Arduino family. Other key parts include the LM358, PC817, L7805 and CH340G. By type, the board carries 11 capacitors, 10 resistors, 6 ICs, 2 crystals, 2 connectors and 2 diodes.

From the project

Bio-Data-Bridge, insan vücudundan alınan hassas biyometrik sinyalleri (EKG, EMG veya diğer analog veriler) güvenli bir şekilde işlemek ve dijital ortama aktarmak için tasarlanmış, yüksek izolasyonlu bir Biyometrik Veri Arayüzüdür

Bio-Data-Bridge, insan vücudundan alınan hassas biyometrik sinyalleri (EKG, EMG veya diğer analog veriler) güvenli bir şekilde işlemek ve dijital ortama aktarmak için tasarlanmış, yüksek izolasyonlu bir Biyometrik Veri Arayüzüdür.

İnsan-Makine Arayüzü (HMI): Kart üzerindeki özel konnektör yapısı, elektrotlar aracılığıyla doğrudan insan vücudundan veri alacak şekilde konfigüre edilmiştir. Kullanıcı Güvenliği: Kullanıcı ile doğrudan fiziksel temas olduğu için sistem, PC817 optokuplörler kullanılarak bilgisayarın şebeke geriliminden ve olası voltaj dalgalanmalarından tamamen izole edilmiştir.

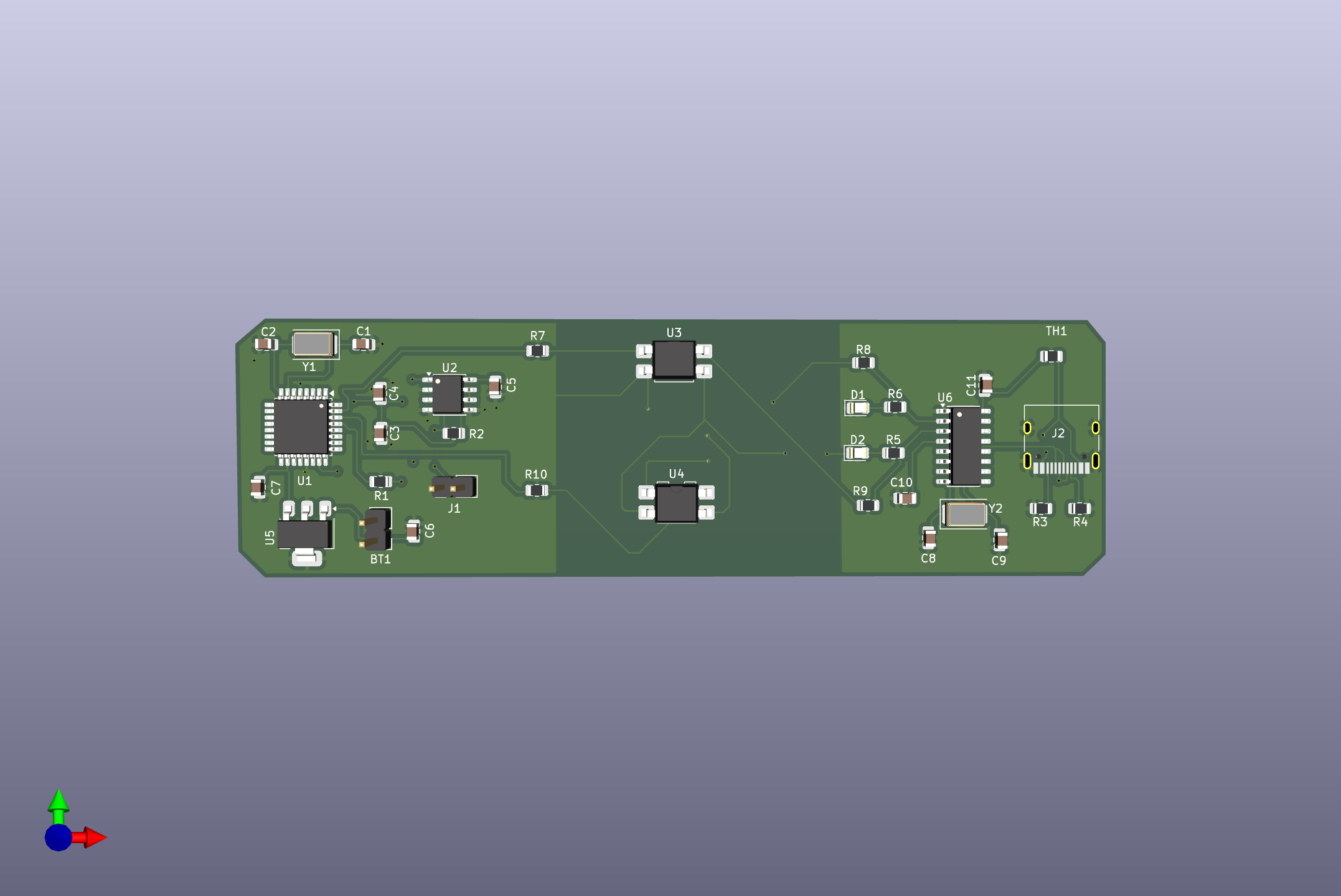

Bio-Data-Bridge v1.0, from the project README
From the project README

Main components on the Bio-Data-Bridge v1.0

ATmega328P-ALM358PC817L7805CH340G

Bio-Data-Bridge v1.0 bill of materials (BOM)

35 components, 21 distinct parts.

QtyPartRefs
1
ATmega328P-A
U1
1
LM358
U2
2
PC817
U3, U4
1
L7805
U5
1
CH340G
U6
2
Crystal
Y1, Y2
1
Conn_01x02_Pin
J1
1
USB_C_Receptacle
J2
1
Battery_Cell
BT1
1
Thermistor_PTC
TH1
2
LED
D1, D2
4
22pF
C1, C2, C8, C9
4
100nF
C3, C4, C5, C11
2
10UF
C6, C7
1
10nF
C10
1
10kΩ
R1
1
1MΩ
R2
2
5.1kΩ
R3, R4
2
220Ω
R5, R6
2
220
R7, R8
Show 1 more
QtyPartRefs
2
10k
R9, R10

Bio-Data-Bridge v1.0 design files

The KiCad project lives in the bgmbzk/Bio-Data-Bridge-v1.0 repository on GitHub; these links point at the commit this page was built from.

Bio-Data-Bridge v1.0: common questions

What microcontroller does the Bio-Data-Bridge v1.0 use?

The Bio-Data-Bridge v1.0 is built around the ATmega328P-A, from the AVR/Arduino family.

How big is the Bio-Data-Bridge v1.0 PCB?

The Bio-Data-Bridge v1.0 measures 109.9 × 32.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bio-Data-Bridge v1.0?

35 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bio-Data-Bridge v1.0 design files?

From the bgmbzk/Bio-Data-Bridge-v1.0 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Bio-Data-Bridge v1.0 design in my own project?

The repository has no license, so all rights stay with bgmbzk. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Bio-Data-Bridge v1.0 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
