Motor quick connect
About the Motor quick connect PCB
Motor quick connect is an open source PCB design by biomimetics, published on GitHub. It is a 2-layer board measuring 42.8 × 46.3 mm, with 4 components from 4 distinct parts.
It belongs with the robotics & motion designs in this gallery.
From the project
PC boards for MRI robogt control, specifically for STM32 motherboard

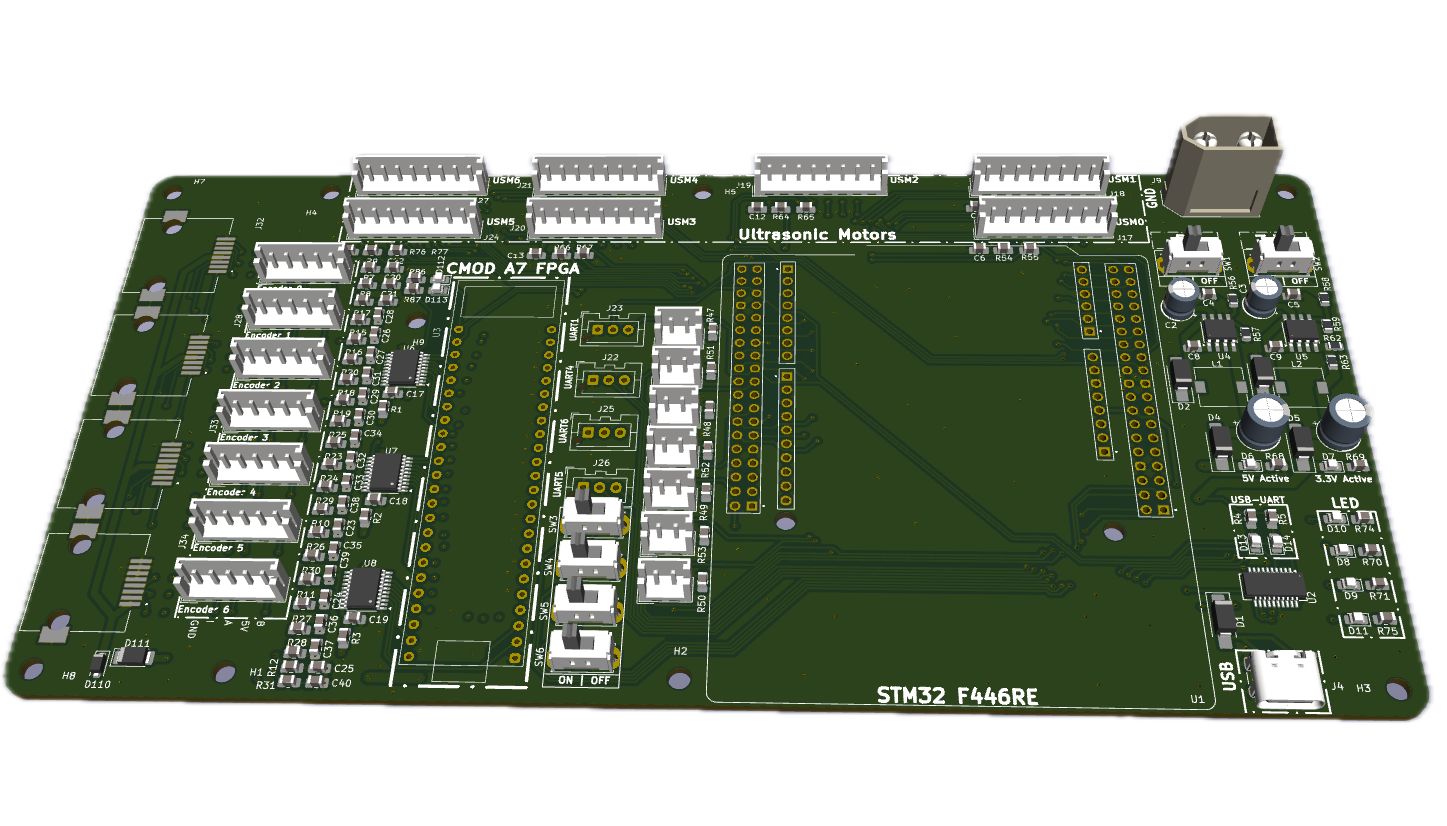

MainPCB (holds STM32 Nucleo 446RE and FPGA for encoder reading)
PowerPCB (switches for enabling individual ultrasonic motors, +24V in connector, master power switch))
MotorJoint_Splitter (mounted on robot arm)
* Motor Joint Splitter V3 (mounted next to each actuator)
Motorreroute (at motor controller. Splits Tekcelo control signal to use ethernet for a pair of encoders, and 3 wire sin/cos/gnd cable for 250V )
Motor quick connect bill of materials (BOM)
4 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X05 Conn_01x03 | Molex_KK-396_A-41792-0003_1x03_P3.96mm_Horizontal | J3 |
| 1 | USB_C_RECEPTACLE_USB2.0_16P 54602-908LF | ethernet_54602-908LF | J4 |
| 1 | CONN_01X05 54602-908LF | ethernet_54602-908LF | J6 |
| 1 | Conn_01x03 | Molex_KK-396_A-41792-0003_1x03_P3.96mm_Horizontal | J11 |
Motor quick connect design files
The KiCad project lives in the biomimetics/MRIRobot_PCB repository on GitHub; these links point at the commit this page was built from.
Motor quick connect: common questions
How big is the Motor quick connect PCB?
The Motor quick connect measures 42.8 × 46.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Motor quick connect?
4 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Motor quick connect design files?
From the biomimetics/MRIRobot_PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Motor quick connect design in my own project?
The repository has no license, so all rights stay with biomimetics. Use it as a reference, and ask the author before reusing the design.
