Sdc ntc emulator

bl1ndc4m3l·sdc-ntc-emulator·pcb/sdc-ntc-emulator.kicad_pcb

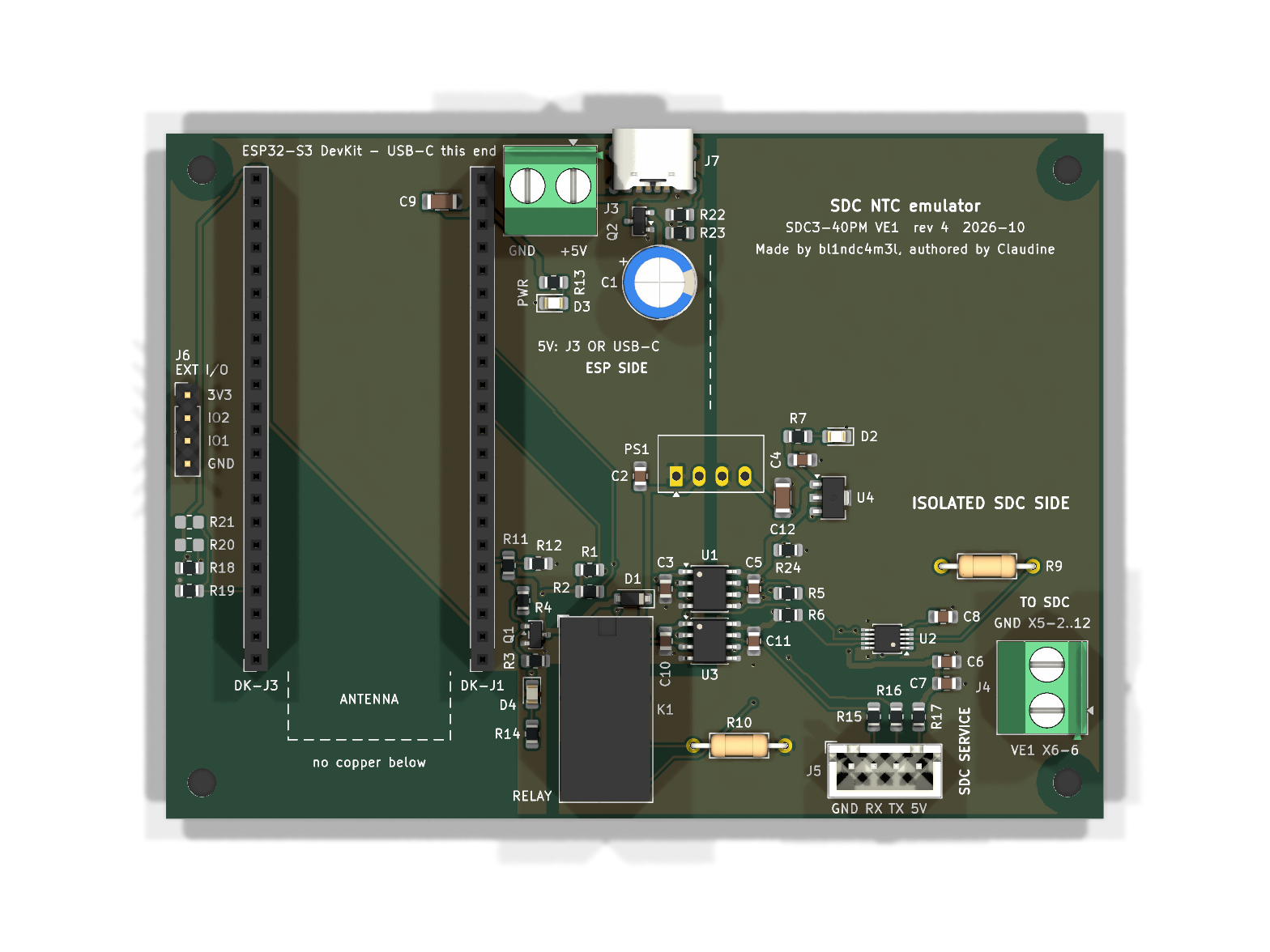

Sdc ntc emulator PCB layout, top view — open source board by bl1ndc4m3l

About the Sdc ntc emulator PCB

Sdc ntc emulator is an open source PCB design by bl1ndc4m3l, published on GitHub under the Custom license license. It is a 2-layer board measuring 104 × 76 mm, with 54 components from 36 distinct parts.

Other key parts include the ISO1540DR, AD5272BRMZ-50, ISO7721DR and L78L05ACUTR. By type, the board carries 23 resistors, 12 capacitors, 7 connectors, 4 ICs, 4 diodes and 2 transistors.

It belongs with the sensors designs in this gallery.

From the project

SDC3-40 NTC emulator for remote temperature setpoint

KiCad 9 project for the wireless room sensor of the Smile SDC3-40PM, as described in docs/design-notes.md. On the board: - ESP32-S3 DevKit on sockets - ISO1540 I2C isolator, Gaptec 1S4E_0509S1U isolated 9 V supply + L78L05, AD5272 digital rheostat - Omron G5V-2 fail-safe relay with state sense - reverse-polarity protection on the 5 V input - isolated UART to the SDC service port - power and relay LEDs, and an expansion header

Sdc ntc emulator, from the project README
From the project README

Main components on the Sdc ntc emulator

ISO1540DRAD5272BRMZ-50ISO7721DRL78L05ACUTR

Sdc ntc emulator bill of materials (BOM)

54 components, 36 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ISO1540DR
ISO1540
Texas Instruments
U1
1
AD5272BRMZ-50
Analog Devices
U2
1
ISO7721DR
ISO7721D
Texas Instruments
U3
1
L78L05ACUTR
L78L05
STMicroelectronics
U4
1
AO3400A
Alpha & Omega Semiconductor
Q1
1
AO3401A
Alpha & Omega Semiconductor
Q2
1
PPTC221LFBN-RC
DevKit J1
Sullins Connector Solutions
J1
1
PPTC221LFBN-RC
DevKit J3
Sullins Connector Solutions
J2
1
1715721
5V IN (RAC03)
Phoenix Contact
J3
1
1715721
SDC VE1 / GND
Phoenix Contact
J4
1
B4B-XH-A(LF)(SN)
SDC SERVICE
JST
J5
1
61300411121
EXT I/O
Wurth Elektronik
J6
1
USB4125-GF-A-0190
USB-C 5V IN
GCT
J7
1
G5V-2-H1 DC5
G5V-2-H1 5VDC
Omron
K1
1
1S4E_0509S1U
GAPTEC Electronic
PS1
1
1N4148W-7-F
1N4148W
Diodes Incorporated
D1
2
LTST-C171GKT
green
Lite-On
D2, D3
1
LTST-C171YKT
yellow
Lite-On
D4
1
EEU-FR1A471
470uF 10V
Panasonic
C1
3
CC0805KRX5R7BB106
10uF 16V X5R
Yageo
C2, C4, C7
Show 16 more
QtyPartRefs
5
CL21B104KBCNNNC
100nF
Samsung Electro-Mechanics
C3, C5, C6, C10, C11
1
GRM219R71E105KA88D
1uF 16V
Murata
C8
2
GRM31CR71E106MA12L
10uF 25V X7R
Murata
C9, C12
2
RC0805FR-072K7L
2k7
Yageo
R1, R2
1
RC0805FR-07100KL
100k
Yageo
R3
3
RC0805FR-07100RL
100R
Yageo
R4, R18, R19
4
RC0805FR-074K7L
4k7
Yageo
R5, R6, R20, R21
2
RC0805FR-071K5L
1k5
Yageo
R7, R24
1
YR1B18K2CC
18k2 0.1% 25ppm
TE Connectivity
R9
1
YR1B24K9CC
24k9 0.1% 25ppm
TE Connectivity
R10
1
RC0805FR-0710KL
10k
Yageo
R11
1
RMCF0805FT20K0
20k
Stackpole Electronics
R12
2
RC0805FR-072K2L
2k2
Yageo
R13, R14
2
RC0805FR-071KL
1k
Yageo
R15, R16
1
RC0805JR-070RL
0R
Yageo
R17
2
CR0805-FX-5101ELF
5k1
Bourns
R22, R23

Sdc ntc emulator design files

The KiCad project lives in the bl1ndc4m3l/sdc-ntc-emulator repository on GitHub; these links point at the commit this page was built from.

Sdc ntc emulator: common questions

How big is the Sdc ntc emulator PCB?

The Sdc ntc emulator measures 104 × 76 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sdc ntc emulator?

54 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Sdc ntc emulator design files?

From the bl1ndc4m3l/sdc-ntc-emulator repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Sdc ntc emulator design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
