About the RP2040-Logic-Analyzer PCB

RP2040-Logic-Analyzer is an open source RP2040/RP2350 PCB design by BlackPancakes, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 55.2 × 24.4 mm, with 50 components from 22 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS, SN74LVC245APW, AP2112K-3.3 and USBLC6-2SC6. By type, the board carries 19 capacitors, 18 resistors, 5 ICs, 3 connectors, 2 switches and 2 diodes.

It belongs with the power & battery and test & measurement designs in this gallery.

From the project

An open-source, high-speed, multi-channel logic analyzer based on the popular Raspberry Pi RP2040 microcontroller. The board was designed in KiCad with a strong focus on signal integrity and miniaturization.

An open-source, high-speed, multi-channel logic analyzer based on the popular Raspberry Pi RP2040 microcontroller.

The board was designed in KiCad with a strong focus on signal integrity, high-speed design principles, and compact PCB layout.

This project is proudly supported and manufactured by PCBWay. Their high-quality 4-layer PCB prototyping service ensures excellent signal integrity for the high-speed USB data lines required by this logic analyzer.

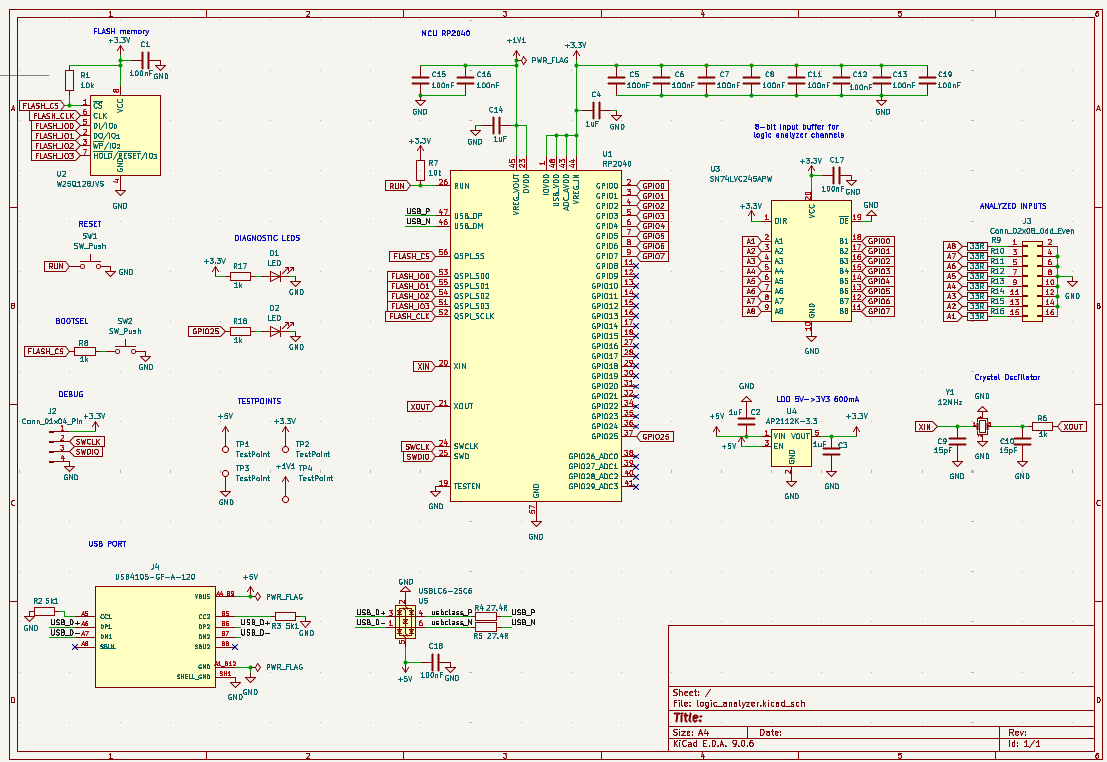

RP2040-Logic-Analyzer, from the project README — From the project README

Main components on the RP2040-Logic-Analyzer

RP2040 W25Q128JVS SN74LVC245APW AP2112K-3.3 USBLC6-2SC6

RP2040-Logic-Analyzer bill of materials (BOM)

50 components, 22 distinct parts.

Qty	Part	Footprint	Refs
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	W25Q128JVS	SOIC-8_5.3x5.3mm_P1.27mm	U2
1	SN74LVC245APW	TSSOP-20_4.4x6.5mm_P0.65mm	U3
1	AP2112K-3.3	SOT-23-5	U4
1	USBLC6-2SC6	SOT-23-6	U5
1	12MHz	Crystal_SMD_Abracon_ABM8AIG-4Pin_3.2x2.5mm	Y1
1	Conn_01x04_Pin	PinHeader_1x04_P2.54mm_Vertical	J2
1	Conn_02x08_Odd_Even	PinHeader_2x08_P2.54mm_Vertical	J3
1	USB4105-GF-A-120	GCT_USB4105-GF-A-120	J4
2	SW_Push	SW_Push_1P1T_NO_CK_KMR2	SW1, SW2
2	LED	LED_0603_1608Metric	D1, D2
13	100nF	C_0402_1005Metric	C1, C5, C6, C7, C8, C11, C12, C13 +5
2	1uF	C_0603_1608Metric	C2, C3
2	1uF	C_0402_1005Metric	C4, C14
2	15pF	C_0603_1608Metric	C9, C10
1	10k	R_0402_1005Metric	R1
2	5k1	R_0603_1608Metric	R2, R3
2	27.4R	R_0402_1005Metric	R4, R5
1	1k	R_0402_1005Metric	R6
1	10k	R_0603_1608Metric	R7

Show 2 more

Qty	Part	Footprint	Refs
3	1k	R_0603_1608Metric	R8, R17, R18
8	33R	R_0603_1608Metric	R9, R10, R11, R12, R13, R14, R15, R16

RP2040-Logic-Analyzer design files

The KiCad project lives in the BlackPancakes/RP2040-Logic-Analyzer repository on GitHub; these links point at the commit this page was built from.

LayoutHardware/logic_analyzer.kicad_pcb
SchematicHardware/logic_analyzer.kicad_sch
