Project tarkus

blfp1·project-tarkus·hardware/pble01.kicad_pcb

Project tarkus PCB layout, top view — open source STM32 board by blfp1

About the Project tarkus PCB

Project tarkus is an open source STM32 PCB design by blfp1, published on GitHub. It is a 2-layer board measuring 94 × 48 mm, with 46 components from 28 distinct parts.

Its main chip is the STM32G030K6Tx, from the STM32 family. Other key parts include the LD1117S33TR_SOT223, USBLC6-2SC6, MCP2200-I-SO and 24LC512. By type, the board carries 14 resistors, 13 capacitors, 6 connectors, 5 ICs, 3 diodes and 2 crystals.

It belongs with the iot & wireless, displays & leds and dev boards & breakouts designs in this gallery.

From the project

Custom development board based on STM32G030K6T6, featuring Bluetooth LE (HM-10), OLED support, and USB-C connectivity. Designed in KiCad.

The project started as a requirement for the PBLE01 course at UNIFEI. The original specification required a 16x2 LCD and a temperature sensor. I decided to modernize the scope by replacing these with a 1.3" OLED Display and a Bluetooth LE module, creating a more versatile platform for IoT projects.

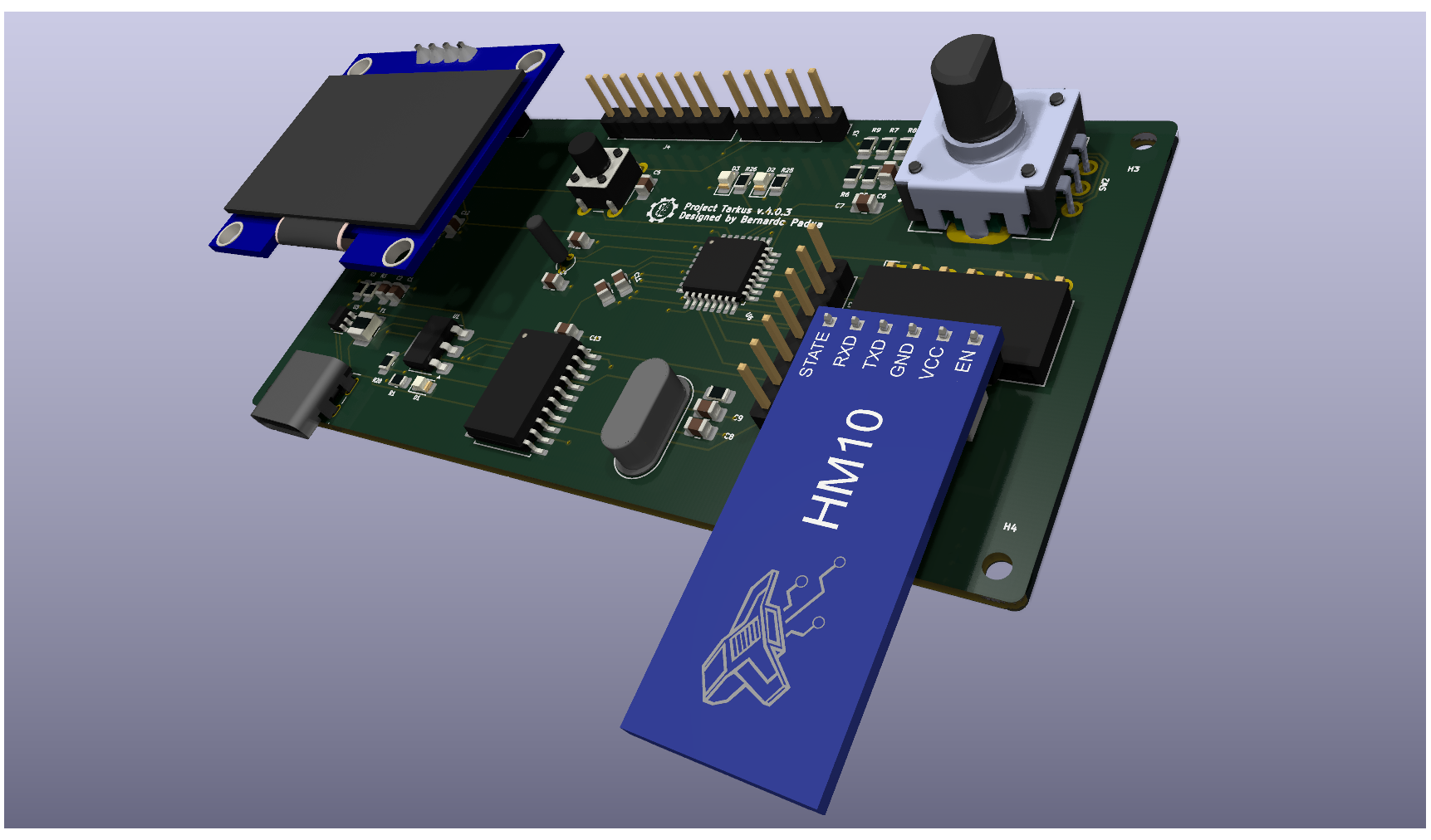

Project tarkus, from the project README
From the project README

Main components on the Project tarkus

LD1117S33TR_SOT223USBLC6-2SC6MCP2200-I-SO24LC512STM32G030K6Tx

Project tarkus bill of materials (BOM)

46 components, 28 distinct parts.

QtyPartRefs
1
LD1117S33TR_SOT223
U1
1
USBLC6-2SC6
U3
1
MCP2200-I-SO
U4
1
24LC512
U5
1
STM32G030K6Tx
U6
1
32.768kHz
Y1
1
12MHz
Y2
2
Expansion
J1, J4
1
Bluetooth
J2
1
Debug
J3
1
USB4085-GF-A
J5
1
OLED
J6
1
0ZCH0035FF2G
F1
1
1825910-6
SW1
1
Encoder
SW2
3
SM0805UOC
D1, D2, D3
4
100n
C1, C10, C12, C13
1
10u
C2
4
20p
C3, C4, C8, C9
1
0.1u
C5
Show 8 more
QtyPartRefs
2
10n
C6, C7
1
4.7u
C11
3
75
R1, R25, R26
2
5k1
R2, R3
5
10k
R5, R6, R7, R8, R9
1
43
R27
1
4.7k
R28
2
2k
R29, R30

Project tarkus design files

The KiCad project lives in the blfp1/project-tarkus repository on GitHub; these links point at the commit this page was built from.

Project tarkus: common questions

What microcontroller does the Project tarkus use?

The Project tarkus is built around the STM32G030K6Tx, from the STM32 family.

How big is the Project tarkus PCB?

The Project tarkus measures 94 × 48 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Project tarkus?

46 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the Project tarkus design files?

From the blfp1/project-tarkus repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Project tarkus design in my own project?

The repository has no license, so all rights stay with blfp1. Use it as a reference, and ask the author before reusing the design.
