Boardoza TH09C Temperature Humidity Sensor Breakout Board
About the Boardoza TH09C Temperature Humidity Sensor Breakout Board
Boardoza TH09C Temperature Humidity Sensor Breakout Board is an open source PCB design by Boardoza, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 20 × 20 mm, with 13 components from 7 distinct parts.
Other key parts include the TH09C and TLV73333PDBVR. By type, the board carries 5 resistors, 3 capacitors, 2 ICs, 2 transistors and 1 connector.
It belongs with the sensors, dev boards & breakouts and power & battery designs in this gallery.
From the project
TH09C Digital Temperature and Humidity Sensor Breakout Board for Accurate Environmental Monitoring via I2C Interface.
Voltage Input Type: Molex 4 pin 2.50mm header
Functions: Temprature and Humidity Sensor
Shield: [![CC BY-SA 4.0][cc-by-sa-shield]][cc-by-sa]
This work is licensed under a [Creative Commons Attribution-ShareAlike 4.0 International License][cc-by-sa].
[cc-by-sa]: http://creativecommons.org/licenses/by-sa/4.0/ [cc-by-sa-image]: https://licensebuttons.net/l/by-sa/4.0/88x31.png [cc-by-sa-shield]: https://img.shields.io/badge/License-CC%20BY--SA%204.0-lightgrey.svg
Main components on the Boardoza TH09C Temperature Humidity Sensor Breakout Board
Boardoza TH09C Temperature Humidity Sensor Breakout Board bill of materials (BOM)
13 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TH09C | TH09C | U1 |
| 1 | TLV73333PDBVR | SOT-23-5 | U2 |
| 2 | 2N7002-7-F 2N7002_R1_00001 Diodes Incorporated | SOT-23-3 | Q1, Q2 |
| 1 | MOLEX_CONNECTOR_1X4 | 2317-04S_1x04_P2.50mm_Vertical | J1 |
| 1 | 100nF | C_0603_1608Metric | C1 |
| 2 | 1uF | C_0603_1608Metric | C2, C3 |
| 5 | 10K | R_0603_1608Metric | R1, R2, R3, R4, R5 |
Boardoza TH09C Temperature Humidity Sensor Breakout Board design files
The KiCad project lives in the Boardoza/Boardoza_TH09C_Temperature_Humidity_Sensor_Breakout_Board repository on GitHub; these links point at the commit this page was built from.
Boardoza TH09C Temperature Humidity Sensor Breakout Board: common questions
How big is the Boardoza TH09C Temperature Humidity Sensor Breakout Board?

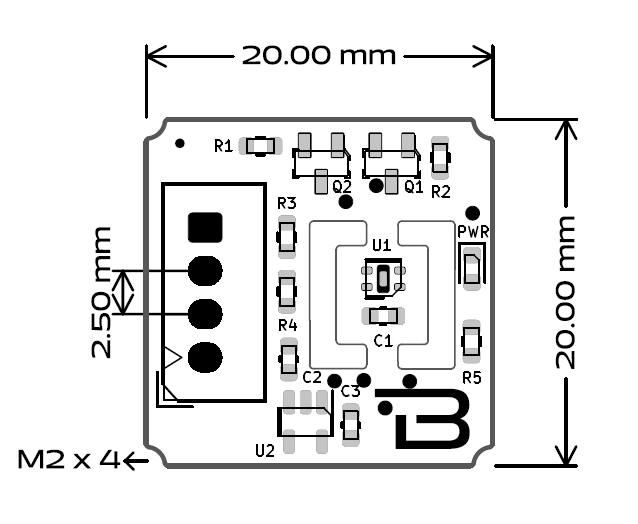

The Boardoza TH09C Temperature Humidity Sensor Breakout Board measures 20 × 20 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Boardoza TH09C Temperature Humidity Sensor Breakout Board?
13 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Boardoza TH09C Temperature Humidity Sensor Breakout Board design files?
From the Boardoza/Boardoza_TH09C_Temperature_Humidity_Sensor_Breakout_Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Boardoza TH09C Temperature Humidity Sensor Breakout Board design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which Boardoza chose for the repository.
