Sensor Array PCB layout, top view — open source board by bsce26023

About the Sensor Array PCB

Sensor Array is an open source PCB design by bsce26023, published on GitHub. It is a 2-layer board measuring 125 × 77.6 mm, with 43 components from 6 distinct parts.

Other key parts include the TCRT5000. By type, the board carries 20 resistors, 10 ICs, 10 capacitors, 2 connectors and 1 switch.

It belongs with the sensors, power & battery and robotics & motion designs in this gallery.

From the project

I designed a LFR from scratch including the PCBs for main board and a custom sensor array.

I designed a LFR from scratch including the PCBs for main board and a custom sensor array.

I've decided the components based on affordability, speed, availability and ease of use. Starting with the micro controller I've selected STM 32 BlackPill and for motors I've selected 3000rpm 6v N20 motors with encoders for fast speed to drive these motors I've chosen TB6612FNG motor driver because it has low voltage drop and also it is way lighter than L298N. I've decided to use a 2S Li-Po battery which is about 7.4v which can power the motors with ease and to power STM32 I'd use a step down buck…

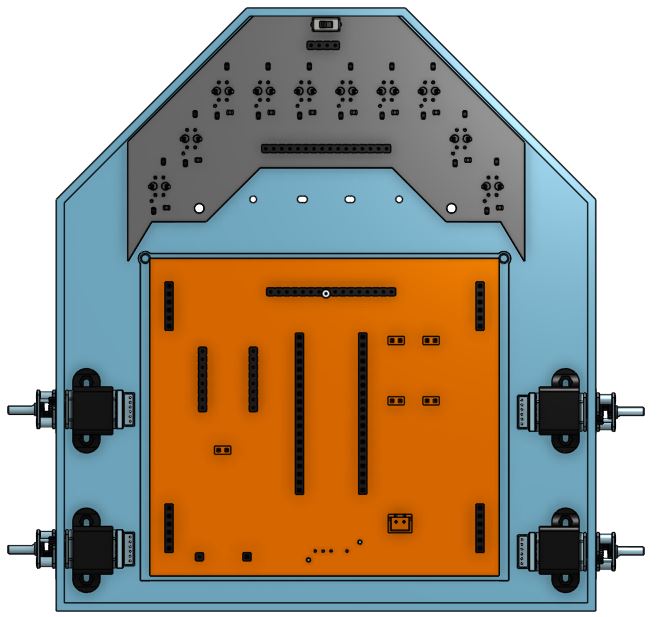

Sensor Array, from the project README
From the project README

Main components on the Sensor Array

TCRT5000

Sensor Array bill of materials (BOM)

43 components, 6 distinct parts.

QtyPartRefs
10
TCRT5000
U1, U2, U3, U4, U5, U6, U7, U8 +2
1
Conn_01x04
J2
1
Conn_01x16
J3
1
SW_SPDT
SW1
10
2.2nF
C1, C2, C3, C4, C5, C6, C7, C8 +2
20
R
R1, R2, R3, R4, R5, R6, R7, R8 +12
