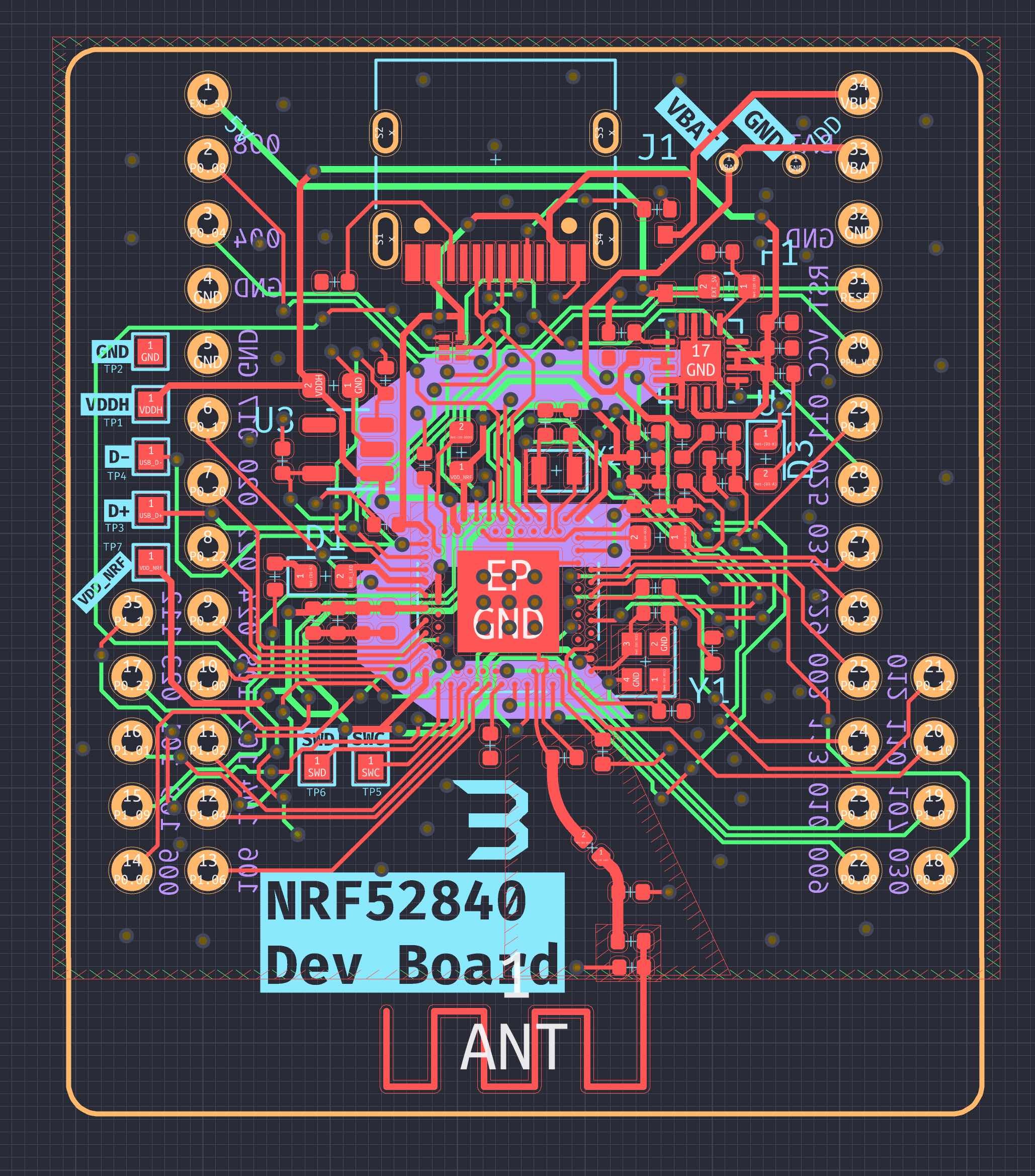

Byrandev PCB layout, top view — open source Nordic nRF board by byrantech
Simulate this board

About the Byrandev PCB

Byrandev is an open source Nordic nRF PCB design by byrantech, published on GitHub under the MIT license. It is a 2-layer board measuring 35.9 × 41.8 mm, with 55 components from 34 distinct parts.

Its main chip is the nRF52840, from the Nordic nRF family. Other key parts include the BQ24075/9, XC6220B331MR, mikoto-pins and ESDR0502NMUTAG. By type, the board carries 26 capacitors, 12 resistors, 5 ICs, 4 inductors, 3 diodes and 2 crystals.

It belongs with the keyboards and dev boards & breakouts designs in this gallery.

From the project

byrandev, a nRF52840 dev board

a nrf52840 dev board that is highly experimental. The components are based off the mikoto board. I will do some finishing touches when I have the time. Since the board is two layered, it can be made affordably and be directly integrated into larger boards with no issue. ##### V2 come soon with a ton of new features: - SMA Antenna Connector - More Pins - JST-PH connector for power - and a lot more!

Byrandev, from the project README
From the project README

Main components on the Byrandev

nRF52840BQ24075/9XC6220B331MRmikoto-pinsESDR0502NMUTAG

Byrandev bill of materials (BOM)

55 components, 34 distinct parts.

QtyPartRefs
1
nRF52840
U1
1
BQ24075/9
U2
1
XC6220B331MR
U3
1
mikoto-pins
U4
1
ESDR0502NMUTAG
U5
1
32MHz
Y1
1
32.768 kHz
Y2
1
USB_C_Receptacle_USB2.0
J1
1
500mA hold
F1
1
Net-Tie_2
NT1
1
BLUE
D1
1
PMEG4010CEJ
D2
1
ORANGE
D3
1
3.9nH
L1
1
15nH
L2
2
10uH
L3, L4
1
1.5pF
C1
2
1pF
C2, C5
4
15pF
C3, C4, C13, C14
4
100nF
C6, C15, C19, C20
Show 14 more
QtyPartRefs
1
100pF
C7
1
1nF
C8
7
4.7uF
C9, C10, C17, C21, C24, C25, C26
3
1uF
C11, C18, C23
1
47nF
C12
1
10nF
C16
1
10uF
C22
1
0R
R1
3
2M
R2, R3, R8
1
10M
R4
1
1.5k
R5
3
10k
R6, R9, R10
1
3.9k
R7
2
5.1k
R11, R12

Byrandev design files

The KiCad project lives in the byrantech/byrandev repository on GitHub; these links point at the commit this page was built from.

Byrandev: common questions

What microcontroller does the Byrandev use?

The Byrandev is built around the nRF52840, from the Nordic nRF family.

How big is the Byrandev PCB?

The Byrandev measures 35.9 × 41.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Byrandev?

55 components, from 34 distinct parts. The full bill of materials is listed on this page.

Where can I download the Byrandev design files?

From the byrantech/byrandev repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Byrandev design in my own project?

Yes, under the terms of its MIT license, which byrantech chose for the repository.

Can I test firmware for the Byrandev without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
