C64board PCB layout, top view — open source FPGA board by c0pperdragon

About the C64board PCB

C64board is an open source FPGA PCB design by c0pperdragon, published on GitHub under the MIT license. It is a 2-layer board measuring 24.4 × 53.3 mm, with 12 components from 8 distinct parts.

Its main chip is the 10M02SCE144, from the FPGA family. Other key parts include the VIC-II, LVC257 and LVC245. By type, the board carries 5 ICs, 5 capacitors, 1 connector and 1 resistor.

It belongs with the retro computing and displays & leds designs in this gallery.

From the project

FPGA board to create a component video signal for vintage computers.

Built on the A-Video board, this is a modification usable for the Commodore 64 computer that generates a YPbPr signal in either 288p or 576p to display on modern displays.

I wanted to get the most perfect display from an original C64 computer. After many failed attempts to reconstruct a digitally perfect pixel-by-pixel display from the S-Video output, I finally came back to my original idea to emulate the inner workings of the VIC-II chip. So, as for the atari 8-bit line and the ZX Spectrum, I applied my trusty A-Video board.

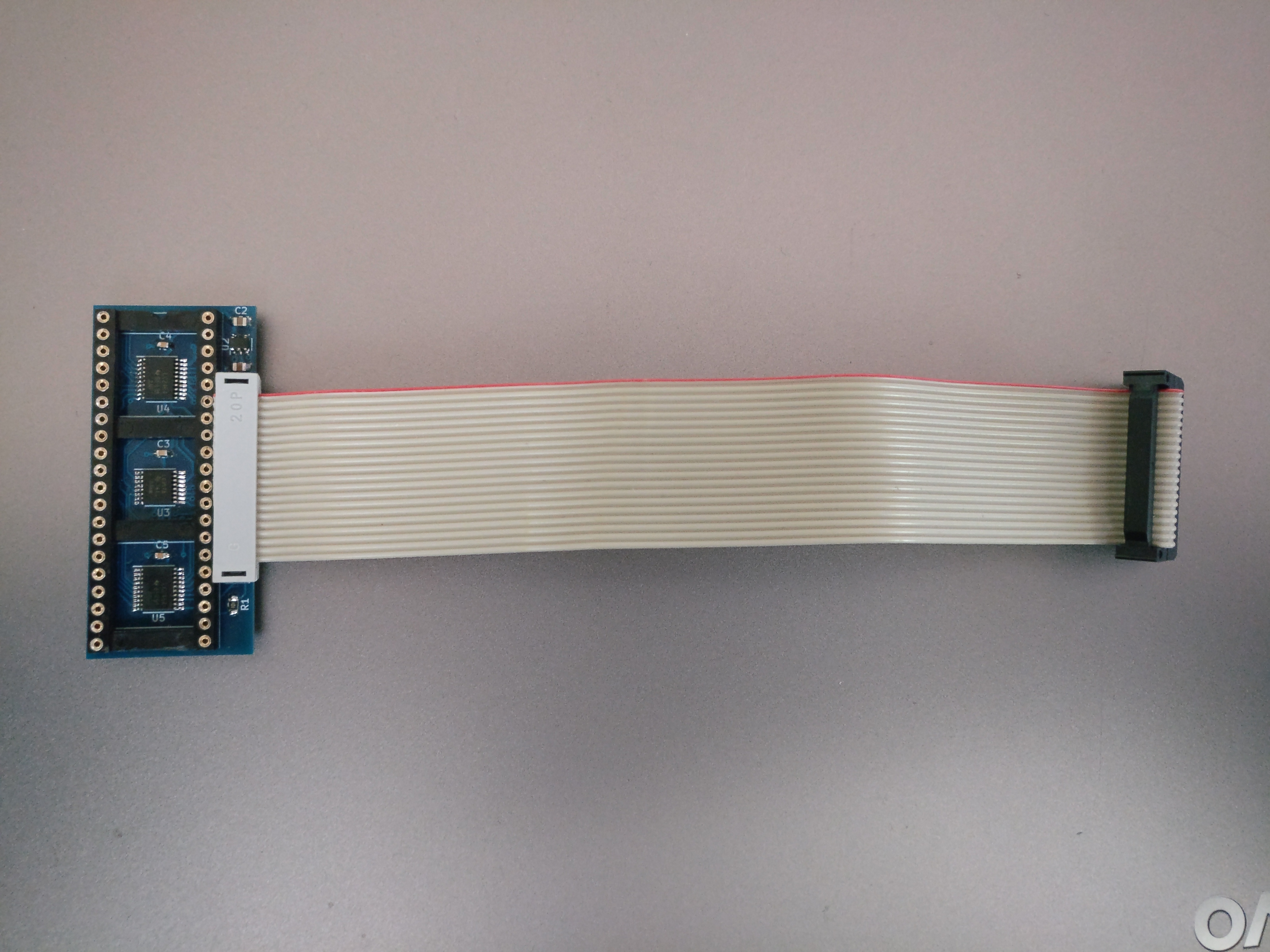

C64board, from the project README
From the project README

Main components on the C64board

VIC-II10M02SCE144LVC257LVC245

C64board bill of materials (BOM)

12 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
VIC-II
U1
1
10M02SCE144
MIC5504-3.3YM5
U2
1
LVC257
U3
2
LVC245
U4, U5
1
Conn_02x10_Odd_Even
J1
2
10UF
10uF
C1, C2
3
10UF
100nF
C3, C4, C5
1
1K1
100Ohm
R1
