PintApple PCB layout, top view — open source ESP32 board by camielverdult

About the PintApple PCB

PintApple is an open source ESP32 PCB design by camielverdult, published on GitHub. It is a 2-layer board measuring 40 × 40 mm, with 36 components from 25 distinct parts.

Its main chip is the ESP32-S2-WROVER, from the ESP32 family. Other key parts include the AP9101CK-CMTRG1, XC6222B331MR-G and MMA8652FCR1. By type, the board carries 17 resistors, 6 connectors, 5 capacitors, 4 ICs, 2 transistors and 1 switch.

It belongs with the displays & leds and sensors designs in this gallery.

From the project

PCB for detecting epilepsy

This is version 2 of the PCB made for Project Integration in Applied Computer Science year 2 at Saxion Enschede.

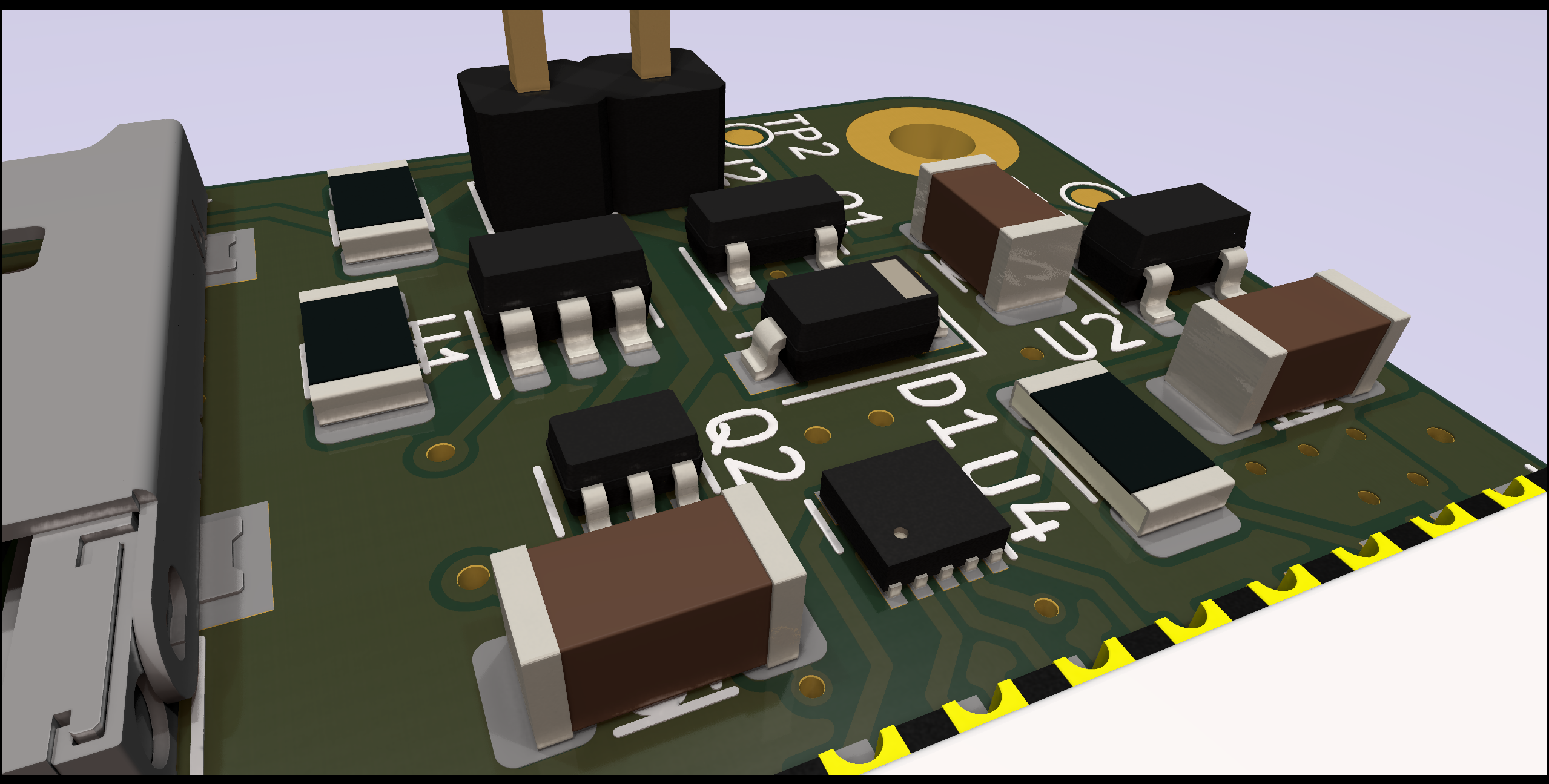

PintApple, from the project README
From the project README

Main components on the PintApple

AP9101CK-CMTRG1XC6222B331MR-GESP32-S2-WROVERMMA8652FCR1

PintApple bill of materials (BOM)

36 components, 25 distinct parts.

QtyPartRefs
1
AP9101CK-CMTRG1
U1
1
XC6222B331MR-G
U2
1
ESP32-S2-WROVER
U3
1
MMA8652FCR1
U4
1
BSH201,215
Q1
1
BSD840NH6327XTSA1
Q2
1
DX07S016JA1R1500
J1
1
Conn_01x02
J2
1
47219-2001
J3
1
MAX9814
J4
1
OLED
J5
1
Heartbeat
J6
1
BUTTON
SW1
1
Diode
D1
2
22uF
C1, C2
2
100nF
C3, C4
1
75-470nF (100nF)
C5
3
100
R1, R2, R9
2
5.1K
R3, R4
2
10K
R5, R17
Show 5 more
QtyPartRefs
2
2.7k
R6, R16
1
1M
R7
1
330-370
R8
4
45K
R10, R11, R14, R15
2
4.7K
R12, R13

PintApple design files

The KiCad project lives in the camielverdult/PintApple_PCB repository on GitHub; these links point at the commit this page was built from.

PintApple: common questions

What microcontroller does the PintApple use?

The PintApple is built around the ESP32-S2-WROVER, from the ESP32 family.

How big is the PintApple PCB?

The PintApple measures 40 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PintApple?

36 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the PintApple design files?

From the camielverdult/PintApple_PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PintApple design in my own project?

The repository has no license, so all rights stay with camielverdult. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the PintApple without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
