RotoPD

CentyLab·RotoPD·Hardware/RotoPD.kicad_pcb

RotoPD PCB layout, top view — open source board by CentyLab

About the RotoPD PCB

RotoPD is an open source PCB design by CentyLab, published on GitHub under the Custom license license. It is a 2-layer board measuring 24.4 × 35.8 mm, with 41 components from 23 distinct parts.

Other key parts include the TPS62933DRLR, AON7262E and AP33772S. By type, the board carries 16 resistors, 9 capacitors, 4 ICs, 4 connectors, 4 diodes and 2 transistors.

It belongs with the power & battery and sensors designs in this gallery.

From the project

Repo for RotoPD hardware and documentation

You can install the library directly on ArduinoIDE

While traditional power adapters can provide a variety of current but fixed to 5V output, our RotoPD leverages advanced power delivery protocols to achieve a versatile output range— 3.5V to 30V at 150W max. The breakout board use a stand alone Power Delivery Sink controller to negotiate with your modern charger and provide different output voltage.

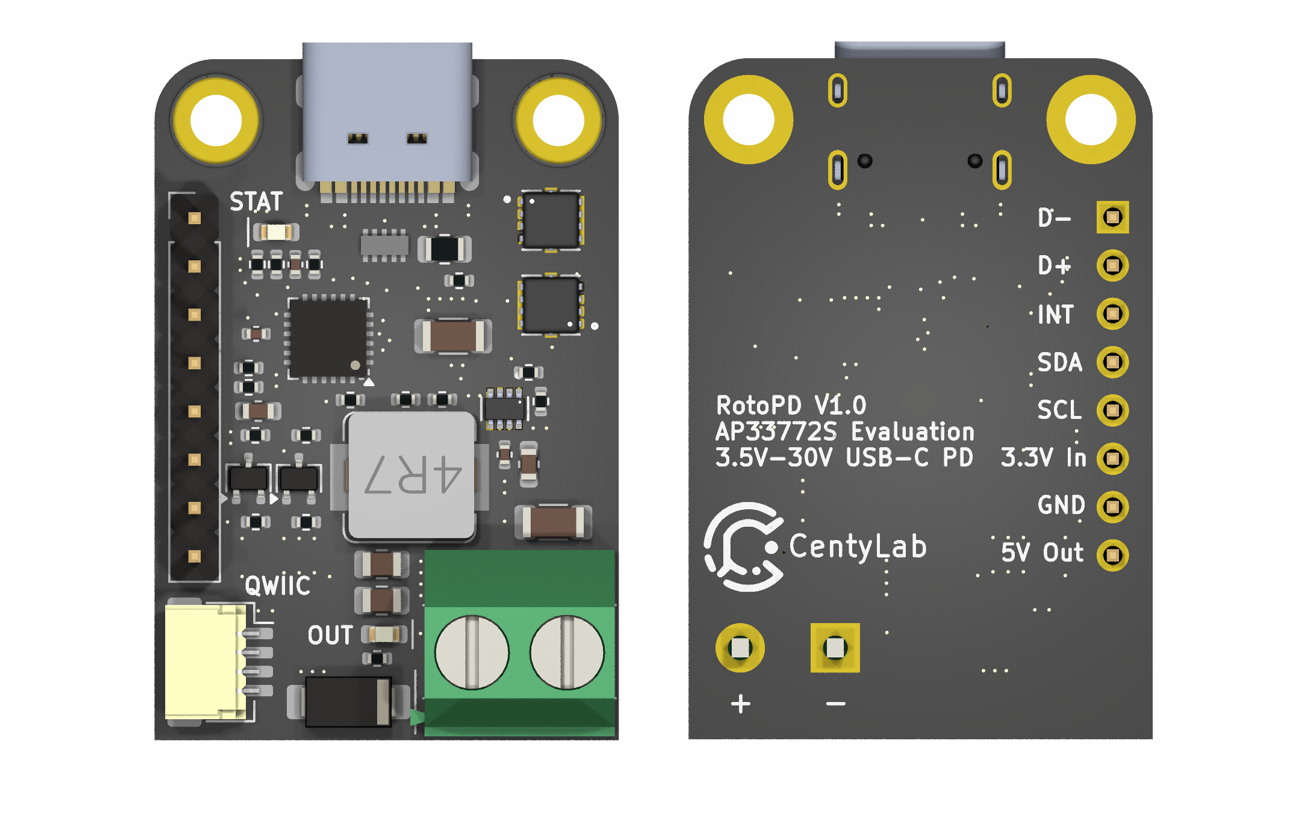

RotoPD, from the project README
From the project README

Main components on the RotoPD

TPS62933DRLRAON7262EAP33772S

RotoPD bill of materials (BOM)

41 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS62933DRLR
U3
2
AON7262E
U4, U6
1
AP33772S
U5
2
BSS138
Q1, Q2
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
QWIIC
J2
1
SCREW_TERMINAL_5MM
Screw_Terminal_5mm
J3
1
CONN_01X08
Conn_01x08
J4
1
Thermistor_NTC
TH1
2
RED
D1, D2
1
D_Schottky
D3
1
TPD4E05U06DQAR
D4
1
3.3U
3.3u
L1
1
33N
33n
C1
3
100NF
100nF
C2, C8, C10
2
10U
10u
C3, C6
2
22U
22u
C4, C5
1
1u
C9
8
5.1K
5.1k
R1, R2, R6, R7, R10, R11, R13, R15
5
10K
10k
R3, R4, R9, R14, R18
Show 3 more
QtyPartRefs
1
5m
R5
1
52.3K
52.3k
R8
1
27R
R12

RotoPD design files

The KiCad project lives in the CentyLab/RotoPD repository on GitHub; these links point at the commit this page was built from.

RotoPD: common questions

How big is the RotoPD PCB?

The RotoPD measures 24.4 × 35.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RotoPD?

41 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RotoPD design files?

From the CentyLab/RotoPD repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RotoPD design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
