DeltaSDR
About the DeltaSDR PCB
DeltaSDR is an open source PCB design by cernohorsky, published on GitHub. It is a 2-layer board measuring 100 × 80 mm, with 173 components from 56 distinct parts.
Other key parts include the MCP1703T-3302E/DB, Si570, SN74CBT3253, PCM3060 and CY8C3246PVI-147. By type, the board carries 76 capacitors, 49 resistors, 13 inductors, 12 ICs, 7 transistors and 7 diodes.
It belongs with the rf & radio designs in this gallery.

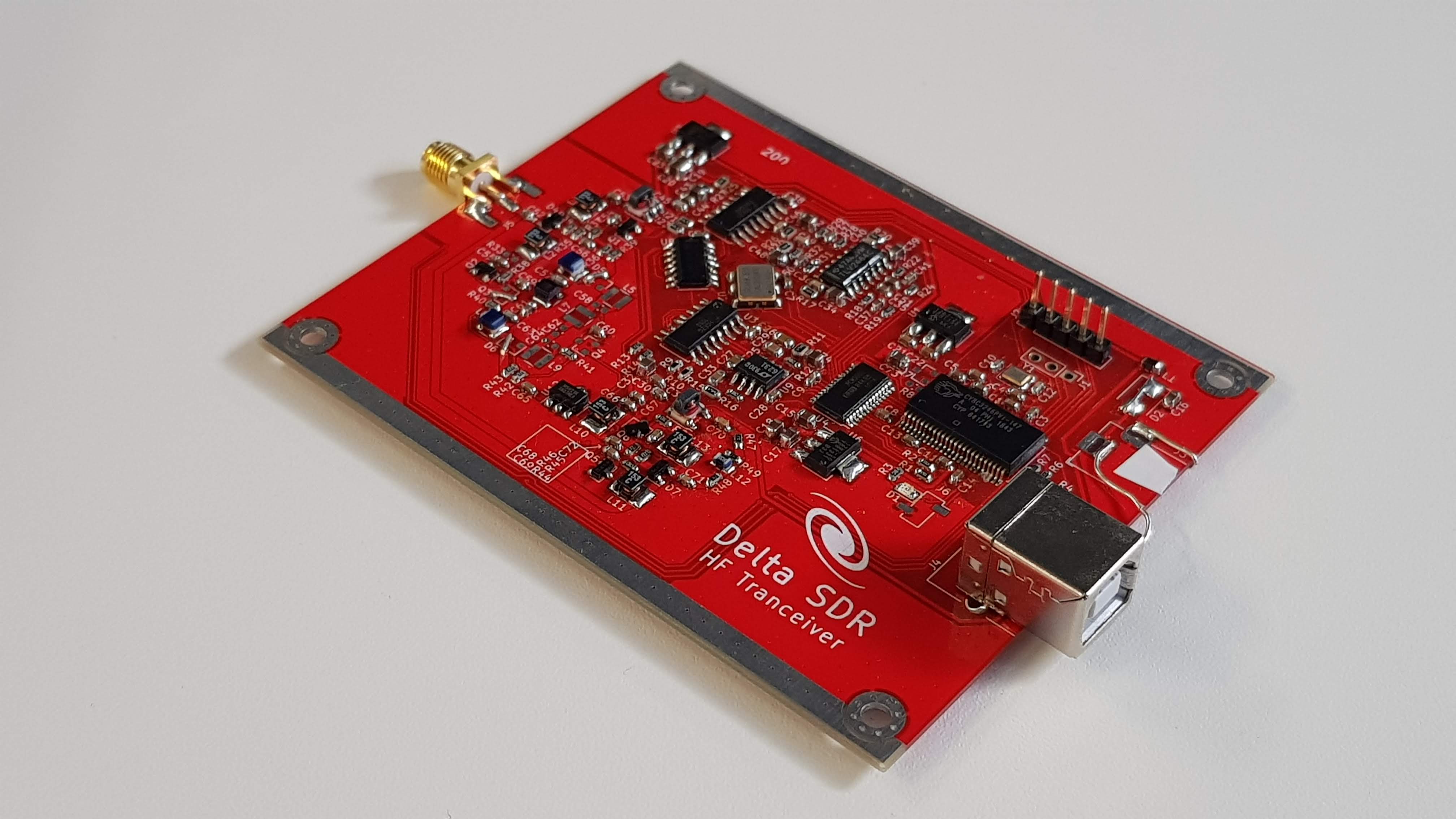

From the project
HF Software Defined Radio Transceiver that includes ADC and DAC circuits. No soundcard is needed. Board communicates only trough one USB cable.
- 96kHz digital I/Q interface. - more then 80dB dynamic range. - DG8SAQ/PE0FKO/SoftRock control interface. - Open Source firmware (https://github.com/AE9RB/peaberry) - SWD/JTAG port.
ToDo: - Change SMA and USB footprints - Add PA - Implement band switching
Based on: AE9RB Peaberry SDR and RS-HFIQ Transceiver
Main components on the DeltaSDR
DeltaSDR bill of materials (BOM)
173 components, 56 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP1703T-3302E/DB | SOT-223 | U1 |
| 1 | Si570 | Oscillator_SMD_SI570_SI571_Standard | U2 |
| 2 | SN74CBT3253 | SOIC-16_3.9x9.9mm_P1.27mm | U3, U11 |
| 1 | PCM3060 | TSSOP-28_4.4x9.7mm_P0.65mm | U4 |
| 1 | CY8C3246PVI-147 | SSOP-48_7.5x15.9mm_P0.635mm | U5 |
| 2 | MCP1703T-5002E/DB | SOT-223 | U6, U7 |
| 1 | 74HC74 | SOIC-14_3.9x8.7mm_P1.27mm | U8 |
| 1 | LT6231CSB | SOIC-8_3.9x4.9mm_P1.27mm | U9 |
| 1 | TLV2464CD | SOIC-14_3.9x8.7mm_P1.27mm | U10 |
| 1 | MMG3H21NT1 | SOT-89-3 | U12 |
| 6 | BSS123 | SOT-23 | Q1, Q2, Q3, Q4, Q5, Q6 |
| 1 | MMBT3904 | SOT-23 | Q7 |
| 1 | Crystal_GND24 | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | Conn_01x03_Male | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | Conn_01x05_Male | PinHeader_1x05_P2.54mm_Vertical | J2 |
| 1 | Barrel_Jack | BarrelJack_Horizontal | J3 |
| 1 | USB_A | USB_B_TE_5787834_Vertical | J4 |
| 1 | Conn_Coaxial | SMA_Amphenol_132289_EdgeMount | J5 |
| 1 | Conn_01x02_Male | PinSocket_1x02_P2.54mm_Vertical_SMD_Pin1Right | J6 |
| 2 | Transformer_1P_SS | Transformer_MACOM_SM-22 | T1, T2 |
Show 36 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LED | LED_0805_2012Metric | D1 |
| 1 | D | D_SMB | D2 |
| 1 | PRTR5V0U2X | SOT-143 | D3 |
| 4 | BAP64-06 | SOT-23 | D4, D5, D6, D7 |
| 1 | 74279220321 | L_0805_2012Metric | L1 |
| 5 | 15u | L_Taiyo-Yuden_NR-30xx_HandSoldering | L2, L3, L10, L11, L13 |
| 2 | 680n | L_Abracon_ASPI-3012S | L4, L8 |
| 2 | 1u | L_Abracon_ASPI-3012S | L5, L9 |
| 1 | 3u3 | L_Abracon_ASPI-3012S | L6 |
| 1 | 6u8 | L_Abracon_ASPI-3012S | L7 |
| 1 | 390n | L_0805_2012Metric | L12 |
| 32 | 100n | C_0603_1608Metric | C1, C3, C5, C6, C7, C8, C9, C11 +24 |
| 5 | 1u | C_0603_1608Metric | C2, C4, C16, C21, C22 |
| 2 | 22p | C_0603_1608Metric | C10, C12 |
| 2 | 1u | C_0805_2012Metric | C15, C23 |
| 13 | 10u | C_0805_2012Metric | C17, C18, C19, C20, C32, C34, C39, C42 +5 |
| 4 | 10n | C_0603_1608Metric | C25, C26, C27, C33 |
| 4 | 1n | C_0603_1608Metric | C30, C45, C57, C63 |
| 4 | 22n | C_0603_1608Metric | C36, C40, C46, C49 |
| 4 | 100p | C_0603_1608Metric | C37, C41, C47, C50 |
| 2 | 1800p | C_0603_1608Metric | C58, C64 |
| 1 | 200p | C_0603_1608Metric | C61 |
| 1 | 270p | C_0603_1608Metric | C62 |
| 2 | 5n6 | C_0603_1608Metric | C70, C71 |
| 2 | 4K99 | R_0603_1608Metric | R1, R2 |
| 4 | 1k | R_0603_1608Metric | R3, R8, R12, R16 |
| 7 | 100k | R_0603_1608Metric | R4, R37, R38, R40, R41, R44, R50 |
| 9 | 10k | R_0603_1608Metric | R5, R18, R19, R22, R24, R28, R29, R31 +1 |
| 2 | 22R1 | R_0603_1608Metric | R6, R7 |
| 2 | 10R | R_0603_1608Metric | R9, R10 |
| 8 | 49R9 | R_0603_1608Metric | R11, R15, R17, R20, R21, R23, R26, R30 |
| 3 | 2K21 | R_0603_1608Metric | R13, R14, R27 |
| 1 | 3k32 | R_0603_1608Metric | R25 |
| 8 | 2k2 | R_0603_1608Metric | R34, R35, R36, R39, R42, R43, R45, R46 |
| 2 | 27R | R_0603_1608Metric | R47, R48 |
| 1 | 270R | R_0603_1608Metric | R49 |
DeltaSDR design files
The KiCad project lives in the cernohorsky/DeltaSDR repository on GitHub; these links point at the commit this page was built from.
- LayoutDeltaSDR.kicad_pcb
DeltaSDR: common questions
How big is the DeltaSDR PCB?
The DeltaSDR measures 100 × 80 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DeltaSDR?
173 components, from 56 distinct parts. The full bill of materials is listed on this page.
Where can I download the DeltaSDR design files?
From the cernohorsky/DeltaSDR repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the DeltaSDR design in my own project?
The repository has no license, so all rights stay with cernohorsky. Use it as a reference, and ask the author before reusing the design.
