SHEGO16-QMK-Hall-Effect-Macropad PCB layout, top view — open source RP2040/RP2350 board by Charading

About the SHEGO16-QMK-Hall-Effect-Macropad PCB

SHEGO16-QMK-Hall-Effect-Macropad is an open source RP2040/RP2350 PCB design by Charading, published on GitHub. It is a 2-layer board measuring 121.9 × 81 mm, with 120 components from 38 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AP2112K-3.3TRG1, USBLC6-2SC6, W25Q128JVS and SN74LV1T125DBV. By type, the board carries 25 LEDs, 20 capacitors, 11 resistors, 5 ICs, 4 connectors and 2 modules.

It belongs with the keyboards and sensors designs in this gallery.

From the project

An RP2040-powered 4x4 15 key macropad with a knob on the top row, that runs custom QMK firmware that allows analogue hall effect sensors to work, also has SOCD, works with VIA and SignalRGB

I cant find a Hall effect keyboard that i genuinely like that has all the features that i want so i thought to make one myself. Technically i am still in prototype phase for the 'endgame' board i yearn to have, this was a originally a little test board that I was making so I could figure out how to do firmware. I've been working months on end on this project with many pcbs and components surrounding me. The end goal is a 75% keyboard, knob, a tft screen that can play gifs, north facing RGB (my goodness i hate south facing), and magnetic switches with socd. Sadly I think it would be too…

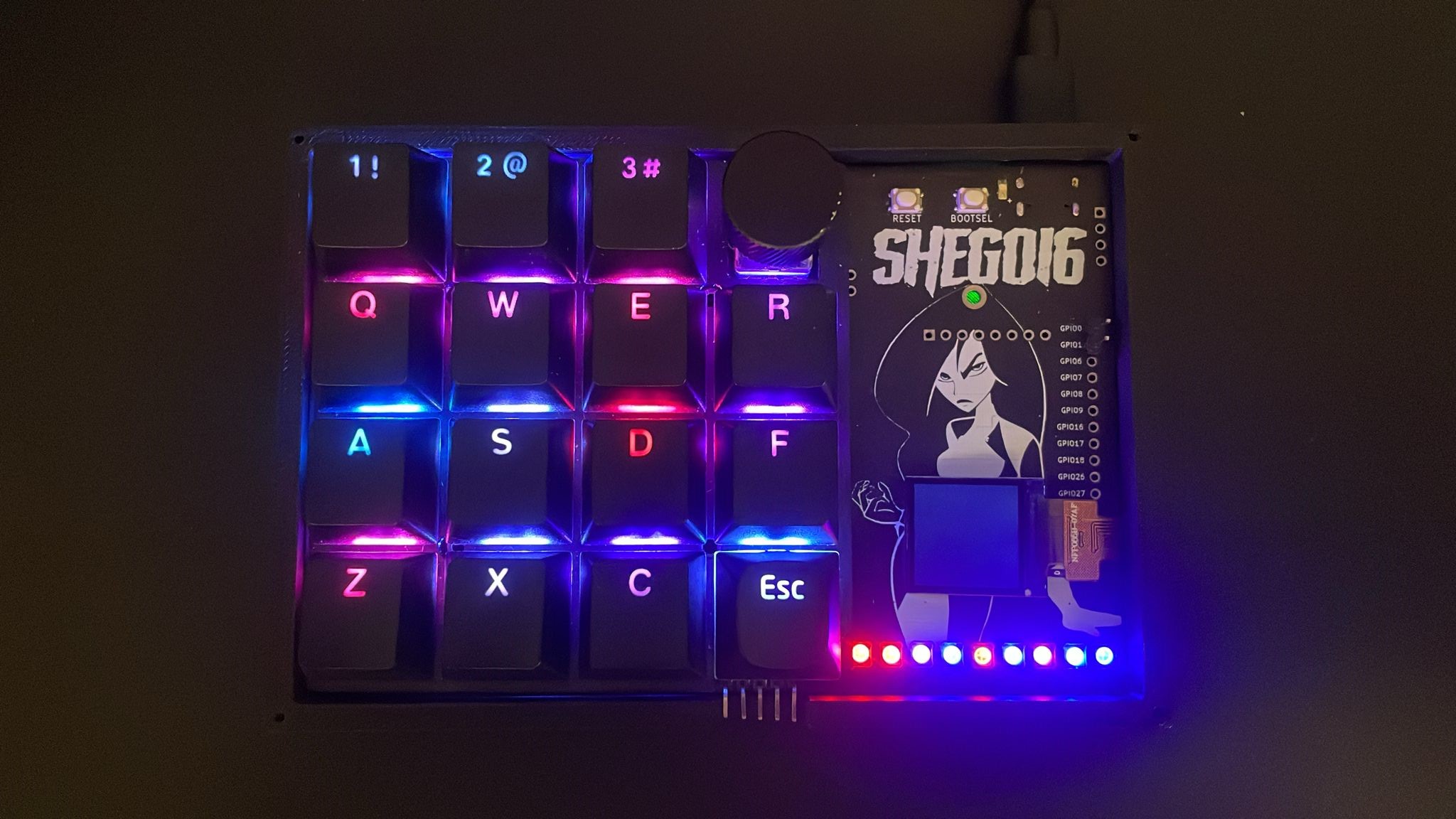

SHEGO16-QMK-Hall-Effect-Macropad, from the project README
From the project README

Main components on the SHEGO16-QMK-Hall-Effect-Macropad

AP2112K-3.3TRG1USBLC6-2SC6RP2040W25Q128JVSSN74LV1T125DBV

SHEGO16-QMK-Hall-Effect-Macropad bill of materials (BOM)

120 components, 38 distinct parts.

QtyPartRefs
1
AP2112K-3.3TRG1
U1
1
USBLC6-2SC6
U2
1
RP2040
U3
1
W25Q128JVS
U4
1
SN74LV1T125DBV
U5
2
CD74HC4067SM
M1, M2
1
ABMB-272-T3 12MHz
Y1
1
USB_C_Receptacle_16P
J1
1
TFT
J2
1
DEBUG
J3
1
TFT FPC
J5
26
0.1uF
AC1, AC2, AC3, AC4, AC5, AC6, AC7, AC8 +18
1
DATA
DATA1
1
GPIOs
EXP1
1
2.5A
F1
15
DRV5055A4xDBZxQ1
HE1, HE2, HE3, HE4, HE5, HE6, HE7, HE8 +7
1
PWR
PWR1
1
PWR
PWR2
1
RESET
SW1
1
BOOTSEL
SW2
Show 18 more
QtyPartRefs
25
SK6812MINI-E
AMB1, AMB2, AMB3, AMB4, AMB5, AMB6, AMB7, AMB8 +17
1
GREEN
D1
1
RED
D2
1
100R
FB1
1
10uH
L1
12
0.1uF
C1, C2, C3, C4, C5, C6, C9, C12 +4
1
4.7uF
C7
3
1uF
C8, C14, C15
2
10uF
C10, C11
2
30pF
C16, C17
2
5.1k
R1, R3
1
10k
R2
2
33
R4, R5
1
10k DNF
R6
1
1k
R7
1
5.1k
R8
1
1k
R9
2
330
R10, R11

SHEGO16-QMK-Hall-Effect-Macropad design files

The KiCad project lives in the Charading/SHEGO16-QMK-Hall-Effect-Macropad repository on GitHub; these links point at the commit this page was built from.

SHEGO16-QMK-Hall-Effect-Macropad: common questions

What microcontroller does the SHEGO16-QMK-Hall-Effect-Macropad use?

The SHEGO16-QMK-Hall-Effect-Macropad is built around the RP2040, from the RP2040/RP2350 family.

How big is the SHEGO16-QMK-Hall-Effect-Macropad PCB?

The SHEGO16-QMK-Hall-Effect-Macropad measures 121.9 × 81 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SHEGO16-QMK-Hall-Effect-Macropad?

120 components, from 38 distinct parts. The full bill of materials is listed on this page.

Where can I download the SHEGO16-QMK-Hall-Effect-Macropad design files?

From the Charading/SHEGO16-QMK-Hall-Effect-Macropad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the SHEGO16-QMK-Hall-Effect-Macropad design in my own project?

The repository has no license, so all rights stay with Charading. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the SHEGO16-QMK-Hall-Effect-Macropad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
