About the SmartWateringFlowerPot PCB

SmartWateringFlowerPot is an open source ESP32 PCB design by Chrissyuh, published on GitHub under the MIT license. It is a 2-layer board measuring 61.9 × 80.9 mm, with 25 components from 24 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N8, from the ESP32 family. Other key parts include the AP63203WU-7. By type, the board carries 8 resistors, 6 capacitors, 4 connectors, 3 diodes, 2 ICs and 1 transistor.

It belongs with the iot & wireless designs in this gallery.

From the project

ESP32-S3 KiCad hardware and bring-up firmware for a self-watering flower pot prototype

Custom ESP32-S3 controller hardware and bring-up firmware for a self-watering flower pot prototype.

This repository contains the KiCad design files, generated fabrication outputs, mechanical STEP exports, board renders, BOM notes, bring-up reports, and the first safe test firmware used on the assembled Board A prototype.

- Board A cost-down prototype has been fabricated and hand assembled for bring-up. - USB-C power, 3.3 V regulator, ESP32-S3 native USB flashing, status LEDs, moisture ADC, and pump-gate bring-up checks have been tested. - Current firmware is a supervised pump-test build…

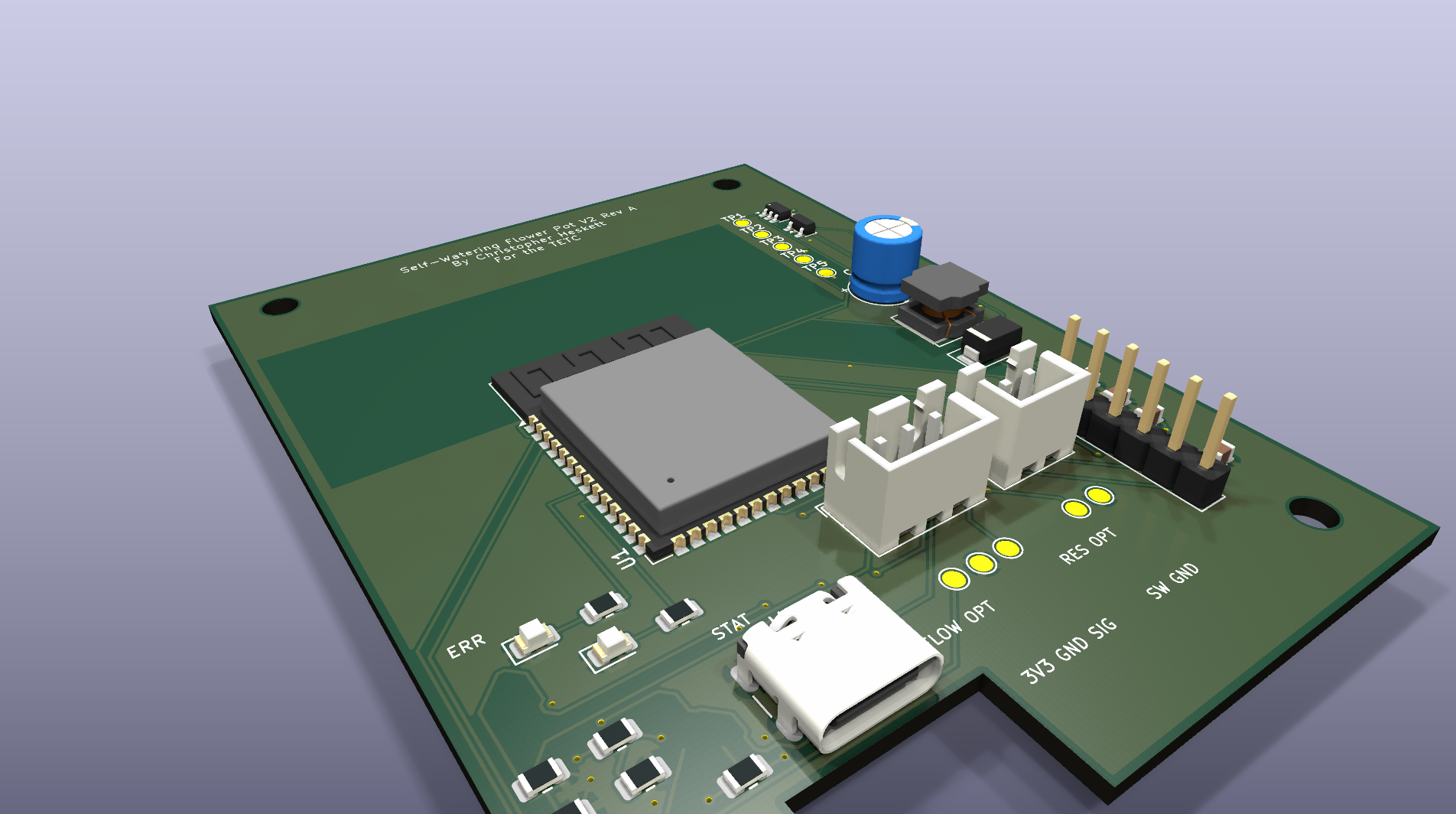

SmartWateringFlowerPot, from the project README
From the project README

Main components on the SmartWateringFlowerPot

ESP32-S3-WROOM-1-N8AP63203WU-7

SmartWateringFlowerPot bill of materials (BOM)

25 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1-N8
U1
1
AP63203WU-7
U2
1
AO3400A
Q1
1
USB-C 5V + USB2
J1
1
PUMP 5V
J2
1
MOISTURE
J3
1
DEBUG 3V3/GND/TX/RX/EN/BOOT
J7
1
SS34 flyback
D1
1
ERROR red
D2
1
STATUS green
D3
1
3.9uH shielded >=3A Isat
L1
1
10uF 10V X7R input
C1
2
22uF 6.3V X7R output
C2, C5
1
100nF 10V BST
C3
1
100nF ADC filter DNP
C4
1
100uF 10V pump bulk
C6
1
5.1k CC1
R1
1
5.1k CC2
R2
1
10k EN pullup
R3
1
220R gate
R4
Show 4 more
QtyPartRefs
1
100k pulldown
R5
1
1k ADC series
R10
1
330R error LED
R11
1
330R status LED
R12

SmartWateringFlowerPot design files

The KiCad project lives in the Chrissyuh/SmartWateringFlowerPot repository on GitHub; these links point at the commit this page was built from.

SmartWateringFlowerPot: common questions

What microcontroller does the SmartWateringFlowerPot use?

The SmartWateringFlowerPot is built around the ESP32-S3-WROOM-1-N8, from the ESP32 family.

How big is the SmartWateringFlowerPot PCB?

The SmartWateringFlowerPot measures 61.9 × 80.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SmartWateringFlowerPot?

25 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SmartWateringFlowerPot design files?

From the Chrissyuh/SmartWateringFlowerPot repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SmartWateringFlowerPot design in my own project?

Yes, under the terms of its MIT license, which Chrissyuh chose for the repository.

Can I test firmware for the SmartWateringFlowerPot without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
