About the ARGOS DEMO PCB

ARGOS DEMO is an open source PCB design by CNES, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 50 × 80 mm, with 85 components from 42 distinct parts.

Other key parts include the LTC4365DDB, TPS63900, 82400102 and FT231XQ. By type, the board carries 34 resistors, 16 capacitors, 9 diodes, 8 connectors, 6 inductors and 5 ICs.

It belongs with the usb & debug tools, iot & wireless and rf & radio designs in this gallery.

From the project

Demo board designed to use the ARRIBADA SMD module via USB to send ARGOS messages to the Kineis constellation.

Demonstration and evaluation board designed to operate the Arribada Argos SMD module via USB and transmit ARGOS uplink messages to the Kineis satellite constellation.

This project presents an Argos Transceiver Demonstration Board intended for the evaluation, validation, and operation of the Arribada Argos SMD module. The board provides a compact and robust hardware platform to transmit ARGOS uplink messages to the Kineis satellite constellation using a standard USB interface.

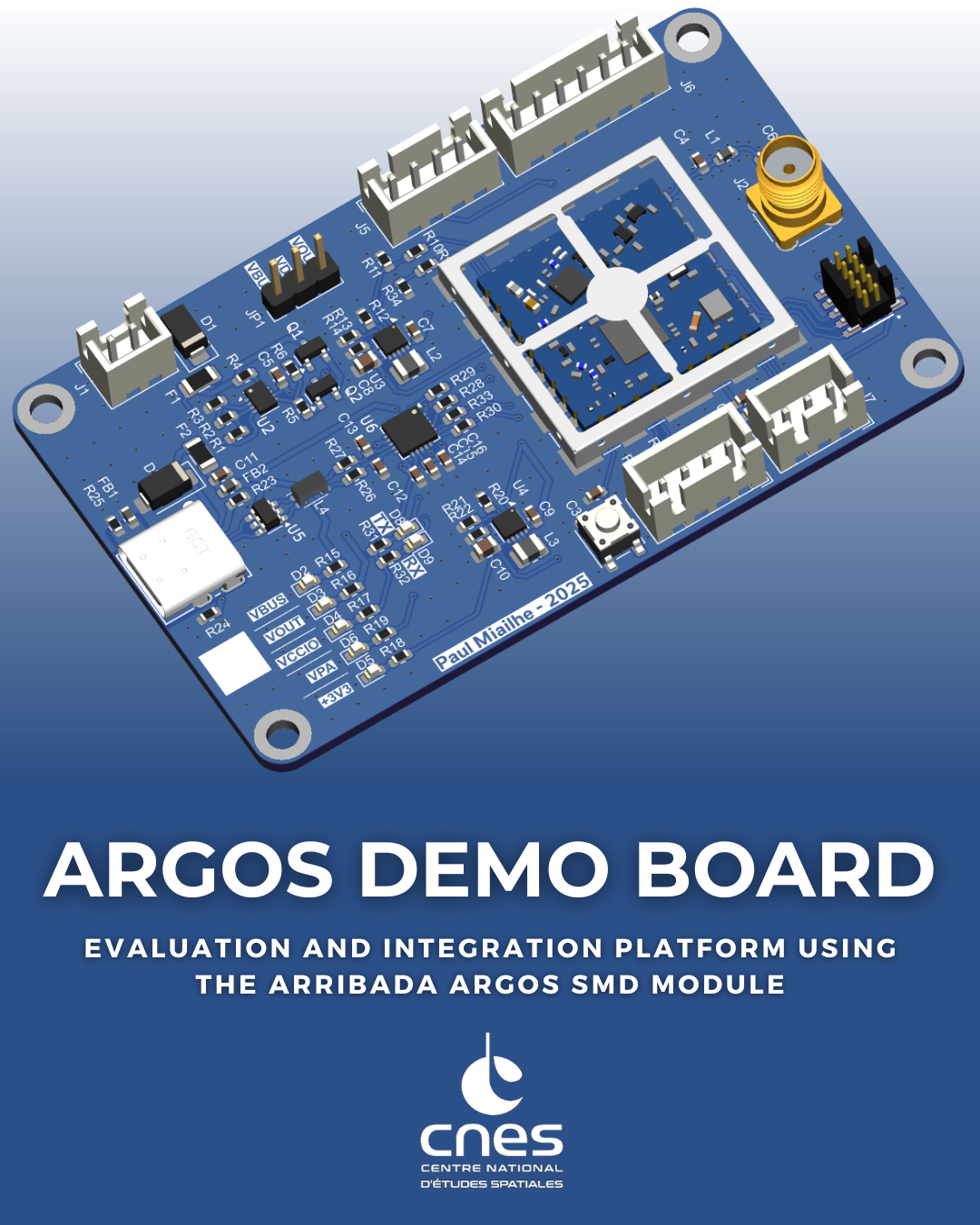

ARGOS DEMO, from the project README
From the project README

Main components on the ARGOS DEMO

LTC4365DDBTPS6390082400102FT231XQ

ARGOS DEMO bill of materials (BOM)

85 components, 42 distinct parts.

QtyPartRefs
1
LTC4365DDB
U2
2
TPS63900
Texas Instruments
U3, U4
1
82400102
Würth Elektronik
U5
1
FT231XQ
FTDI
U6
2
BSN20
DIODES INC.
Q1, Q2
1
B2B-XH-A
JST
J1
1
60312002114503
Würth Elektronik
J2
2
B4B-XH-A
JST
J3, J5
1
JTAG 10-PINS
Samtec
J4
1
B6B-XH-A
JST
J6
1
B3B-XH-A
JST
J7
1
USB4085-GF-A
GCT
J8
2
1206L035/16YR
Littelfuse
F1, F2
1
3610213126S
Wurth Elektronik
H4
1
42375-1246
Molex
JP1
1
PTS647
C&K Switches
SW1
2
SMAJ15CA
Littelfuse
D1, D7
7
LED_Small
D2, D3, D4, D5, D6, D8, D9
2
BLM18KG601SN1D
Murata
FB1, FB2
1
18nH
Murata
L1
Show 22 more
QtyPartRefs
2
2.2uH
Murata
L2, L3
1
744232090
Würth Elektronik
L4
5
100nF
C1, C3, C5, C14, C15
2
4.7uF
C2, C16
1
3.6pF
C4
1
NC
C6
2
10uF
Murata
C7, C9
2
22uF
Murata
C8, C10
1
10nF
C11
2
47pF
C12, C13
1
1.2M
R1
2
150K
R2, R3
1
100k
R4
8
0R
R5, R6, R9, R10, R13, R14, R21, R22
4
10K
R7, R8, R11, R34
2
36.5K
R12, R20
2
470R
R15, R16
5
270R
R17, R18, R19, R31, R32
2
5.1K
R23, R24
1
NC
R25
2
27R
R26, R27
4
10R
R28, R29, R30, R33

ARGOS DEMO design files

The KiCad project lives in the CNES/argos-demo-board repository on GitHub; these links point at the commit this page was built from.

ARGOS DEMO: common questions

How big is the ARGOS DEMO PCB?

The ARGOS DEMO measures 50 × 80 mm, has 4 copper layers and is 1.61668 mm thick.

How many components are on the ARGOS DEMO?

85 components, from 42 distinct parts. The full bill of materials is listed on this page.

Where can I download the ARGOS DEMO design files?

From the CNES/argos-demo-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ARGOS DEMO design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which CNES chose for the repository.
