Diff Expansion

computergeek1507·PB_16·Diff_Expansion/Diff_Expansion.kicad_pcb

Diff Expansion PCB layout, top view — open source board by computergeek1507
Simulate this board

About the Diff Expansion PCB

Diff Expansion is an open source PCB design by computergeek1507, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 84.3 × 84.3 mm, with 20 components from 8 distinct parts.

Other key parts include the AM26C31IN. By type, the board carries 6 connectors, 5 resistors, 4 ICs, 4 capacitors and 1 diode.

From the project

Open source FPP PB16 Pixel Controller

This documentation describes Open Hardware and is licensed under the CERN Open Hardware License Version 2 - Strongly Reciprocal. (CERN-OHL-S)

You may redistribute and modify this documentation under the terms of the CERN OHL-S-v2 (https://ohwr.org/cernohls_v2.txt). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v2-S for applicable conditions

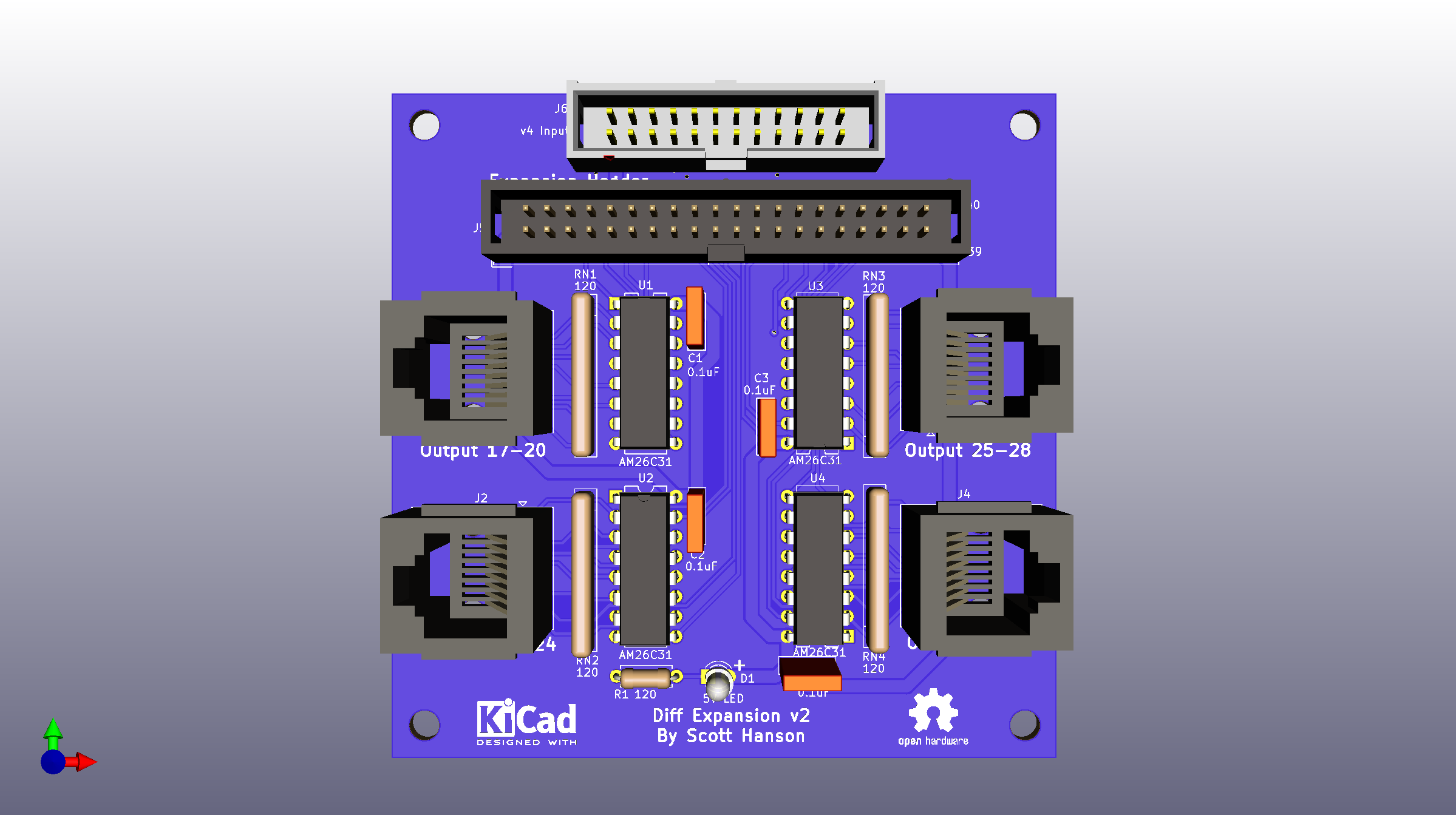

Diff Expansion, from the project README
From the project README

Main components on the Diff Expansion

AM26C31IN

Diff Expansion bill of materials (BOM)

20 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
AM26C31IN
AM26C31
U1, U2, U3, U4
4
A-2014-2-4-R
RJ45
J1, J2, J3, J4
1
SBH11-PBPC-D20-ST-BK
Expansion Header
J5
1
302-S241
v4 Input
J6
1
WP3A8GD
5V LED
D1
4
SR215C104KARTR1
0.1uF
C1, C2, C3, C4
1
CF14JT120R
120
R1
4
4608X-102-121LF
120
RN1, RN2, RN3, RN4

Diff Expansion design files

The KiCad project lives in the computergeek1507/PB_16 repository on GitHub; these links point at the commit this page was built from.

Diff Expansion: common questions

How big is the Diff Expansion PCB?

The Diff Expansion measures 84.3 × 84.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Diff Expansion?

20 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Diff Expansion design files?

From the computergeek1507/PB_16 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Diff Expansion design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which computergeek1507 chose for the repository.
