PB 16

computergeek1507·PB_16·PB_16v1/PB_16.kicad_pcb

PB 16 PCB layout, top view — open source board by computergeek1507
Simulate this board

About the PB 16 PCB

PB 16 is an open source PCB design by computergeek1507, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 148.1 × 102.6 mm, with 83 components from 52 distinct parts.

Other key parts include the POCKETBEAGLE-SC-569, UNIVERSE5V, SN74HCT245N, UA9638CP and FT24C256A-UDR-B. By type, the board carries 29 connectors, 19 fuses, 11 resistors, 8 capacitors, 6 ICs and 6 diodes.

It belongs with the displays & leds designs in this gallery.

From the project

Open source FPP PB16 Pixel Controller

This documentation describes Open Hardware and is licensed under the CERN Open Hardware License Version 2 - Strongly Reciprocal. (CERN-OHL-S)

You may redistribute and modify this documentation under the terms of the CERN OHL-S-v2 (https://ohwr.org/cernohls_v2.txt). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v2-S for applicable conditions

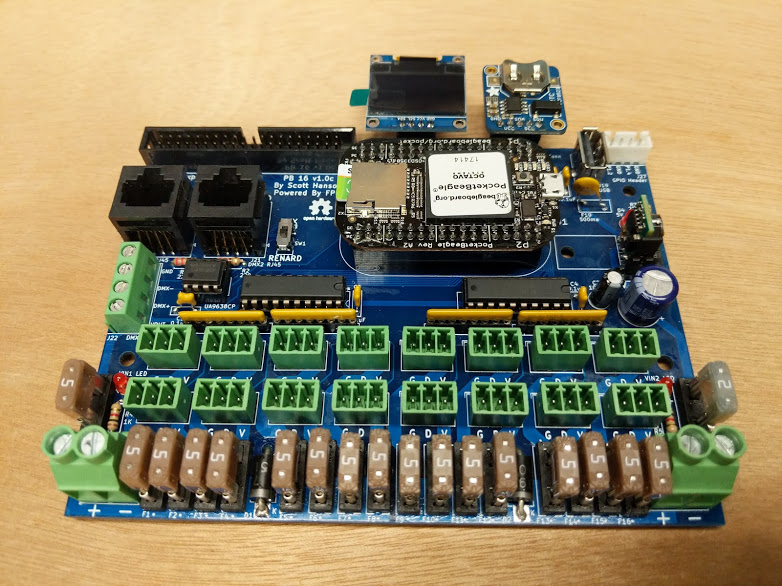

PB 16, from the project README
From the project README

Main components on the PB 16

POCKETBEAGLE-SC-569UNIVERSE5VSN74HCT245NUA9638CPFT24C256A-UDR-B

PB 16 bill of materials (BOM)

83 components, 52 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
POCKETBEAGLE-SC-569
U1
1
UNIVERSE5V
Universe5V
U2
2
SN74HCT245N
U3, U4
1
UA9638CP
U5
1
FT24C256A-UDR-B
24L256
U6
1
1843619/OSTTJ0311530
String1
J1
1
1843619/OSTTJ0311530
String2
J2
1
1843619/OSTTJ0311530
String3
J3
1
1843619/OSTTJ0311530
String4
J4
1
1843619/OSTTJ0311530
String5
J5
1
1843619/OSTTJ0311530
String6
J6
1
1843619/OSTTJ0311530
String7
J7
1
1843619/OSTTJ0311530
String8
J8
1
1843619/OSTTJ0311530
String9
J9
1
1843619/OSTTJ0311530
String10
J10
1
1843619/OSTTJ0311530
String11
J11
1
1843619/OSTTJ0311530
String12
J12
1
1843619/OSTTJ0311530
String13
J13
1
1843619/OSTTJ0311530
String14
J14
1
1843619/OSTTJ0311530
String15
J15
Show 32 more
QtyPartRefs
1
1843619/OSTTJ0311530
String16
J16
1
OSTYK51102030
Power In Left
J17
1
OSTYK51102030
Power In Right
J18
1
1050570001
USB
J19
1
A-2014-2-4-R
DMX1 RJ45
J20
1
A-2014-2-4-R
DMX2 RJ45
J21
1
1729034
DMX2
J22
1
61300311121
VIN Voltage
J23
1
SBH11-PBPC-D20-ST-BK
Expansion Header
J24
1
61300511121
RTC Conn
J25
1
PPTC041LFBN-RC
OLED Select
J26
1
B4B-XH-A(LF)(SN)
GPIO Header
J27
1
1727010
Aux Pwr
J28
1
61300311121
VIN Select
J29
18
3544-2
F1, F2, F3, F4, F5, F6, F7, F8 +10
1
RXEF050-2
500ma
F19
1
JS202011CQN
DMX_Renard_Select
SW1
1
JS202011CQN
DMX_LOR_Select
SW3
1
1825910-6
Enter BTN
SW4
1
1825910-6
Down BTN
SW5
2
SB5100-T
D1, D2
1
1N5338BRLG
Zener 5.1V
D3
1
WP3A8GD
5V LED
D4
1
WP3A8GD
VIN1 LED
D5
1
WP3A8GD
VIN2 LED
D6
1
ECA-1HM221
220uF
C1
1
16ZLH100MEFC5X11
100uF
C2
6
SR215C104KARTR1
0.1uF
C3, C4, C5, C6, C7, C8
3
CF14JT120R
120
R1, R2, R3
2
CF14JT1K00
1K
R4, R5
2
CF14JT4K70
4.7K
R6, R7
4
4608X-102-330LF
33
RN1, RN2, RN3, RN4

PB 16 design files

The KiCad project lives in the computergeek1507/PB_16 repository on GitHub; these links point at the commit this page was built from.

PB 16: common questions

How big is the PB 16 PCB?

The PB 16 measures 148.1 × 102.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PB 16?

83 components, from 52 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PB 16 design files?

From the computergeek1507/PB_16 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PB 16 design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which computergeek1507 chose for the repository.
