Pi CM4 16

computergeek1507·PB_16·Pi_CM4_16_SMD/Pi_CM4_16.kicad_pcb

Pi CM4 16 PCB layout, top view — open source Raspberry Pi board by computergeek1507
Simulate this board

About the Pi CM4 16 PCB

Pi CM4 16 is an open source Raspberry Pi PCB design by computergeek1507, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 142.1 × 106 mm, with 113 components from 66 distinct parts.

Its main chip is the 2x DF40C-100DS-0.4V, from the Raspberry Pi family. Other key parts include the UNIVERSE5V, UA9638CP, 24LC256T-I/SN, 74LVC1G07 and SN74HCT245NSR. By type, the board carries 36 resistors, 27 connectors, 18 fuses, 12 capacitors, 8 ICs and 6 diodes.

From the project

Open source FPP PB16 Pixel Controller

This documentation describes Open Hardware and is licensed under the CERN Open Hardware Licence Version 2 - Strongly Reciprocal. (CERN-OHL-S)

You may redistribute and modify this documentation under the terms of the CERN OHL-S-v2 (https://ohwr.org/cernohls_v2.txt). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v2-S for applicable conditions

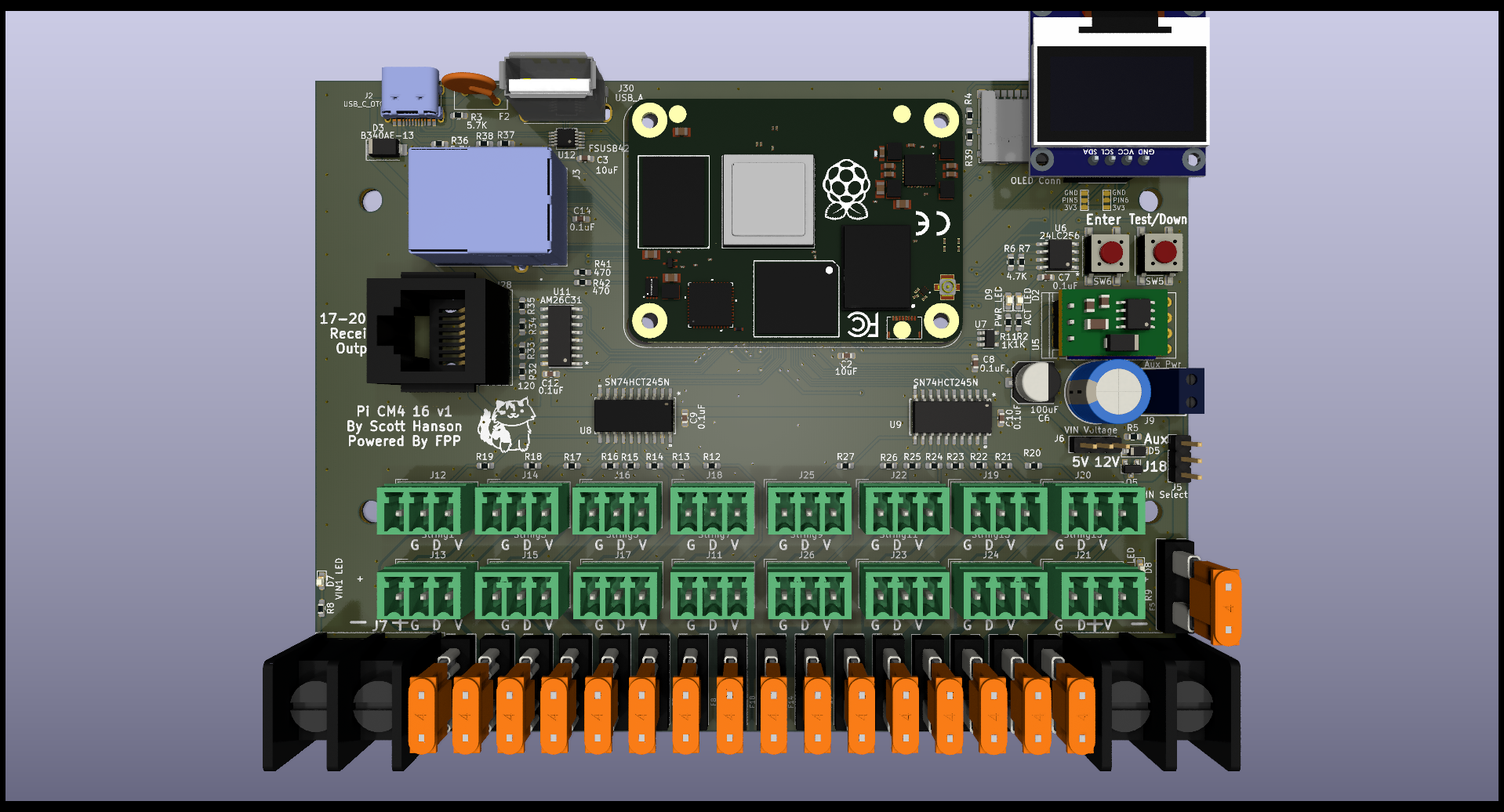

Pi CM4 16, from the project README
From the project README

Main components on the Pi CM4 16

UNIVERSE5VUA9638CP24LC256T-I/SN74LVC1G07SN74HCT245NSRAM26C31IDRFSUSB42MUX

Pi CM4 16 bill of materials (BOM)

113 components, 66 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
UNIVERSE5V
RT9742AGJ5F
U2
1
UA9638CP
Universe5V
U5
1
24LC256T-I/SN
24LC256
U6
1
74LVC1G07
U7
2
SN74HCT245NSR
SN74HCT245N
U8, U9
1
AM26C31IDR
AM26C31
U11
1
FSUSB42MUX
U12
1
DMP3056L-7
DMP3056L
Q5
1
STRING2
USB_C_OTG
J2
1
STRING3
ARJM11C7-502-AB-ER2-T
J3
1
61300311121
VIN Select
J5
1
61300311121
VIN Voltage
J6
1
OSTYK51102030
Power In Left
J7
1
OSTYK51102030
Power In Right
J8
1
1727010
Aux Pwr
J9
1
PPTC041LFBN-RC
OLED Conn
J10
1
1843619/OSTTJ0311530
String8
J11
1
1843619/OSTTJ0311530
String1
J12
1
1843619/OSTTJ0311530
String2
J13
1
1843619/OSTTJ0311530
String3
J14
Show 46 more
QtyPartRefs
1
1843619/OSTTJ0311530
String4
J15
1
1843619/OSTTJ0311530
String5
J16
1
1843619/OSTTJ0311530
String6
J17
1
1843619/OSTTJ0311530
String7
J18
1
1843619/OSTTJ0311530
String13
J19
1
1843619/OSTTJ0311530
String15
J20
1
1843619/OSTTJ0311530
String16
J21
1
1843619/OSTTJ0311530
String11
J22
1
1843619/OSTTJ0311530
String12
J23
1
1843619/OSTTJ0311530
String14
J24
1
1843619/OSTTJ0311530
String9
J25
1
1843619/OSTTJ0311530
String10
J26
1
X05ADIWA1DY1022
Diff Out
J28
1
Micro_SD_Card_Det
J29
1
USB_A
J30
1
3544-2
500ma
F2
17
3544-2
F5, F6, F7, F8, F9, F10, F11, F12 +9
1
2x DF40C-100DS-0.4V
ComputeModule4-CM4
Hirose
Module5
1
PIN_3_JMP
PIN5
1
PIN_4_JMP
PIN6
1
PTS645SL50SMTR92 LFS
Down BTN
SW5
1
PTS645SL50SMTR92 LFS
Enter BTN
SW6
1
LTST-C190KRKT
ACT LED
D2
1
B340AE-13
D3
1
MMSZ5240B-7-F
Zener 10V
D5
1
LTST-C190KRKT
VIN1 LED
D7
1
LTST-C190KRKT
VIN2 LED
D8
1
LTST-C190KRKT
PWR LED
D9
1
100UF
10uF
C2
2
0.1UF
10uF
C3, C4
1
ECA-1HM221
220uF
C5
1
UWX1C101MCL1GB
100uF
C6
7
CL10B104KB8NNWC
0.1uF
C7, C8, C9, C10, C12, C13, C14
1
120
1K
R2
1
120
5.7K
R3
2
NP
R4, R39
1
RT0603BRD07100KL
100K
R5
2
RC0603JR-074K7L
4.7K
R6, R7
2
2K
R8, R9
1
1K
R11
16
RC0603FR-0733RL
33
R12, R13, R14, R15, R16, R17, R18, R19 +8
4
CRGCQ0603F120R
120
R32, R33, R34, R35
1
5.7K
R36
2
2.2K
R37, R38
1
12K
R40
2
470
R41, R42

Pi CM4 16 design files

The KiCad project lives in the computergeek1507/PB_16 repository on GitHub; these links point at the commit this page was built from.

Pi CM4 16: common questions

What microcontroller does the Pi CM4 16 use?

The Pi CM4 16 is built around the 2x DF40C-100DS-0.4V, from the Raspberry Pi family.

How big is the Pi CM4 16 PCB?

The Pi CM4 16 measures 142.1 × 106 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pi CM4 16?

113 components, from 66 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pi CM4 16 design files?

From the computergeek1507/PB_16 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pi CM4 16 design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which computergeek1507 chose for the repository.

Can I test firmware for the Pi CM4 16 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
