About the SM Receiver PCB

SM Receiver is an open source RP2040/RP2350 PCB design by computergeek1507, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 83.2 × 71.4 mm, with 53 components from 30 distinct parts.

Its main chip is the 2648-SC0915CT-ND, from the RP2040/RP2350 family. Other key parts include the LM1117MPX-50NOPB, AM26C32INSR and 74AHCT1G125W5-7. By type, the board carries 19 resistors, 10 connectors, 7 ICs, 5 capacitors, 4 fuses and 4 switches.

From the project

Open source FPP PB16 Pixel Controller

This documentation describes Open Hardware and is licensed under the CERN Open Hardware License Version 2 - Strongly Reciprocal. (CERN-OHL-S)

You may redistribute and modify this documentation under the terms of the CERN OHL-S-v2 (https://ohwr.org/cernohls_v2.txt). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v2-S for applicable conditions

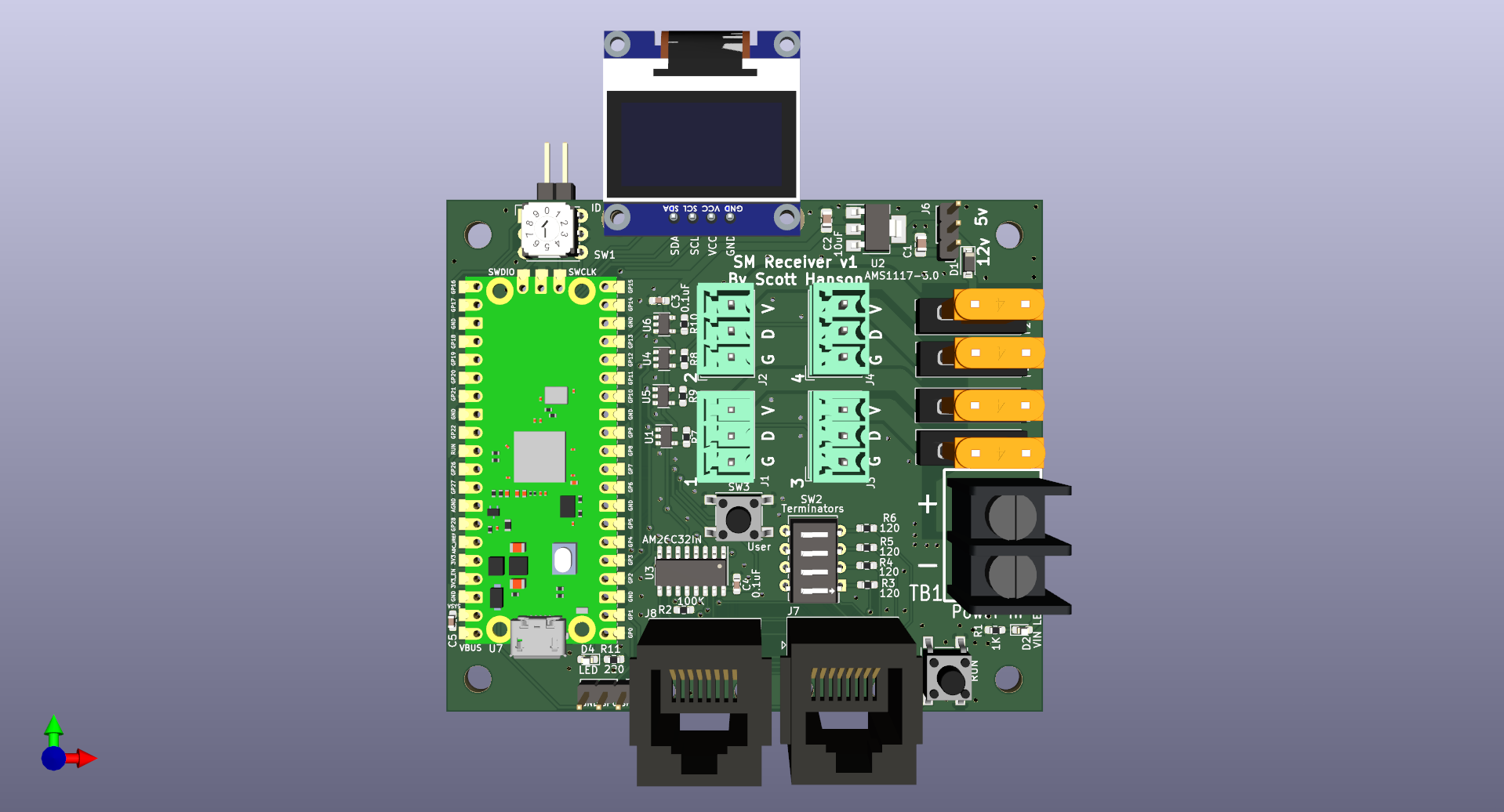

SM Receiver, from the project README
From the project README

Main components on the SM Receiver

2648-SC0915CT-NDLM1117MPX-50NOPBAM26C32INSR74AHCT1G125W5-7

SM Receiver bill of materials (BOM)

53 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
2648-SC0915CT-ND
Pico
U1
1
LM1117MPX-50NOPB
AMS1117-5.0
U2
1
AM26C32INSR
AM26C32IN
U3
4
74AHCT1G125W5-7
74AHCT1G125
U4, U5, U6, U7
1
1843619/OSTTJ0311530
String1
J1
1
1843619/OSTTJ0311530
String2
J2
1
1843619/OSTTJ0311530
String3
J3
1
1843619/OSTTJ0311530
String4
J4
1
PPTC041LFBN-RC
OLED
J5
1
61300311121
VIN_Voltage
J6
2
A-2014-2-4-R
RJ45
J7, J8
1
61300311121
Debug
J9
1
61300211121
SWD
J10
4
3544-2
F1, F2, F3, F4
1
SD-2010
ID
SW1
1
DS04-254-1L-04BK
Terminators
SW2
1
PTS645SL50SMTR92 LFS
User
SW3
1
PTS645SL50SMTR92 LFS
RUN
SW4
1
4DB-P108-02
Power In
TB1
1
B5819W-TP
B5819W
D1
Show 10 more
QtyPartRefs
1
150080RS75000
VIN LED
D2
1
150080RS75000
LED
D4
2
GRM21BR61E106KA73L
10uF
C1, C2
3
CL10B104KB8NNWC
0.1uF
C3, C4, C5
1
RC0603FR-071KL
1K
R1
1
RT0603BRD07100KL
100K
R2
4
CRGCQ0603F120R
120
R3, R4, R5, R6
4
RC0603JR-0733RL
33ohm
R7, R8, R9, R10
1
RMCF0603FT220R
220
R11
8
RC0603FR-07100RL
100ohm
R12, R13, R14, R15, R16, R17, R18, R19

SM Receiver design files

The KiCad project lives in the computergeek1507/PB_16 repository on GitHub; these links point at the commit this page was built from.

SM Receiver: common questions

What microcontroller does the SM Receiver use?

The SM Receiver is built around the 2648-SC0915CT-ND, from the RP2040/RP2350 family.

How big is the SM Receiver PCB?

The SM Receiver measures 83.2 × 71.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SM Receiver?

53 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SM Receiver design files?

From the computergeek1507/PB_16 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SM Receiver design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which computergeek1507 chose for the repository.

Can I test firmware for the SM Receiver without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
