Teensy 16
About the Teensy 16 PCB
Teensy 16 is an open source NXP PCB design by computergeek1507, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 148.8 × 92.6 mm, with 88 components from 48 distinct parts.
Its main chip is the TEENSY4.1, from the NXP family. Other key parts include the AMS1117-5.0, SN74HC245PWR and UA9638CDR. By type, the board carries 27 resistors, 26 connectors, 18 fuses, 5 ICs, 5 capacitors and 4 diodes.
From the project

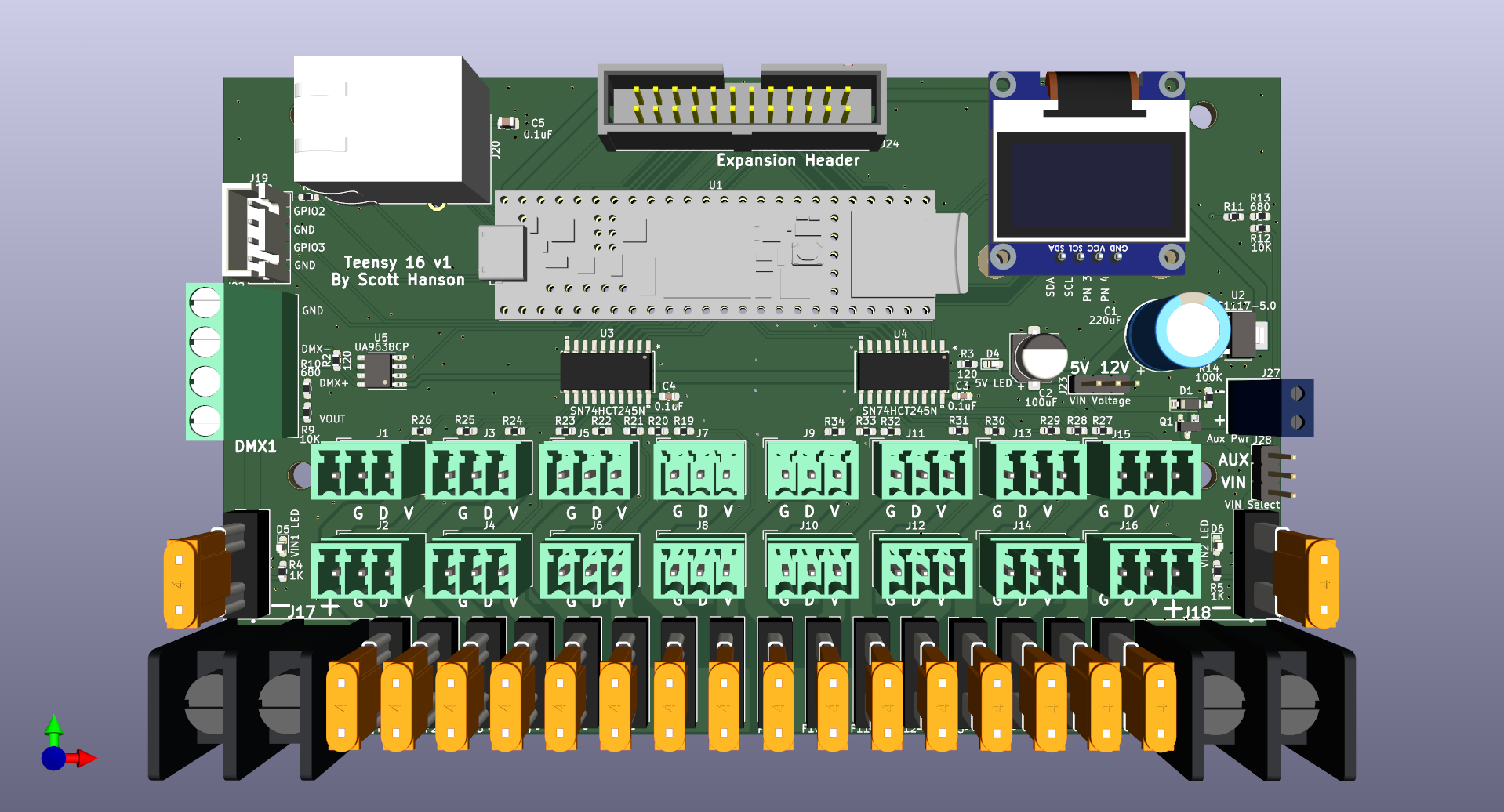

Open source FPP PB16 Pixel Controller
This documentation describes Open Hardware and is licensed under the CERN Open Hardware License Version 2 - Strongly Reciprocal. (CERN-OHL-S)
You may redistribute and modify this documentation under the terms of the CERN OHL-S-v2 (https://ohwr.org/cernohls_v2.txt). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v2-S for applicable conditions
Main components on the Teensy 16
Teensy 16 bill of materials (BOM)
88 components, 48 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TEENSY4.1 Teensy4.1 | Teensy41 | U1 |
| 1 | AMS1117-5.0 | SOT-223-3_TabPin2 | U2 |
| 2 | SN74HC245PWR SN74HCT245N | SN74HCT245NSR | U3, U4 |
| 1 | UA9638CDR UA9638CP | SOIC-8_3.9x4.9mm_P1.27mm | U5 |
| 1 | DMP3056L-7 DMP3056L | SOT-23 | Q1 |
| 1 | 1843619/OSTTJ0311530 String1 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J1 |
| 1 | 1843619/OSTTJ0311530 String2 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J2 |
| 1 | 1843619/OSTTJ0311530 String3 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J3 |
| 1 | 1843619/OSTTJ0311530 String4 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J4 |
| 1 | 1843619/OSTTJ0311530 String5 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J5 |
| 1 | 1843619/OSTTJ0311530 String6 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J6 |
| 1 | 1843619/OSTTJ0311530 String7 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J7 |
| 1 | 1843619/OSTTJ0311530 String8 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J8 |
| 1 | 1843619/OSTTJ0311530 String9 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J9 |
| 1 | 1843619/OSTTJ0311530 String10 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J10 |
| 1 | 1843619/OSTTJ0311530 String11 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J11 |
| 1 | 1843619/OSTTJ0311530 String12 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J12 |
| 1 | 1843619/OSTTJ0311530 String13 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J13 |
| 1 | 1843619/OSTTJ0311530 String14 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J14 |
| 1 | 1843619/OSTTJ0311530 String15 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J15 |
Show 28 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1843619/OSTTJ0311530 String16 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J16 |
| 1 | OSTYK51102030 Power In Left | BARRIER_BLOCK_1ROW_2POS_P9.5MM | J17 |
| 1 | OSTYK51102030 Power In Right | BARRIER_BLOCK_1ROW_2POS_P9.5MM | J18 |
| 1 | B4B-XH-A(LF)(SN) GPIO | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J19 |
| 1 | RJ45_LED | RJ45_Cetus_J1B1211CCD_Horizontal | J20 |
| 1 | 1729034 DMX1 | TerminalBlock_Phoenix_MKDS-1,5-4_1x04_P5.00mm_Horizontal | J22 |
| 1 | 61300311121 VIN Voltage | PinHeader_1x03_P2.54mm_Vertical | J23 |
| 1 | 302-S241 Expansion Header | OST_302-S241 | J24 |
| 1 | PPTC041LFBN-RC OLED | OLED-SSD1306-128X64-I2C-THT | J26 |
| 1 | 1727010 Aux Pwr | PHOENIX_MKDS1_2-3.81 | J27 |
| 1 | 61300311121 VIN Select | PinHeader_1x03_P2.54mm_Vertical | J28 |
| 18 | 3544-2 | FUSE_3544-2 | F1, F2, F3, F4, F5, F6, F7, F8 +10 |
| 2 | JUMPER | SolderJumper-3_P1.3mm_Bridged12_Pad1.0x1.5mm | PIN3, PIN4 |
| 1 | MMSZ5240B-7-F Zener 10V | D_SOD-123 | D1 |
| 1 | LTST-C190KRKT 5V LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D4 |
| 1 | LTST-C190KRKT VIN1 LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D5 |
| 1 | LTST-C190KRKT VIN2 LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D6 |
| 1 | ECA-1HM221 220uF | CP_Radial_D10.0mm_P5.00mm | C1 |
| 1 | UWX1C101MCL1GB 100uF | CP_Elec_6.3x5.4_Nichicon | C2 |
| 2 | CL10B104KB8NNWC 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3, C4 |
| 1 | 0.1UF 0.1uF | C_0805_2012Metric | C5 |
| 2 | CRGCQ0603F120R 120 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3 |
| 2 | RC0603FR-071KL 1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4, R5 |
| 2 | RMCF0603FT100R 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R8, R11 |
| 2 | RC0603FR-0710KL 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R9, R12 |
| 2 | RC0603FR-07680RL 680 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10, R13 |
| 1 | RT0603BRD07100KL 100K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R14 |
| 16 | CN34J330CT 33 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R19, R20, R21, R22, R23, R24, R25, R26 +8 |
Teensy 16 design files
The KiCad project lives in the computergeek1507/PB_16 repository on GitHub; these links point at the commit this page was built from.
Teensy 16: common questions
What microcontroller does the Teensy 16 use?
The Teensy 16 is built around the TEENSY4.1, from the NXP family.
How big is the Teensy 16 PCB?
The Teensy 16 measures 148.8 × 92.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Teensy 16?
88 components, from 48 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Teensy 16 design files?
From the computergeek1507/PB_16 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Teensy 16 design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which computergeek1507 chose for the repository.
Can I test firmware for the Teensy 16 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
