Pi Zero W 16

computergeek1507·PB_16·Pi_Zero_W_16_SMD/Pi_Zero_W_16.kicad_pcb

Pi Zero W 16 PCB layout, top view — open source board by computergeek1507
Simulate this board

About the Pi Zero W 16 PCB

Pi Zero W 16 is an open source PCB design by computergeek1507, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 142.1 × 93 mm, with 92 components from 44 distinct parts.

Other key parts include the SN74HCT245NSR, AM26C31IDR, 24LC256T-I/SN and UNIVERSE5V. By type, the board carries 30 resistors, 24 connectors, 17 fuses, 8 capacitors, 6 ICs and 4 diodes.

From the project

Open source FPP PB16 Pixel Controller

This documentation describes Open Hardware and is licensed under the CERN Open Hardware Licence Version 2 - Strongly Reciprocal. (CERN-OHL-S)

You may redistribute and modify this documentation under the terms of the CERN OHL-S-v2 (https://ohwr.org/cernohls_v2.txt). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v2-S for applicable conditions

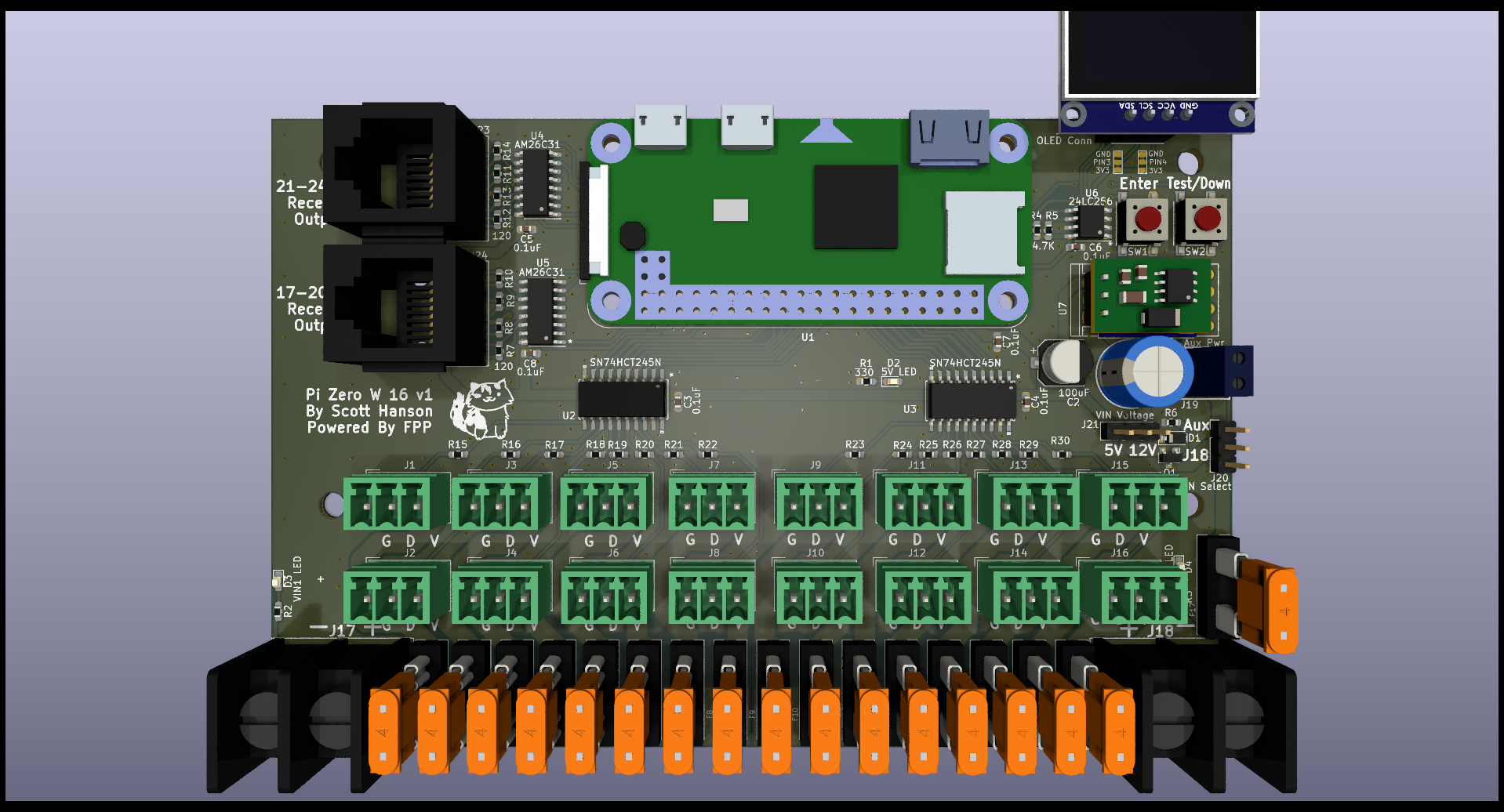

Pi Zero W 16, from the project README
From the project README

Main components on the Pi Zero W 16

SN74HCT245NSRAM26C31IDR24LC256T-I/SNUNIVERSE5V

Pi Zero W 16 bill of materials (BOM)

92 components, 44 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
SN74HCT245NSR
SN74HCT245N
U2, U3
2
AM26C31IDR
AM26C31
U4, U5
1
24LC256T-I/SN
24LC256
U6
1
UNIVERSE5V
Universe5V
U7
1
DMP3056L-7
DMP3056L
Q1
1
1843619/OSTTJ0311530
String1
J1
1
1843619/OSTTJ0311530
String2
J2
1
1843619/OSTTJ0311530
String3
J3
1
1843619/OSTTJ0311530
String4
J4
1
1843619/OSTTJ0311530
String5
J5
1
1843619/OSTTJ0311530
String6
J6
1
1843619/OSTTJ0311530
String7
J7
1
1843619/OSTTJ0311530
String8
J8
1
1843619/OSTTJ0311530
String9
J9
1
1843619/OSTTJ0311530
String10
J10
1
1843619/OSTTJ0311530
String11
J11
1
1843619/OSTTJ0311530
String12
J12
1
1843619/OSTTJ0311530
String13
J13
1
1843619/OSTTJ0311530
String14
J14
1
1843619/OSTTJ0311530
String15
J15
Show 24 more
QtyPartRefs
1
1843619/OSTTJ0311530
String16
J16
1
OSTYK51102030
Power In Left
J17
1
OSTYK51102030
Power In Right
J18
1
1727010
Aux Pwr
J19
1
61300311121
VIN Select
J20
1
61300311121
VIN Voltage
J21
1
PPTC041LFBN-RC
OLED Conn
J22
2
A-2014-2-4-R
Diff Out
J23, J24
17
3544-2
F1, F2, F3, F4, F5, F6, F7, F8 +9
1
PTS645SL50SMTR92 LFS
Enter BTN
SW1
1
PTS645SL50SMTR92 LFS
Down BTN
SW2
1
MMSZ5240B-7-F
Zener 10V
D1
1
LTST-C190KRKT
5V LED
D2
1
LTST-C190KRKT
VIN1 LED
D3
1
LTST-C190KRKT
VIN2 LED
D4
1
ECA-1HM221
220uF
C1
1
UWX1C101MCL1GB
100uF
C2
6
CL10B104KB8NNWC
0.1uF
C3, C4, C5, C6, C7, C8
1
330
R1
2
2K
R2, R3
2
RC0603JR-074K7L
4.7K
R4, R5
1
RT0603BRD07100KL
100K
R6
8
CRGCQ0603F120R
120
R7, R8, R9, R10, R11, R12, R13, R14
16
RC0603FR-0733RL
33
R15, R16, R17, R18, R19, R20, R21, R22 +8

Pi Zero W 16 design files

The KiCad project lives in the computergeek1507/PB_16 repository on GitHub; these links point at the commit this page was built from.

Pi Zero W 16: common questions

How big is the Pi Zero W 16 PCB?

The Pi Zero W 16 measures 142.1 × 93 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pi Zero W 16?

92 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pi Zero W 16 design files?

From the computergeek1507/PB_16 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pi Zero W 16 design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which computergeek1507 chose for the repository.
