Esp32

CopperPilot·copper-pilot-cli·examples/001_esp32/esp32/esp32.kicad_pcb

Esp32 PCB layout, top view — open source ESP32 board by CopperPilot

About the Esp32 PCB

Esp32 is an open source ESP32 PCB design by CopperPilot, published on GitHub under the MIT license. It is a 2-layer board measuring 29 × 51.9 mm, with 21 components from 12 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the LD1117S33TR_SOT223. By type, the board carries 6 resistors, 5 capacitors, 3 connectors, 3 diodes, 2 ICs and 2 switches.

From the project

CopperPilot in your terminal: a thin, open-source client for CopperPilot electronics design agent, the best AI for PCB Design.

English in. KiCad out. Clean ERC, clean DRC, rendered PCB.

Python 3.11+, pip install -e ., copper-pilot auth login, and KiCad 10 on PATH.

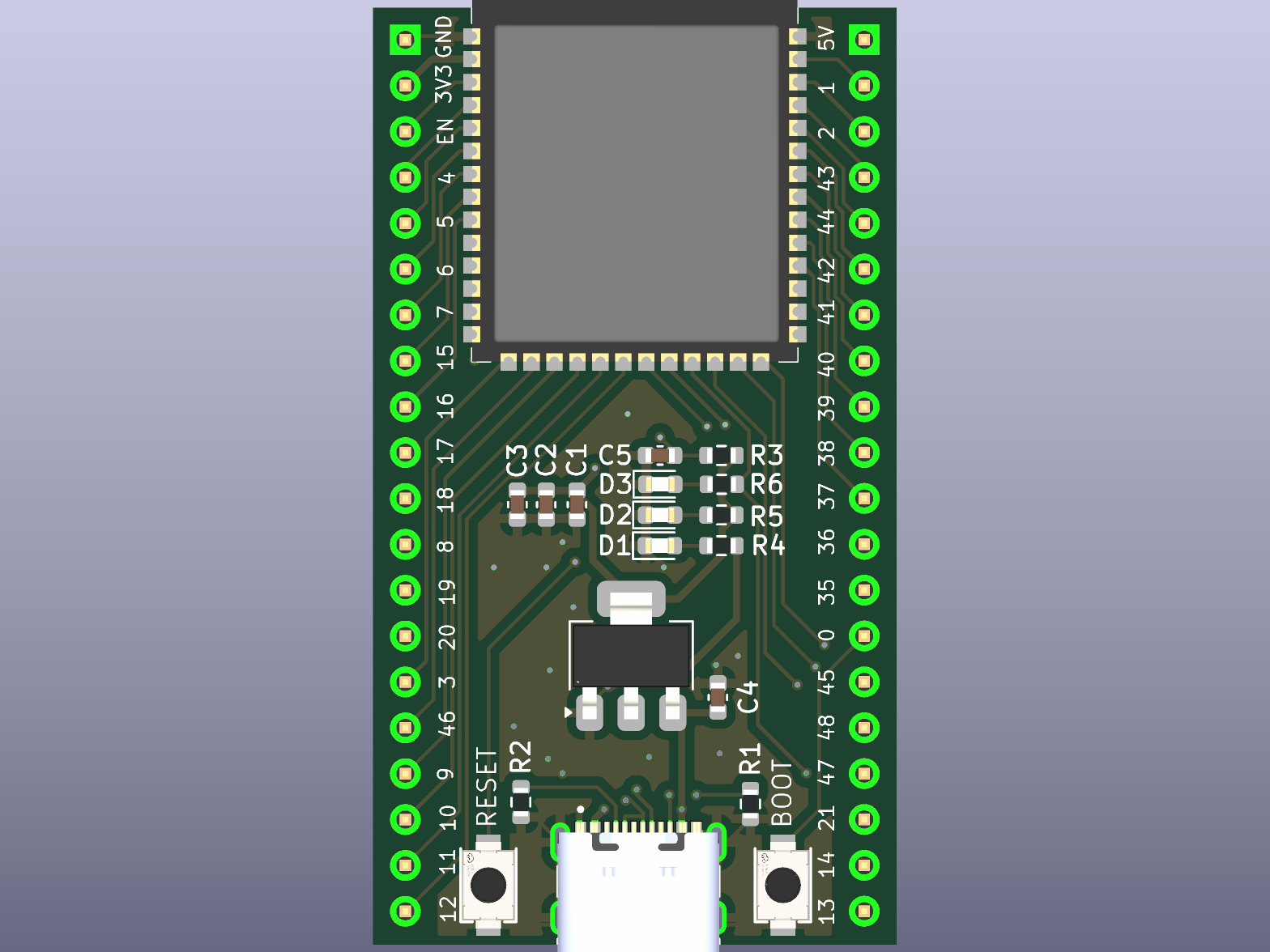

Esp32, from the project README
From the project README

Main components on the Esp32

ESP32-S3-WROOM-1LD1117S33TR_SOT223

Esp32 bill of materials (BOM)

21 components, 12 distinct parts.

QtyPartRefs
1
ESP32-S3-WROOM-1
U2
1
LD1117S33TR_SOT223
U3
1
TYPE-C-31-M-12
J1
2
Conn_01x20_Pin
J2, J3
2
TS-1088-AR02016
SW1, SW2
1
RED
D1
1
GREEN
D2
1
BLUE
D3
3
10u
C1, C4, C5
1
22u
C2
1
100n
C3
6
5.1K
R1, R2, R3, R4, R5, R6

Esp32 design files

The KiCad project lives in the CopperPilot/copper-pilot-cli repository on GitHub; these links point at the commit this page was built from.

Esp32: common questions

What microcontroller does the Esp32 use?

The Esp32 is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the Esp32 PCB?

The Esp32 measures 29 × 51.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32?

21 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32 design files?

From the CopperPilot/copper-pilot-cli repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esp32 design in my own project?

Yes, under the terms of its MIT license, which CopperPilot chose for the repository.

Can I test firmware for the Esp32 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
