About the DingoPDM PCB
DingoPDM is an open source STM32 PCB design by corygrant, published on GitHub under the MIT license. It is a 4-layer board measuring 72.4 × 95.3 mm, with 151 components from 96 distinct parts.
Its main chip is the PCA9539, from the STM32 family. Other key parts include the MAX11613, MB85RC256V, MCP9808, PCAL9554B and PCA9635. By type, the board carries 57 resistors, 42 capacitors, 19 diodes, 15 ICs, 8 test points and 5 connectors.
From the project

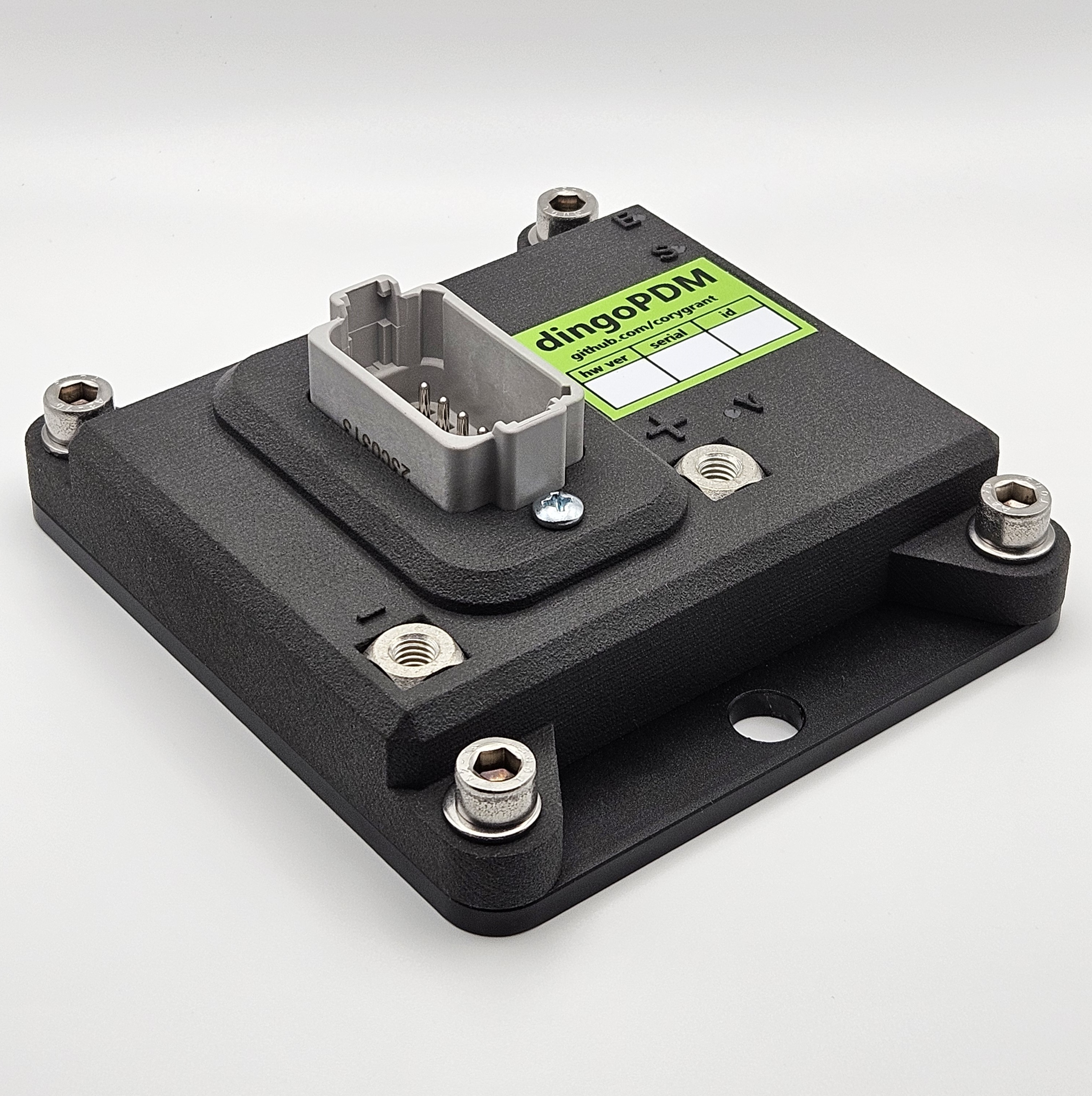

Hardware - dingoPDM is an open source, affordable automotive PDM (Power Distribution Module). Pre-assembled and tested units are available or the design can be used to build a DIY version.

Main components on the DingoPDM
DingoPDM bill of materials (BOM)
151 components, 96 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PCA9539 VXO7805-500-M | VXO78x-500-M | U1 |
| 1 | MAX11613 LD1117S33CTR | SOT-223 | U2 |
| 1 | MAX11613 PCA82C250 | SOIC-8_3.9x4.9mm_P1.27mm | U3 |
| 1 | PCA9539 STM32F446RETx | LQFP-64_10x10mm_P0.5mm | U4 |
| 1 | MB85RC256V | SOIC-8_3.9x4.9mm_P1.27mm | U5 |
| 1 | MCP9808 | MSOP-8_3x3mm_P0.65mm | U6 |
| 1 | PCAL9554B LM324 | TSSOP-14_4.4x5mm_P0.65mm | U7 |
| 1 | PCA9635 BTS700n-1EPP | TDSO-14 | U8 |
| 1 | STM32F303CCTX BTS700n-1EPP | TDSO-14 | U9 |
| 1 | PCA82C250 BTS7008-2EPA | TDSO-14 | U10 |
| 1 | TLP172AM BTS7008-2EPA | TDSO-14 | U11 |
| 1 | W25Q32JVSSIQ_TR LM324 | TSSOP-14_4.4x5mm_P0.65mm | U12 |
| 1 | VXO780X-500-M BTS7008-2EPA | TDSO-14 | U13 |
| 1 | TLP2710(TPECT-ND OKI-78SR-5_1.5-W36H-C | Converter_DCDC_Murata_OKI-78SR_Horizontal | U14 |
| 1 | LD1117S33CTR TSR_1-2450 | Converter_DCDC_TRACO_TSR-1_THT | U15 |
| 1 | 8MHZ 8mHz | Crystal_SMD_5032-2Pin_5.0x3.2mm_HandSoldering | Y1 |
| 1 | 732-3203 RedCubeTerminal | M6_Hole_8Pin_7461084 | J1 |
| 1 | USB_C_RECEPTACLE_USB2.0 RedCubeTerminal | M6_Hole_8Pin_7461084 | J2 |
| 1 | 1-776267-1 Conn_01x12 | DT15-12PA | J3 |
| 1 | 1-776267-1 TC | Tag-Connect_TC2030-IDC-NL_2x03_P1.27mm_Vertical | J4 |
Show 76 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_GCT_USB4085 | J5 |
| 1 | DingoFace | DingoFaceNoFill | G2 |
| 1 | PowerLED_Jumper | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP1 |
| 1 | 563-1022-1 BOOT | CJS-1200TB | SW1 |
| 1 | GND | TestPoint_Keystone_5000-5004_Miniature | TP1 |
| 1 | CAN_T | TestPoint_Keystone_5000-5004_Miniature | TP2 |
| 1 | CAN_R | TestPoint_Keystone_5000-5004_Miniature | TP3 |
| 1 | I2C1_SCL | TestPoint_Keystone_5000-5004_Miniature | TP5 |
| 1 | I2C1_SDA | TestPoint_Keystone_5000-5004_Miniature | TP6 |
| 1 | E1 | TestPoint_Keystone_5000-5004_Miniature | TP8 |
| 1 | E2 | TestPoint_Keystone_5000-5004_Miniature | TP9 |
| 1 | E3 | TestPoint_Keystone_5000-5004_Miniature | TP10 |
| 1 | 3.3V | D_SOD-323_HandSoldering | D1 |
| 1 | 1727-2394-1 SMCJ20CA | DO-214AB_TVS | D2 |
| 1 | BAT54S GRN | LED_0805_2012Metric | D3 |
| 1 | BAT54S NUP2105LT1G | SOT-23-3 | D4 |
| 1 | BAT54S RED | LED_0805_2012Metric | D5 |
| 2 | BAT54S | SOT-23 | D6, D7 |
| 2 | BAT54S BYG23M | DO-214AC | D8, D10 |
| 1 | BAT54S 3.3V | D_SOD-323_HandSoldering | D9 |
| 1 | 475-1278-1 3.3V | D_SOD-323_HandSoldering | D11 |
| 3 | 475-2560-1 3.3V | D_SOD-323_HandSoldering | D12, D13, D14 |
| 3 | 475-2560-1 Schottky | D_SOD-123 | D15, D18, D19 |
| 1 | 475-2560-1 RED | LED_0805_2012Metric | D16 |
| 1 | 475-2560-1 GRN | LED_0805_2012Metric | D17 |
| 1 | 490-1054-1 Ferrite_Bead_Small | R_0805_2012Metric | FB1 |
| 11 | 100NF 100nF | C_0805_2012Metric | C1, C11, C12, C13, C15, C17, C27, C33 +3 |
| 4 | 10NF 100nF | C_0805_2012Metric | C2, C5, C9, C31 |
| 2 | 10NF 10uF | C_0805_2012Metric | C3, C6 |
| 1 | 10NF 22uF | C_0805_2012Metric | C4 |
| 2 | 10NF 27pF | C_0805_2012Metric | C7, C8 |
| 3 | 100NF 47nF | C_0805_2012Metric | C10, C26, C35 |
| 1 | 100NF 4.7uF | C_0805_2012Metric | C14 |
| 1 | 100NF 1uF | C_0805_2012Metric | C16 |
| 1 | 1UF 1uF | C_0805_2012Metric | C18 |
| 3 | 100NF 10nF | C_0805_2012Metric | C19, C24, C28 |
| 1 | 27PF 10nF | C_0805_2012Metric | C20 |
| 1 | 27PF 100nF | C_0805_2012Metric | C21 |
| 1 | 15PF 47nF | C_0805_2012Metric | C22 |
| 1 | 15PF 100nF | C_0805_2012Metric | C23 |
| 2 | 100NF 220pF | C_0805_2012Metric | C25, C29 |
| 1 | 4.7UF 47nF | C_0805_2012Metric | C30 |
| 1 | 1UF 220pF | C_0805_2012Metric | C32 |
| 1 | 0.47F/3.5V 220pF | C_0805_2012Metric | C34 |
| 1 | 10UF 220pF | C_0805_2012Metric | C37 |
| 1 | 22UF 4.7uF | C_0805_2012Metric | C38 |
| 1 | 10UF 47uF | C_2220_5750Metric | C41 |
| 1 | 47NF 47uF | C_2220_5750Metric | C42 |
| 1 | 47K | R_0805_2012Metric | R1 |
| 7 | 10K 4.7K | R_0805_2012Metric | R2, R17, R18, R19, R20, R40, R41 |
| 6 | 4.7K 120R | R_0805_2012Metric | R3, R11, R12, R51, R52, R53 |
| 1 | 4.7K 10K | R_0805_2012Metric | R4 |
| 1 | 1.5K 1K | R_0805_2012Metric | R5 |
| 1 | 10K | R_0805_2012Metric | R6 |
| 1 | 47K 10K | R_0805_2012Metric | R7 |
| 1 | 100R 120R | R_0805_2012Metric | R8 |
| 4 | 4.7K | R_0805_2012Metric | R9, R10, R13, R14 |
| 1 | 4.7K 1.2K | R_0805_2012Metric | R15 |
| 1 | 4.7K 47R 1/4W | R_1206_3216Metric | R16 |
| 1 | 100R 1.2K | R_0805_2012Metric | R21 |
| 2 | 560R 47R 1/4W | R_1206_3216Metric | R22, R31 |
| 12 | 560R 4.7K | R_0805_2012Metric | R23, R24, R26, R27, R28, R29, R32, R33 +4 |
| 1 | 560R 120R | R_0805_2012Metric | R25 |
| 1 | 560R 1.2K | R_0805_2012Metric | R30 |
| 1 | RMCF0805ZT0R00 1.2K | R_0805_2012Metric | R38 |
| 1 | RMCF0805ZT0R00 47R 1/4W | R_1206_3216Metric | R39 |
| 1 | 120R | R_0805_2012Metric | R42 |
| 3 | 100R 4.7K | R_0805_2012Metric | R43, R44, R46 |
| 1 | A130710 4.7K | R_0805_2012Metric | R45 |
| 1 | 470R 1.2K | R_0805_2012Metric | R47 |
| 1 | 10K 47R 1/4W | R_1206_3216Metric | R48 |
| 2 | 120R 4.7K | R_0805_2012Metric | R49, R50 |
| 1 | 4.7K 5.1K | R_0805_2012Metric | R54 |
| 1 | 1.2K 5.1K | R_0805_2012Metric | R55 |
| 1 | 311-47.0FR 4.7K | R_0805_2012Metric | R56 |
| 1 | 220K 10K | R_0805_2012Metric | R57 |
DingoPDM design files
The KiCad project lives in the corygrant/dingoPDM repository on GitHub; these links point at the commit this page was built from.
DingoPDM: common questions
What microcontroller does the DingoPDM use?
The DingoPDM is built around the PCA9539, from the STM32 family.
How big is the DingoPDM PCB?
The DingoPDM measures 72.4 × 95.3 mm, has 4 copper layers and is 1.769872 mm thick.
How many components are on the DingoPDM?
151 components, from 96 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the DingoPDM design files?
From the corygrant/dingoPDM repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the DingoPDM design in my own project?
Yes, under the terms of its MIT license, which corygrant chose for the repository.
Can I test firmware for the DingoPDM without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
