Pico console v2
About the Pico console v2 PCB
Pico console v2 is an open source RP2040/RP2350 PCB design by Crem2y, published on GitHub. It is a 2-layer board measuring 165.1 × 95.3 mm, with 152 components from 48 distinct parts.
Its main chip is the RP2350_80QFN, from the RP2040/RP2350 family. Other key parts include the USBLC6-2SC6, W25Q16JVSS, XPT2046TS, PCM5102A and PAM8403D. By type, the board carries 54 capacitors, 39 resistors, 16 diodes, 9 ICs, 6 connectors and 5 LEDs.

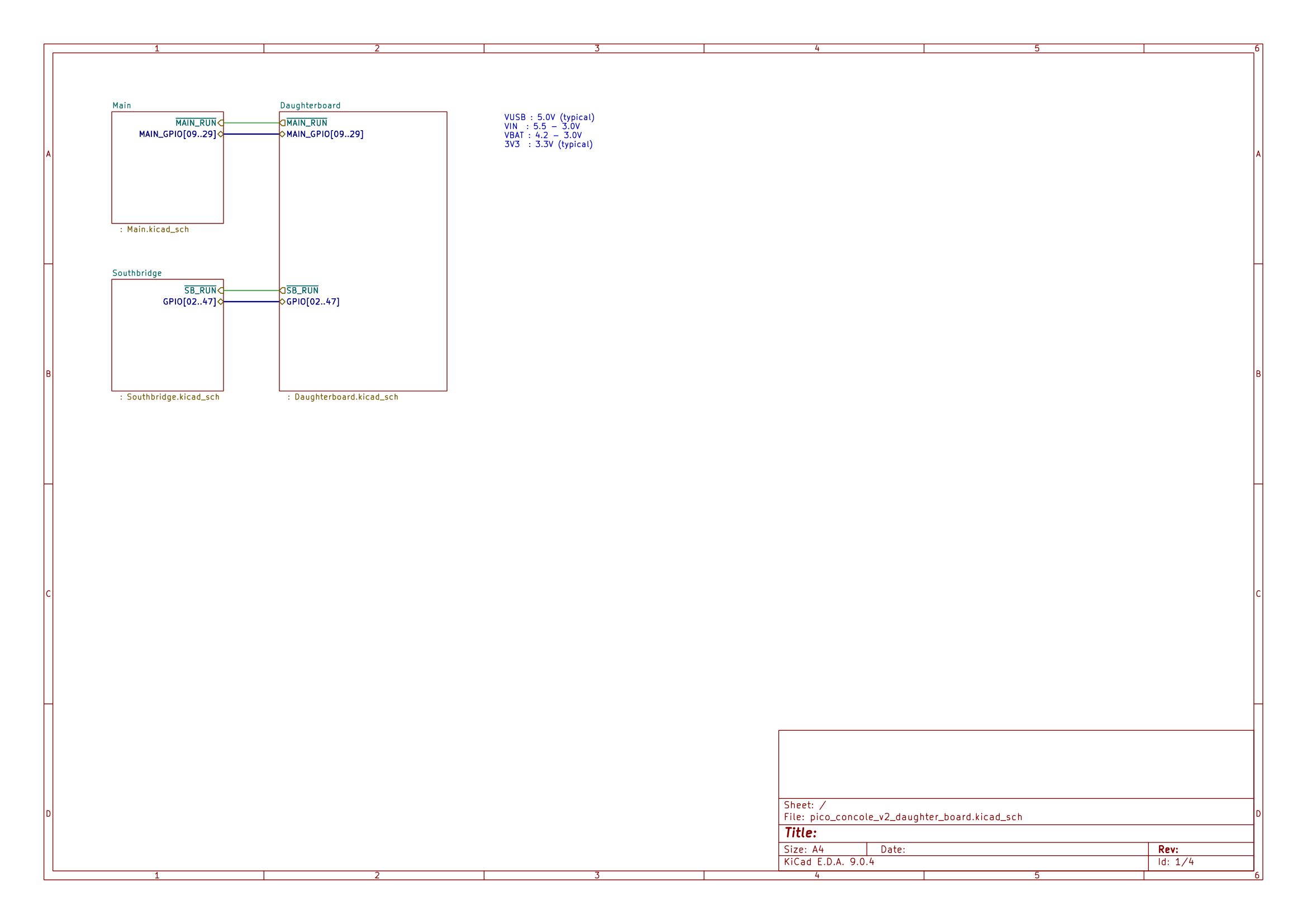

From the project
pico console v2 board (firmware : https://github.com/Crem2y/pico-console-v2)
Main components on the Pico console v2
Pico console v2 bill of materials (BOM)
152 components, 48 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USBLC6-2SC6 | SOT-23-6 | U1 |
| 1 | RP2350_80QFN | QFN-80-1EP_10x10mm_P0.4mm_EP3.4x3.4mm | U2 |
| 1 | W25Q16JVSS | SOIC-8_5.3x5.3mm_P1.27mm | U3 |
| 1 | XPT2046TS | TSSOP-16_4.4x5mm_P0.65mm | U5 |
| 1 | PCM5102A | TSSOP-20_4.4x6.5mm_P0.65mm | U6 |
| 2 | PAM8403D | SOIC-16_3.9x9.9mm_P1.27mm | U7, U8 |
| 1 | MPU-6050 | InvenSense_QFN-24_4x4mm_P0.5mm | U9 |
| 1 | BQ25619 | Texas_RTW_WQFN-24-1EP_4x4mm_P0.5mm_EP2.7x2.7mm | U10 |
| 1 | SS8050 | SOT-23 | Q1 |
| 1 | ABM8-272-T3 | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 2 | SM03B-SRSS-TB | JST_SH_SM03B-SRSS-TB_1x03-1MP_P1.00mm_Horizontal | J1, J2 |
| 2 | Conn_02x12 | PinHeader_2x12_P2.54mm_Vertical_SMD | J4, J5 |
| 1 | Conn_01x10_MountingPin | TE_1-1734839-0_1x10-1MP_P0.5mm_Horizontal | J6 |
| 1 | Conn_01x04_MountingPin | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J7 |
| 1 | SJ2-35954B-SMT-TR | Jack_3.5mm_CUI_SJ2-3593D-SMT_Horizontal | AUDIO1 |
| 1 | Battery | Molex_PicoBlade_53261-0271_1x02-1MP_P1.25mm_Horizontal | BAT1 |
| 1 | Conn_01x40_MountingPin | Amphenol_F32Q-1A7x1-11040_1x40-1MP_P0.5mm_Horizontal | DP1 |
| 1 | Joy1 | TE_0-1734839-5_1x05-1MP_P0.5mm_Horizontal | JOY1 |
| 1 | Joy2 | TE_0-1734839-5_1x05-1MP_P0.5mm_Horizontal | JOY2 |
| 3 | Jumper_2_Small_Bridged | SolderJumper-2_P1.3mm_Bridged_Pad1.0x1.5mm | JP6, JP7, JP8 |
Show 28 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LRA_L | Molex_PicoBlade_53261-0271_1x02-1MP_P1.25mm_Horizontal | LRA1 |
| 1 | LRA_R | Molex_PicoBlade_53261-0271_1x02-1MP_P1.25mm_Horizontal | LRA2 |
| 1 | Temperture | Molex_PicoBlade_53261-0271_1x02-1MP_P1.25mm_Horizontal | NTC1 |
| 1 | SPK_L | Molex_PicoBlade_53261-0271_1x02-1MP_P1.25mm_Horizontal | SPK1 |
| 1 | SPK_R | Molex_PicoBlade_53261-0271_1x02-1MP_P1.25mm_Horizontal | SPK2 |
| 3 | SW_Push | SW_Push_1P1T_NO_Vertical_Wuerth_434133025816 | SW1, SW2, SW3 |
| 5 | GREEN | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | LED2, LED3, LED4, LED5, LED6 |
| 16 | D_Small | D_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1, D2, D3, D4, D5, D6, D7, D8 +8 |
| 3 | FerriteBead_Small | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | FB1, FB2, FB3 |
| 1 | AOTA-B201610S3R3-101-T | L_pol_2016 | L1 |
| 1 | MAPM0420F-2R2M-LF | Inductor_SMD_L_4.9x4.4_H2 | L2 |
| 15 | 100n | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +7 |
| 3 | 4.7u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C13, C14, C15 |
| 2 | 15p | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C17, C18 |
| 18 | 1u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C19, C20, C25, C26, C27, C28, C29, C30 +10 |
| 4 | 470n | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C21, C22, C23, C24 |
| 2 | 2.2u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C37, C38 |
| 3 | 2.2n | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C39, C40, C48 |
| 5 | 10u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C43, C45, C52, C54, C55 |
| 1 | 47n | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C44 |
| 1 | 4.7u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C46 |
| 1 | 33 | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | R3 |
| 2 | 27 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R4, R5 |
| 12 | 1k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R6, R7, R8, R9, R10, R11, R20, R21 +4 |
| 17 | 10k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R12, R13, R14, R15, R26, R27, R28, R29 +9 |
| 4 | 100k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R16, R17, R18, R19 |
| 2 | 470 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R24, R25 |
| 1 | 100 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R35 |
Pico console v2 design files
The KiCad project lives in the Crem2y/pico-console-v2-pcb repository on GitHub; these links point at the commit this page was built from.
Pico console v2: common questions
What microcontroller does the Pico console v2 use?
The Pico console v2 is built around the RP2350_80QFN, from the RP2040/RP2350 family.
How big is the Pico console v2 PCB?
The Pico console v2 measures 165.1 × 95.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pico console v2?
152 components, from 48 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pico console v2 design files?
From the Crem2y/pico-console-v2-pcb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Pico console v2 design in my own project?
The repository has no license, so all rights stay with Crem2y. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Pico console v2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
