Electronics homeassistant multisensor PCB layout, top view — open source ESP32 board by crgarcia12

About the Electronics homeassistant multisensor PCB

Electronics homeassistant multisensor is an open source ESP32 PCB design by crgarcia12, published on GitHub. It is a 2-layer board measuring 78.4 × 84.3 mm, with 92 components from 41 distinct parts.

Its main chip is the ESP32-S3-WROOM-2, from the ESP32 family. Other key parts include the LD1117AV33, ULN2003A, USBLC6-2SC6, LDA210-PDIP and SHT4x. By type, the board carries 26 resistors, 20 capacitors, 13 connectors, 9 fuses, 7 ICs and 7 diodes.

It belongs with the iot & wireless designs in this gallery.

From the project

This circuit controll home lights following these rules: 1. Safe: Safety is not trade in any decision. 1. Fail safe: If this device fails, the ligts are still controllable using the mechanical switches. 1. Follows standard instalation: This device does not require you to wire you

This circuit controll home lights following these rules: 1. Safe: Safety is not trade in any decision. 1. Fail safe: If this device fails, the ligts are still controllable using the mechanical switches. 1. Follows standard instalation: This device does not require you to wire your house for it. 1. It can be installed centrally

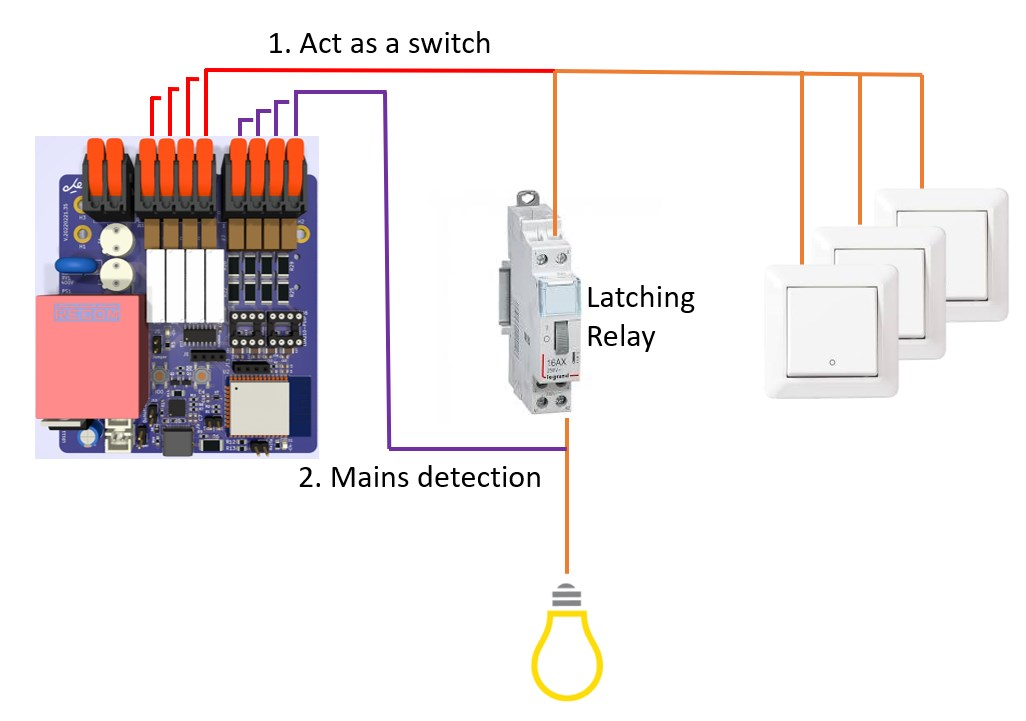

The circuit is placed close to the mains switching box, next to the latching relays. Wiring:

Electronics homeassistant multisensor, from the project README
From the project README

Main components on the Electronics homeassistant multisensor

Electronics homeassistant multisensor bill of materials (BOM)

92 components, 41 distinct parts.

QtyPartRefs
1
LD1117AV33
U1
1
ESP32-S3-WROOM-2
U2
1
ULN2003A
U3
1
USBLC6-2SC6
U4
2
LDA210-PDIP
U5, U6
1
SHT4x
U7
1
GND|5V
J1
1
2604-1102
J2
1
I2C
J3
1
13|12
J4
1
9|3|16
J5
1
GND|3.3V
J6
1
Current Jumper
J7
1
EspRelays
J8
2
2604-1104
J9, J12
1
Serial
J10
1
USB_C_Receptacle_USB2.0
J11
1
EspSense
J13
1
250V500mA
F1
8
Fuse
F2, F3, F4, F5, F6, F7, F8, F9
Show 21 more
QtyPartRefs
4
AQG12205
K1, K2, K3, K4
1
RAC05-05SK/277
PS1
1
400V
RV1
2
Switch
SW1, SW2
1
USB | PS
SW3
1
GND
TP1
2
LED
D1, D2
1
BAT60A
D3
4
LED
D4, D5, D6, D7
6
100nF
C1, C4, C5, C9, C14, C19
1
NC
C2
5
22uF
C3, C15, C16, C17, C18
5
NC
C6, C7, C10, C11, C20
1
10uF
C8
2
20p
C12, C13
7
10kΩ
R1, R6, R7, R11, R12, R13, R14
2
100Ω
R2, R5
2
22Ω
R3, R4
9
150kΩ1w
R8, R15, R16, R17, R18, R19, R20, R21 +1
2
5.1kΩ
R9, R10
4
100Ω
R23, R24, R25, R26

Electronics homeassistant multisensor design files

The KiCad project lives in the crgarcia12/electronics-homeassistant-multisensor repository on GitHub; these links point at the commit this page was built from.

Electronics homeassistant multisensor: common questions

What microcontroller does the Electronics homeassistant multisensor use?

The Electronics homeassistant multisensor is built around the ESP32-S3-WROOM-2, from the ESP32 family.

How big is the Electronics homeassistant multisensor PCB?

The Electronics homeassistant multisensor measures 78.4 × 84.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Electronics homeassistant multisensor?

92 components, from 41 distinct parts. The full bill of materials is listed on this page.

Where can I download the Electronics homeassistant multisensor design files?

From the crgarcia12/electronics-homeassistant-multisensor repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Electronics homeassistant multisensor design in my own project?

The repository has no license, so all rights stay with crgarcia12. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Electronics homeassistant multisensor without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
