STM32F103

cristobalcuevas·PCB-Designs·STM32F103/STM32F103.kicad_pcb

STM32F103 PCB layout, top view — open source STM32 board by cristobalcuevas

About the STM32F103 PCB

STM32F103 is an open source STM32 PCB design by cristobalcuevas, published on GitHub. It is a 2-layer board measuring 42.7 × 34.5 mm, with 28 components from 20 distinct parts.

Its main chip is the STM32F103CBTx, from the STM32 family. Other key parts include the XC6206PxxxMR and USBLC6-2SC6. By type, the board carries 11 capacitors, 4 resistors, 3 ICs, 3 connectors, 2 diodes and 2 inductors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Projects with Kicad

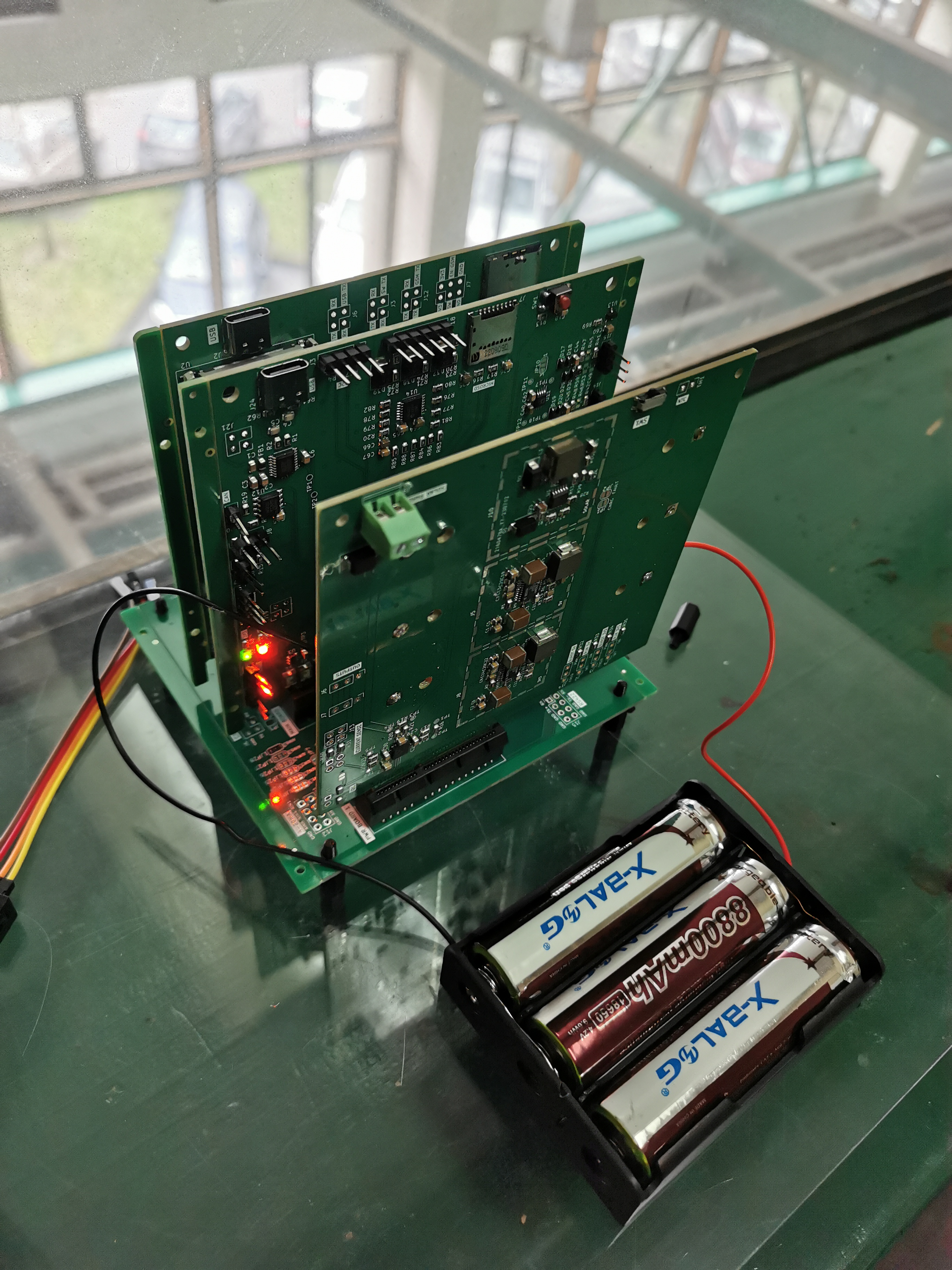

STM32F103, from the project README — From the project README

Main components on the STM32F103

XC6206PxxxMR USBLC6-2SC6 STM32F103CBTx

STM32F103 bill of materials (BOM)

28 components, 20 distinct parts.

Qty	Part	Footprint	Refs
1	XC6206PxxxMR	SOT-23	U1
1	USBLC6-2SC6	SOT-23-6	U2
1	STM32F103CBTx	LQFP-48_7x7mm_P0.5mm	U3
1	8MHz	Crystal_SMD_5032-2Pin_5.0x3.2mm	Y1
1	USB_B_Micro	USB_Micro-B_Wuerth_629105150521	J1
2	Conn_01x15	PinHeader_1x15_P2.54mm_Vertical	J2, J3
1	SolderJumper_2_Open	SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm	B0
1	100mA	Fuse_0603_1608Metric	F1
1	GREEN	LED_0603_1608Metric	D1
1	BLUE	LED_0603_1608Metric	D2
1	100R @ 100 MHz	L_0805_2012Metric	FB1
1	27N	L_0402_1005Metric	L1
2	10u	C_0603_1608Metric	C1, C2
1	4u7	C_0603_1608Metric	C3
5	100n	C_0402_1005Metric	C4, C5, C6, C7, C9
1	1u	C_0402_1005Metric	C8
2	30p	C_0402_1005Metric	C10, C11
2	1k5	R_0603_1608Metric	R1, R3
1	10k	R_0402_1005Metric	R2
1	1k5	R_0402_1005Metric	R4

STM32F103 design files

The KiCad project lives in the cristobalcuevas/PCB-Designs repository on GitHub; these links point at the commit this page was built from.

LayoutSTM32F103/STM32F103.kicad_pcb
SchematicSTM32F103/STM32F103.kicad_sch

STM32F103: common questions

What microcontroller does the STM32F103 use?

The STM32F103 is built around the STM32F103CBTx, from the STM32 family.

How big is the STM32F103 PCB?

The STM32F103 measures 42.7 × 34.5 mm, has 2 copper layers and is 0.29 mm thick.

How many components are on the STM32F103?

28 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the STM32F103 design files?

From the cristobalcuevas/PCB-Designs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the STM32F103 design in my own project?

The repository has no license, so all rights stay with cristobalcuevas. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the STM32F103 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
