ESP multi board

CRM-UAM·ESP_Multi_Board

ESP multi board layout, top view — open source ESP8266 board by CRM-UAM

About the ESP multi board

ESP multi board is an open source ESP8266 PCB design by CRM-UAM, published on GitHub. It is a 2-layer board measuring 82.2 × 47.9 mm, with 43 components from 21 distinct parts.

Its main chip is the ESP-12, from the ESP8266 family. Other key parts include the L298, LD1117S33TR, MAX11605EEE+ and MCP23008. By type, the board carries 9 connectors, 8 diodes, 7 resistors, 5 ICs, 4 capacitors and 2 switches.

It belongs with the iot & wireless designs in this gallery.

From the project

IR values cm - val 0 - 216 2 - 130 3 - 92 4 - 73 5 - 53 6 - 40 7 - 34 10 - 21

IR values cm - val 0 - 216 2 - 130 3 - 92 4 - 73 5 - 53 6 - 40 7 - 34 10 - 21

Authors -- Víctor Uceda & Carlos García Club de Robótica-Mecatrónica, Universidad Autónoma de Madrid (CRM-UAM)

Disclaimer -- This hardware/software is provided "as is", and you use the hardware/software at your own risk. Under no circumstances shall any author be liable for direct, indirect, special, incidental, or consequential damages resulting from the use, misuse, or inability to use this hardware/software, even if the authors have been advised of the possibility of such damages.

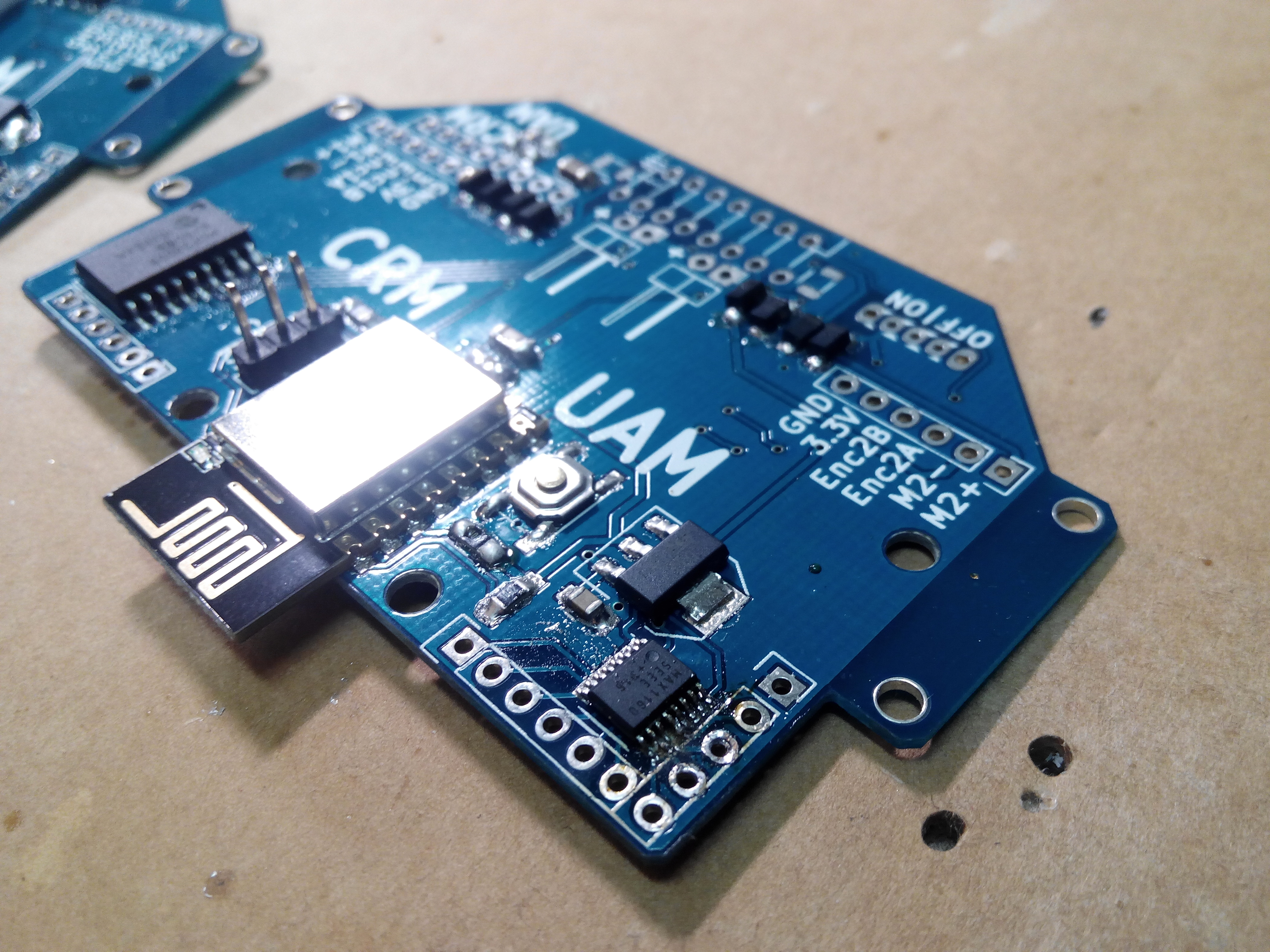

ESP multi board, from the project README
From the project README

Main components on the ESP multi board

L298LD1117S33TRESP-12MAX11605EEE+MCP23008

ESP multi board bill of materials (BOM)

43 components, 21 distinct parts.

QtyPartRefs
1
L298
IC101
1
LD1117S33TR
U1
1
ESP-12
U102
1
MAX11605EEE+
U103
1
MCP23008
U104
2
CONN_01X02
P101, P103
3
CONN_01X06
P102, P104, P105
1
CONN_01X03
P106
1
CONN_I2C_MPU6050
P107
1
CONN_PINES_DIG
P108
1
CONN_01X05
P109
1
SW_PUSH_SMALL
SW101
1
SWITCH_INV
SW102
8
1pin
drill3, drill4, drill7, drill8, drill9, drill11, drill14, drill20
8
D
D102, D103, D104, D105, D106, D107, D108, D109
2
10u
C1, C101
1
100n
C2
1
0.1u
C102
3
10k
R101, R102, R103
2
4.7k
R104, R105
Show 1 more
QtyPartRefs
2
0.5
R106, R107

ESP multi board design files

The KiCad project lives in the CRM-UAM/ESP_Multi_Board repository on GitHub; these links point at the commit this page was built from.

ESP multi board: common questions

What microcontroller does the ESP multi board use?

The ESP multi board is built around the ESP-12, from the ESP8266 family.

How big is the ESP multi board?

The ESP multi board measures 82.2 × 47.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP multi board?

43 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP multi board design files?

From the CRM-UAM/ESP_Multi_Board repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ESP multi board design in my own project?

The repository has no license, so all rights stay with CRM-UAM. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP multi board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
