Seven Segment Main Board

cscott·SevenSegmentInputModule·MainBoard/MainBoard.kicad_pcb

Seven Segment Main Board layout, top view — open source RP2040/RP2350 board by cscott

About the Seven Segment Main Board

Seven Segment Main Board is an open source RP2040/RP2350 PCB design by cscott, published on GitHub. It is a 2-layer board measuring 33.8 × 131 mm, with 70 components from 23 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q16JVUXIQ, IS31FL3729-QFLS4, VDMR10A1, C455045 and SIP32431DR3-T1GE3. By type, the board carries 27 capacitors, 14 ICs, 14 resistors, 8 LEDs, 5 diodes and 1 crystal.

It belongs with the displays & leds designs in this gallery.

From the project

7-segment display input module for Framework 16

This module is based on the "34x9 LED Matrix" example from https://github.com/FrameworkComputer/InputModules and is powered by a Raspberry Pi RP2040 microcontroller.

A short video demo of first light from the prototype is at https://youtu.be/MXg15aWYOqI

More discussion of this project can be found in the Framework forums.

This seven segment display input module is © 2024 by C. Scott Ananian and is also licensed under CC BY 4.0.

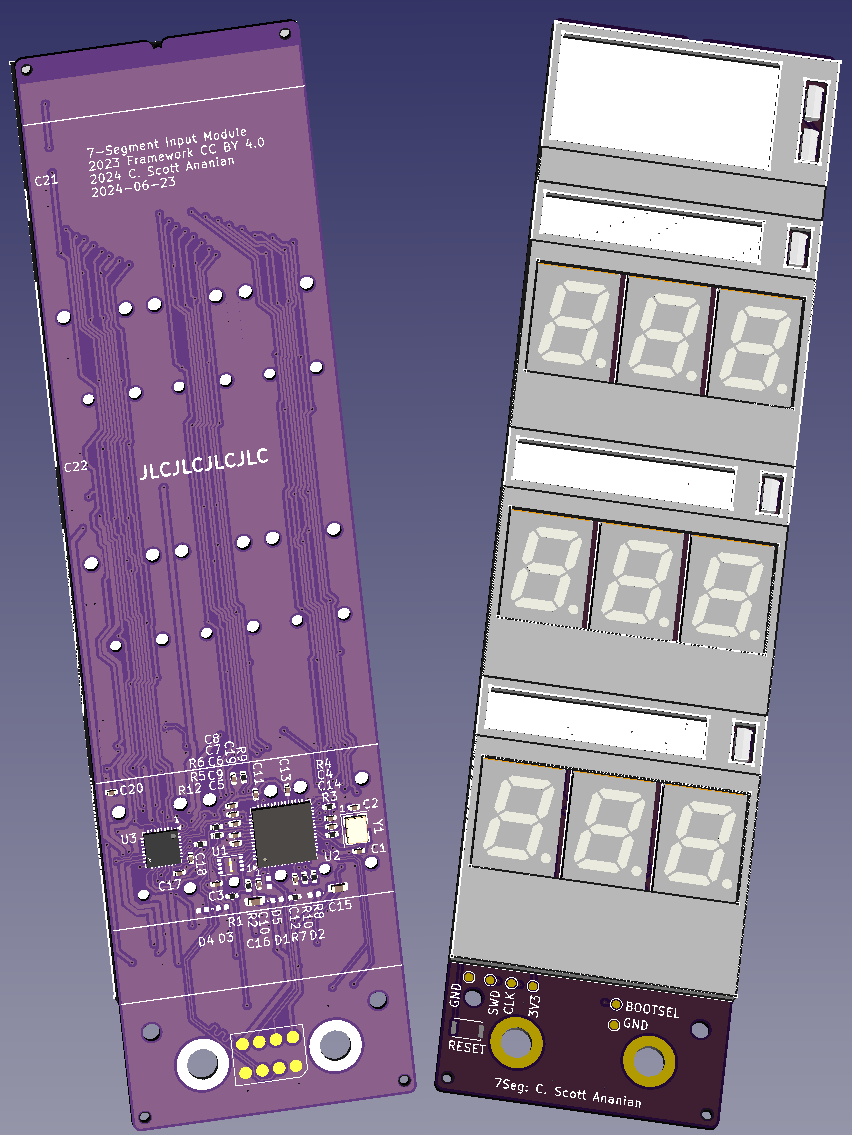

Seven Segment Main Board, from the project README
From the project README

Main components on the Seven Segment Main Board

W25Q16JVUXIQRP2040IS31FL3729-QFLS4VDMR10A1C455045SIP32431DR3-T1GE3

Seven Segment Main Board bill of materials (BOM)

70 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
W25Q16JVUXIQ
U1
1
RP2040
U2
1
IS31FL3729-QFLS4
IS31FL3729-QFLS4-TR
U3
9
VDMR10A1
U4, U5, U6, U7, U8, U9, U10, U11 +1
1
C455045
74LVC1G34GW,125
U13
1
SIP32431DR3-T1GE3
U14
1
12.000MHZ
12.000MHz
Y1
1
DSHP02TSGET
SW1
8
SKC6812RGBW-BW-B
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8
5
C468904
D_TVS
D1, D2, D3, D4, D5
2
22PF
22pF
C1, C2
19
100NF
100nF
C3, C4, C5, C7, C9, C10, C11, C12 +11
4
1UF
1uF
C6, C8, C17, C23
2
10UF
10uF
C15, C16
2
1k
R1, R3
2
10K
10k
R2, R4
2
22
R5, R6
1
300K
300k
R7
2
2k
R8, R10
1
100K
100k
R9
Show 3 more
QtyPartRefs
2
5.1
R11, R13
1
33K
33k
R12
1
470K
470k
R14

Seven Segment Main Board design files

The KiCad project lives in the cscott/SevenSegmentInputModule repository on GitHub; these links point at the commit this page was built from.

Seven Segment Main Board: common questions

What microcontroller does the Seven Segment Main Board use?

The Seven Segment Main Board is built around the RP2040, from the RP2040/RP2350 family.

How big is the Seven Segment Main Board?

The Seven Segment Main Board measures 33.8 × 131 mm, has 2 copper layers and is 0.8 mm thick.

How many components are on the Seven Segment Main Board?

70 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Seven Segment Main Board design files?

From the cscott/SevenSegmentInputModule repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Seven Segment Main Board design in my own project?

The repository has no license, so all rights stay with cscott. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Seven Segment Main Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
