Sim rev3c

DangerousPrototypes·BusPirate5-hardware·adapter-sim-iccard-1REV3C/sim-rev3c.kicad_pcb

Sim rev3c PCB layout, top view — open source board by DangerousPrototypes

About the Sim rev3c PCB

Sim rev3c is an open source PCB design by DangerousPrototypes, published on GitHub under the MIT license. It is a 2-layer board measuring 40.1 × 58.4 mm, with 12 components from 11 distinct parts.

Other key parts include the SIM 6P, SIM 8P and QSE159. By type, the board carries 3 ICs, 3 connectors, 2 switches, 2 diodes and 2 resistors.

It belongs with the displays & leds, power & battery and test & measurement designs in this gallery.

From the project

Bus Pirate Hardware and accessories for v5 and higher

Bus Pirate 5 is the latest edition of the universal serial interface trusted by hackers since 2008.

Can't get a chip to work? Is it the circuit, code, bad part or a burned out pin? The Bus Pirate sends commands over common serial protocols (1-Wire, I2C, SPI, UART, MIDI, serial LEDs, etc) so you can get to know a chip before prototyping. Updated with tons of new features, talking to chips and probing interfaces is more fun than ever!

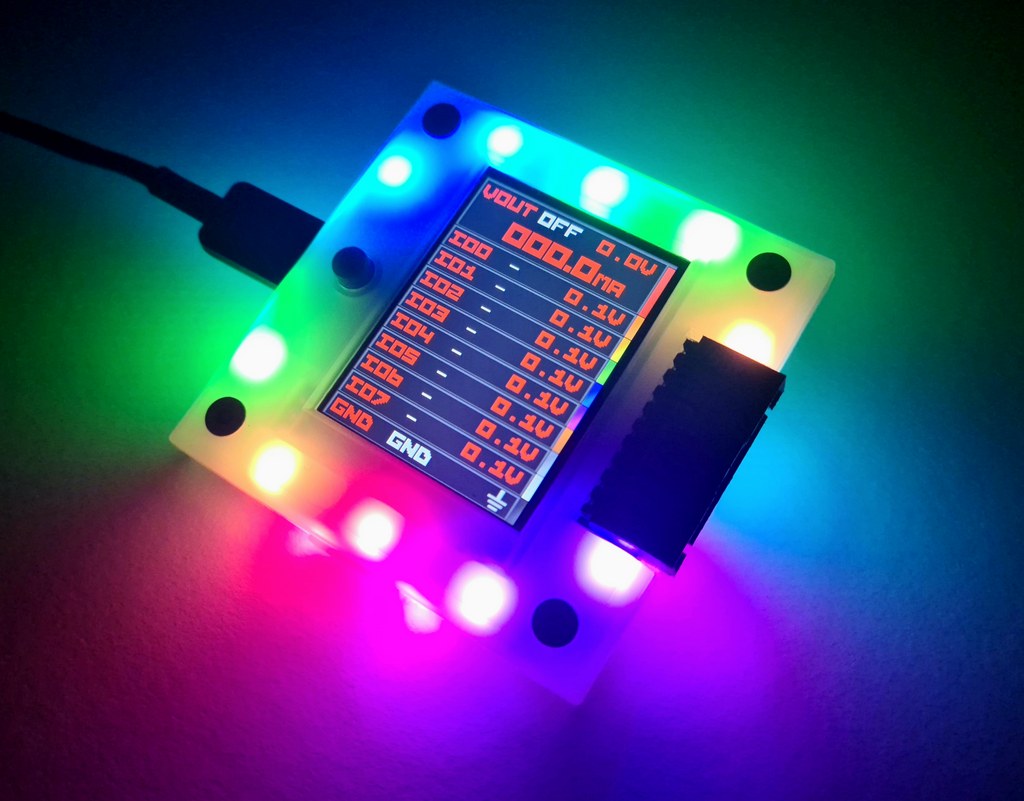

Sim rev3c, from the project README
From the project README

Main components on the Sim rev3c

SIM 6PSIM 8PQSE159

Sim rev3c bill of materials (BOM)

12 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SIM 6P
U1
1
SIM 8P
U2
1
QSE159
SIM 6P
U3
1
CONN_01X10
5145300-3
J1
1
CONN_01X10
Conn_01x10
J2
1
Conn_01x10
J3
2
SW_SPDT
SW1, SW2
1
LED
D1
1
VSLB3940
LED
D2
1
2K
R1
1
6R8
2K
R2

Sim rev3c design files

The KiCad project lives in the DangerousPrototypes/BusPirate5-hardware repository on GitHub; these links point at the commit this page was built from.

Sim rev3c: common questions

How big is the Sim rev3c PCB?

The Sim rev3c measures 40.1 × 58.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sim rev3c?

12 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Sim rev3c design files?

From the DangerousPrototypes/BusPirate5-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Sim rev3c design in my own project?

Yes, under the terms of its MIT license, which DangerousPrototypes chose for the repository.
