Workcross-ReverseCam PCB layout, top view — open source ESP32 board by db8fs

About the Workcross-ReverseCam PCB

Workcross-ReverseCam is an open source ESP32 PCB design by db8fs, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 112 × 64 mm, with 70 components from 42 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the LM1117MPX-5.0, LM1117MPX-3.3, TJA1051T and DS18B20. By type, the board carries 18 diodes, 17 resistors, 15 capacitors, 5 ICs, 5 connectors and 4 transistors.

It belongs with the iot & wireless designs in this gallery.

From the project

Workcross-ReverseCam ====================

Workcross-ReverseCam ====================

ESP32-based pcb for providing ESD-safe power supply for a wireless Reverse Camera for an AODES Workcross UTV.

Schematics and PCB are designed using KiCad9.

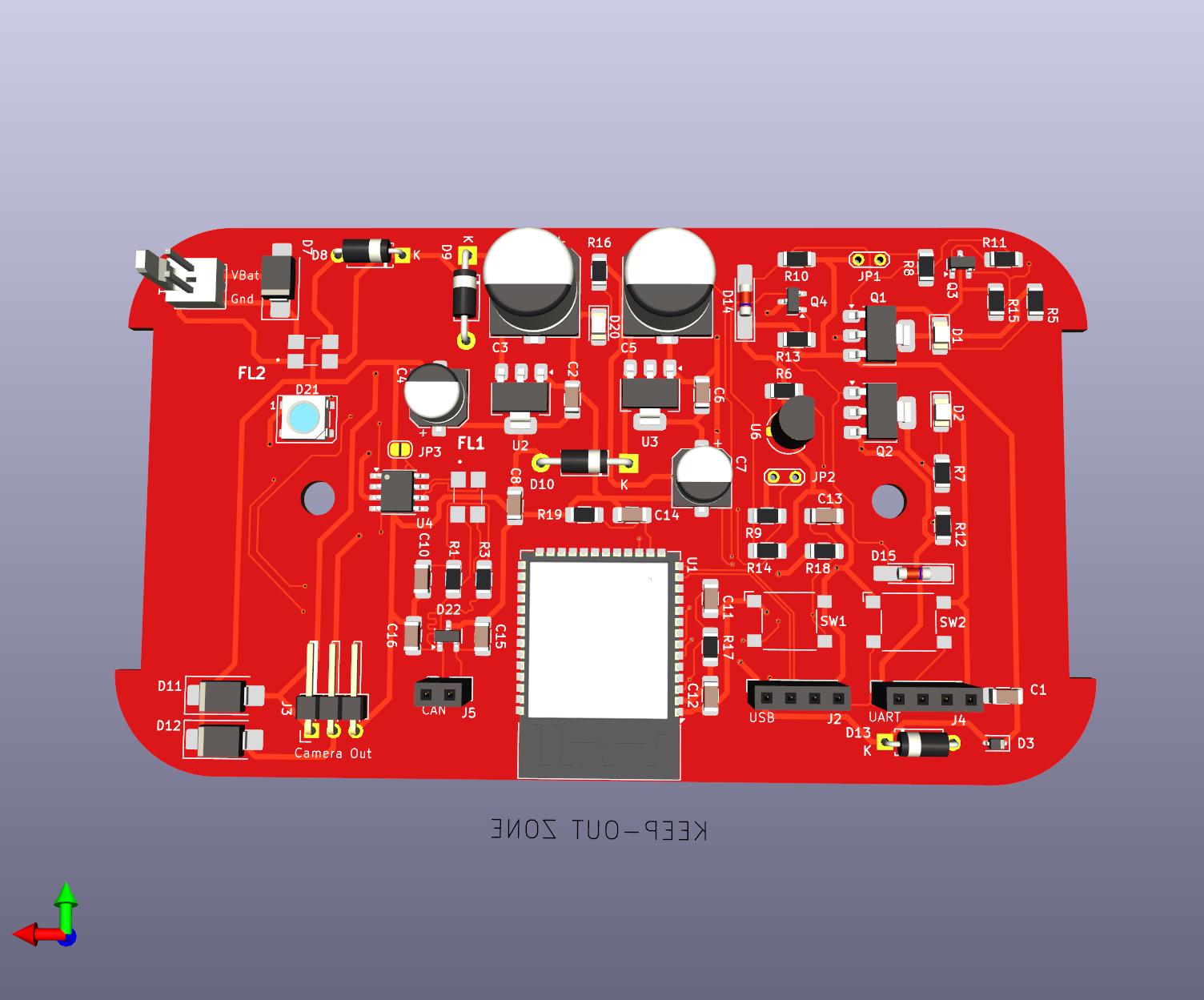

Workcross-ReverseCam, from the project README
From the project README

Main components on the Workcross-ReverseCam

ESP32-S3-WROOM-1LM1117MPX-5.0LM1117MPX-3.3TJA1051TDS18B20

Workcross-ReverseCam bill of materials (BOM)

70 components, 42 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1
U1
1
LM1117MPX-5.0
U2
1
LM1117MPX-3.3
U3
1
TJA1051T
U4
1
DS18B20
U6
2
IRFL9110
Q1, Q2
2
BC847C
Q3, Q4
1
Power
J1
1
USB
J2
1
Out
J3
1
UART
J4
1
CAN
J5
1
B82789S0223N002
FL1
1
B82789S0223N002
B82789C0104N002
FL2
1
J_FIXEDOUT_5V
J_FixedOut_5V
JP1
1
J_FIXEDOUT_3V3
J_FixedOut_3V3
JP2
1
IO0
SW1
1
CHIP_PU
SW2
2
LED
D1, D2
1
1N5819
D3
Show 22 more
QtyPartRefs
3
SMAJ5.0CA
D4, D5, D6
3
P6KE24CA
D7, D11, D12
2
BYW95A
D8, D13
2
1N4001
D9, D10
1
Uz=4.3V
D14
1
Uz=2.7V
D15
1
PowerLED
D20
1
WS2812B
D21
1
PESD1CAN
D22
1
10UF
10uF
C1
6
100NF
100nF
C2, C6, C8, C12, C13, C14
2
470UF
470uF
C3, C5
2
10UF
10uF
C4, C7
1
4.7NF
4.7nF
C10
1
1UF
1uF
C11
2
47PF
47pF
C15, C16
3
60R
R1, R3, R6
1
180
R5
2
100
R7, R16
2
1k
R8, R9
2
100K
100k
R10, R12
7
10K
10k
R11, R13, R14, R15, R17, R18, R19

Workcross-ReverseCam design files

The KiCad project lives in the db8fs/Workcross-ReverseCam repository on GitHub; these links point at the commit this page was built from.

Workcross-ReverseCam: common questions

What microcontroller does the Workcross-ReverseCam use?

The Workcross-ReverseCam is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the Workcross-ReverseCam PCB?

The Workcross-ReverseCam measures 112 × 64 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Workcross-ReverseCam?

70 components, from 42 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Workcross-ReverseCam design files?

From the db8fs/Workcross-ReverseCam repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Workcross-ReverseCam design in my own project?

Yes, under the terms of its GPL-3.0 license, which db8fs chose for the repository.

Can I test firmware for the Workcross-ReverseCam without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
