SST60HS

dededecline·SST60·Hotswap/KiCad/SST60HS.kicad_pcb

SST60HS PCB layout, top view — open source RP2040/RP2350 board by dededecline
Simulate this board

About the SST60HS PCB

SST60HS is an open source RP2040/RP2350 PCB design by dededecline, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 284.7 × 94.2 mm, with 160 components from 15 distinct parts.

Its main chip is the W25Q128JVS, from the RP2040/RP2350 family. Other key parts include the RP2040 and XC6206PXXXMR. By type, the board carries 69 switches, 64 diodes, 17 capacitors, 5 resistors, 3 ICs and 1 crystal.

It belongs with the keyboards designs in this gallery.

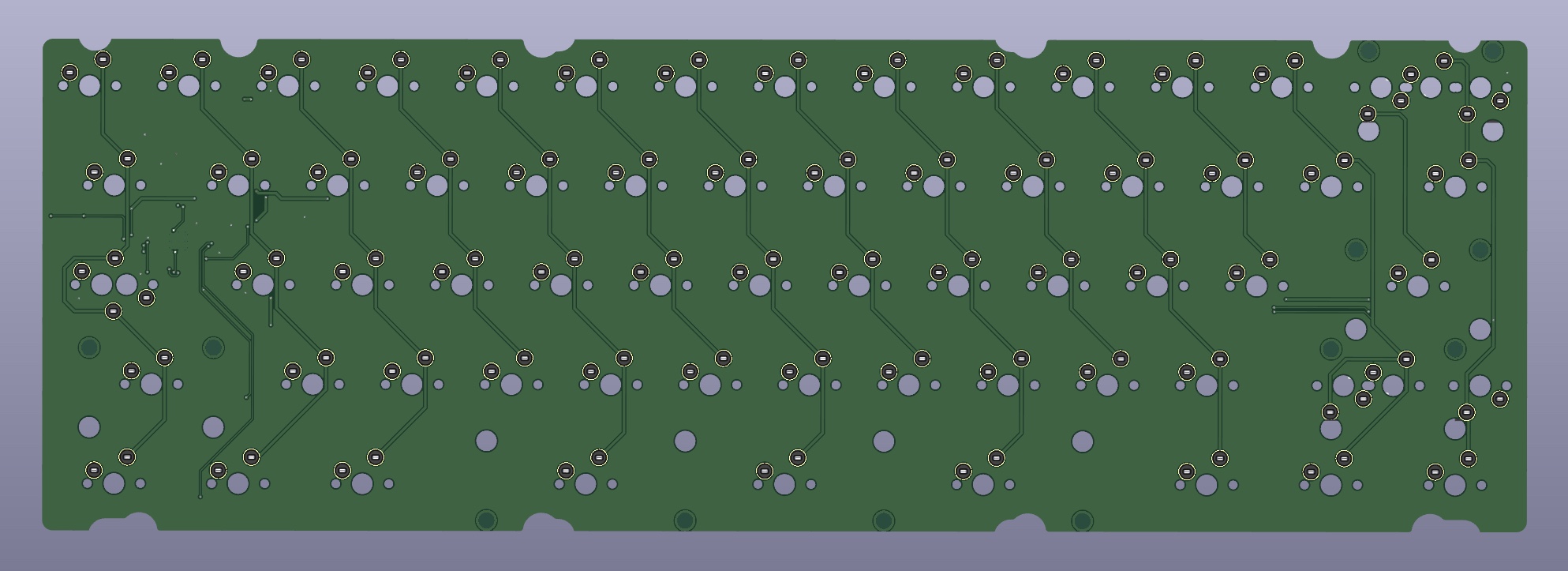

SST60HS, from the project README
From the project README

Main components on the SST60HS

W25Q128JVSRP2040XC6206PXXXMR

SST60HS bill of materials (BOM)

160 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
W25Q128JVS
U1
1
RP2040
U2
1
XC6206PXXXMR
XC6206PxxxMR
U3
1
12MHZ
12MHz
Y1
1
SM04B
J1
67
C5156480
MX_SW_HS
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +59
1
C318884
Boot
SW68
1
C318884
Reset
SW69
64
C64898
D_Small
D1, D2, D3, D4, D5, D6, D7, D8 +56
2
22PF
22pF
C1, C2
10
C1525
.1u
C3, C7, C8, C11, C12, C13, C14, C15 +2
4
1u
C4, C5, C6, C10
1
10U
10u
C9
3
1k
R1, R2, R5
2
27
R3, R4

SST60HS design files

The KiCad project lives in the dededecline/SST60 repository on GitHub; these links point at the commit this page was built from.

SST60HS: common questions

What microcontroller does the SST60HS use?

The SST60HS is built around the W25Q128JVS, from the RP2040/RP2350 family.

How big is the SST60HS PCB?

The SST60HS measures 284.7 × 94.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SST60HS?

160 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SST60HS design files?

From the dededecline/SST60 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SST60HS design in my own project?

Yes, under the terms of its GPL-3.0 license, which dededecline chose for the repository.

Can I test firmware for the SST60HS without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
