SST60 - Multi layout 60%

dededecline·SST60·KiCad Project Files/SST60.kicad_pcb

SST60 - Multi layout 60% PCB layout, top view — open source RP2040/RP2350 board by dededecline
Simulate this board

About the SST60 - Multi layout 60% PCB

SST60 - Multi layout 60% is an open source RP2040/RP2350 PCB design by dededecline, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 284.7 × 94.2 mm, with 136 components from 26 distinct parts.

Its main chip is the W25Q128JVS, from the RP2040/RP2350 family. Other key parts include the RP2040, XC6206PXXXMR, PRTR5V0U2X and 74AHCT1G125. By type, the board carries 84 diodes, 14 LEDs, 5 ICs, 2 switches, 1 crystal and 1 fuse.

It belongs with the keyboards designs in this gallery.

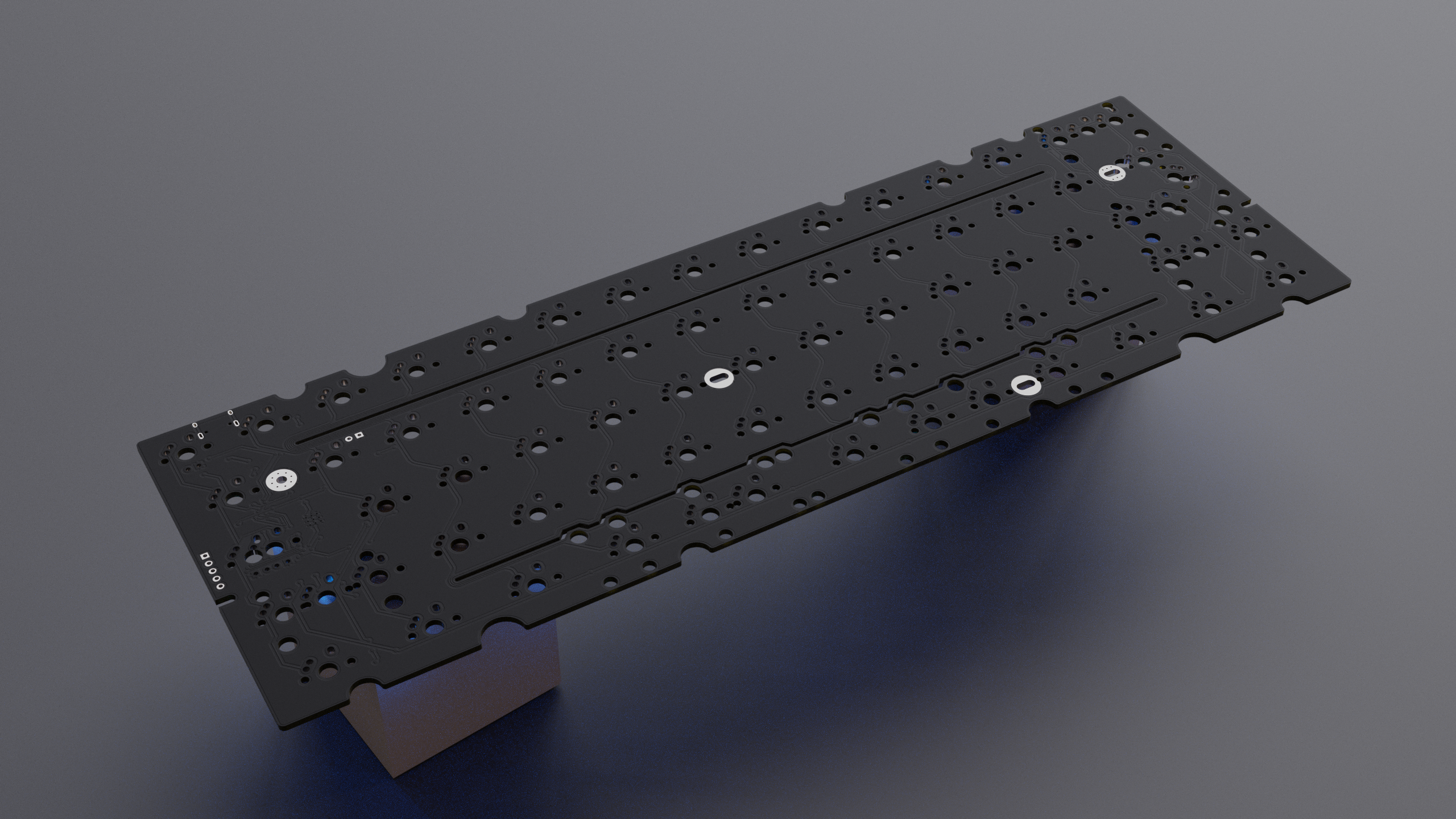

SST60 - Multi layout 60%, from the project README
From the project README

Main components on the SST60 - Multi layout 60%

W25Q128JVSRP2040XC6206PXXXMRPRTR5V0U2X74AHCT1G125

SST60 - Multi layout 60% bill of materials (BOM)

136 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
W25Q128JVS
RP2040
U1
1
RP2040
W25Q128JVS
U2
1
XC6206PXXXMR
XC6206PxxxMR
U3
1
PRTR5V0U2X
U4
1
74AHCT1G125
U5
1
12MHZ
12MHz
Y1
4
1u
C_1V-Decoup1, C_3V-Decoup2, C_LDO1, C_LDO2
10
.1u
C_1V-Decoup2, C_1V-Decoup3, C_3V-Decoup3, C_3V-Decoup4, C_3V-Decoup5, C_3V-Decoup6, C_3V-Decoup7, C_3V-Decoup8 +2
1
10u
C_3V-Decoup1
2
22pF
C_Crystal1, C_Crystal2
1
4.7n
C_Shield1
1
500mA
F1
3
1k
R_Crystal1, R_Flash1, R_RST1
2
27
R_DATA1, R_DATA2
2
220
R_LED1, R_LED2
1
1M
R_Shield1
2
5k1
R_USB1, R_USB2
1
C5156480
Boot
SW1
1
C5156480
Reset
SW2
1
HRO-TYPE-C-31-M-12
USB1
Show 6 more
QtyPartRefs
12
MX-NoLED
0, 1, 1u, 1u/7u/10u, 2, 3, 4, 5 +4
1
MX-NoLED
1.50u
1
MX-NoLED
3u Split
64
C64898
D_Small
D1, D2, D3, D4, D5, D6, D7, D8 +56
4
D_Small
D16, D31, D56, D68
16
WS2812B-2020
D69, D70, D71, D72, D73, D74, D75, D76 +8

SST60 - Multi layout 60% design files

The KiCad project lives in the dededecline/SST60 repository on GitHub; these links point at the commit this page was built from.

SST60 - Multi layout 60%: common questions

What microcontroller does the SST60 - Multi layout 60% use?

The SST60 - Multi layout 60% is built around the W25Q128JVS, from the RP2040/RP2350 family.

How big is the SST60 - Multi layout 60% PCB?

The SST60 - Multi layout 60% measures 284.7 × 94.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SST60 - Multi layout 60%?

136 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SST60 - Multi layout 60% design files?

From the dededecline/SST60 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SST60 - Multi layout 60% design in my own project?

Yes, under the terms of its GPL-3.0 license, which dededecline chose for the repository.

Can I test firmware for the SST60 - Multi layout 60% without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
