RANDY

dennowiggle·Retro-PETER·Hardware/RANDY/RANDY.kicad_pcb

RANDY PCB layout, top view — open source board by dennowiggle
Simulate this board

About the RANDY PCB

RANDY is an open source PCB design by dennowiggle, published on GitHub under the LGPL-2.1 license. It is a 4-layer board measuring 30 × 110 mm, with 6 components from 4 distinct parts.

By type, the board carries 4 capacitors and 2 connectors.

It belongs with the retro computing designs in this gallery.

From the project

3.3V Retro computer project => FPGA + RCBUS + CPU boards making a custom system.

1. The 'output' directory contains the BOM, netlist, and PDF schematic.

3. J2 changed to Samtec SSW-140-02-F-D-RA.

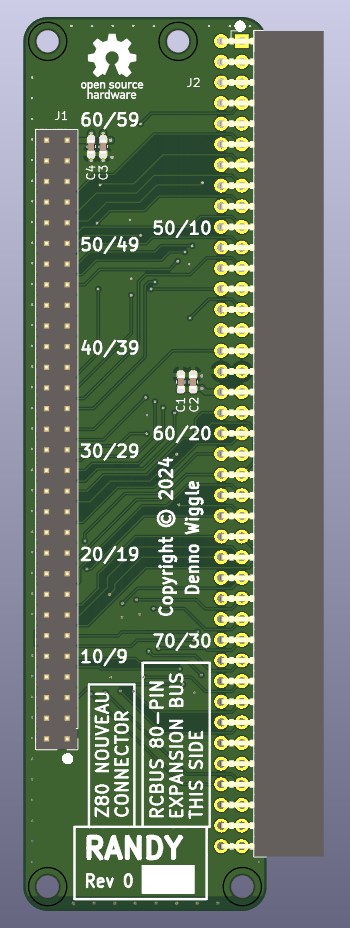

RANDY, from the project README
From the project README

RANDY bill of materials (BOM)

6 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
67996-160HLF
Conn_02x30_Odd_Even
Amphenol ICC
J1
1
SSW-140-02-T-D-RA
Conn_02x40_Top_Bottom
Samtec Inc.
J2
2
CL10A475KO8NNNC
4.7uF
Yaego
C1, C3
2
CC0603KRX7R9BB104
100nF
YAGEO
C2, C4

RANDY design files

The KiCad project lives in the dennowiggle/Retro-PETER repository on GitHub; these links point at the commit this page was built from.

RANDY: common questions

How big is the RANDY PCB?

The RANDY measures 30 × 110 mm, has 4 copper layers and is 1.60484 mm thick.

How many components are on the RANDY?

6 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RANDY design files?

From the dennowiggle/Retro-PETER repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RANDY design in my own project?

Yes, under the terms of its LGPL-2.1 license, which dennowiggle chose for the repository.
