About the GOLD PCB

GOLD is an open source PCB design by dennowiggle, published on GitHub under the LGPL-2.1 license. It is a 4-layer board measuring 51.2 × 34.5 mm, with 21 components from 5 distinct parts.

Other key parts include the SN74LVC245APWR. By type, the board carries 8 diodes, 8 resistors, 4 capacitors and 1 IC.

It belongs with the retro computing designs in this gallery.

From the project

3.3V Retro computer project => FPGA + RCBUS + CPU boards making a custom system.

1. The 'output' directory contains the BOM, netlist, and PDF schematic.

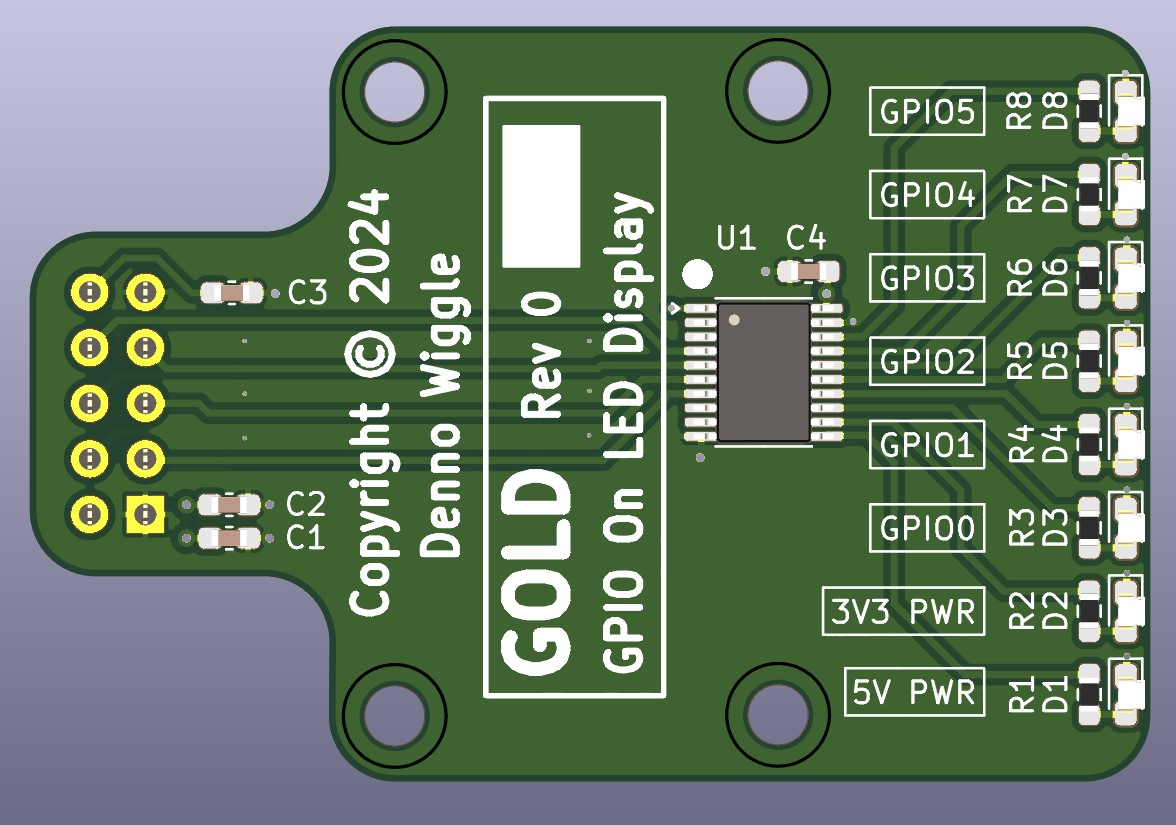

GOLD, from the project README
From the project README

Main components on the GOLD

SN74LVC245APWR

GOLD bill of materials (BOM)

21 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SN74LVC245APWR
Texas Instruments
U1
8
LTST-S270KGKT
LED_LTST-S270KGKT
Lite-On Inc.
D1, D2, D3, D4, D5, D6, D7, D8
1
CL10A475KO8NNNC
4.7uF
Yaego
C1
3
CC0603KRX7R9BB104
100nF
YAGEO
C2, C3, C4
8
RC0603FR-071KL
1K
Yaego
R1, R2, R3, R4, R5, R6, R7, R8

GOLD design files

The KiCad project lives in the dennowiggle/Retro-PETER repository on GitHub; these links point at the commit this page was built from.

GOLD: common questions

How big is the GOLD PCB?

The GOLD measures 51.2 × 34.5 mm, has 4 copper layers and is 1.60484 mm thick.

How many components are on the GOLD?

21 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the GOLD design files?

From the dennowiggle/Retro-PETER repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the GOLD design in my own project?

Yes, under the terms of its LGPL-2.1 license, which dennowiggle chose for the repository.
