SPIFEE

dennowiggle·Retro-PETER·Hardware/SPIFEE/SPIFEE.kicad_pcb

SPIFEE PCB layout, top view — open source board by dennowiggle
Simulate this board

About the SPIFEE PCB

SPIFEE is an open source PCB design by dennowiggle, published on GitHub under the LGPL-2.1 license. It is a 4-layer board measuring 101.6 × 49.9 mm, with 67 components from 15 distinct parts.

Other key parts include the 74LVC2G34GW,125, DS1086LU+, MC68SEC000FU20, 74LVC2G07GW,125 and 74LVC3G06SS8-7. By type, the board carries 37 resistors, 16 capacitors, 6 ICs, 5 diodes and 3 connectors.

It belongs with the retro computing designs in this gallery.

From the project

3.3V Retro computer project => FPGA + RCBUS + CPU boards making a custom system.

The purpose of the card is to use it to learn 68000 programming.

3. Jumper CPURESETN to CPUHALTN, RCBUS pin 20 to pin 63. If signals need to be separate then jumper CPUHALT_N to spare pin on PETER FPGA e.g. spare GPIO pin on PETER GPIO header.

4. If using a socket for the FLASH have the assembly house solder the socket, or use a hotplate and hot air. * If soldering the FLASH part directly it is possible to program a blank FLASH when soldered onto the board from a ROM image inside the FPGA to start. First need to develop the ROM image to do that.

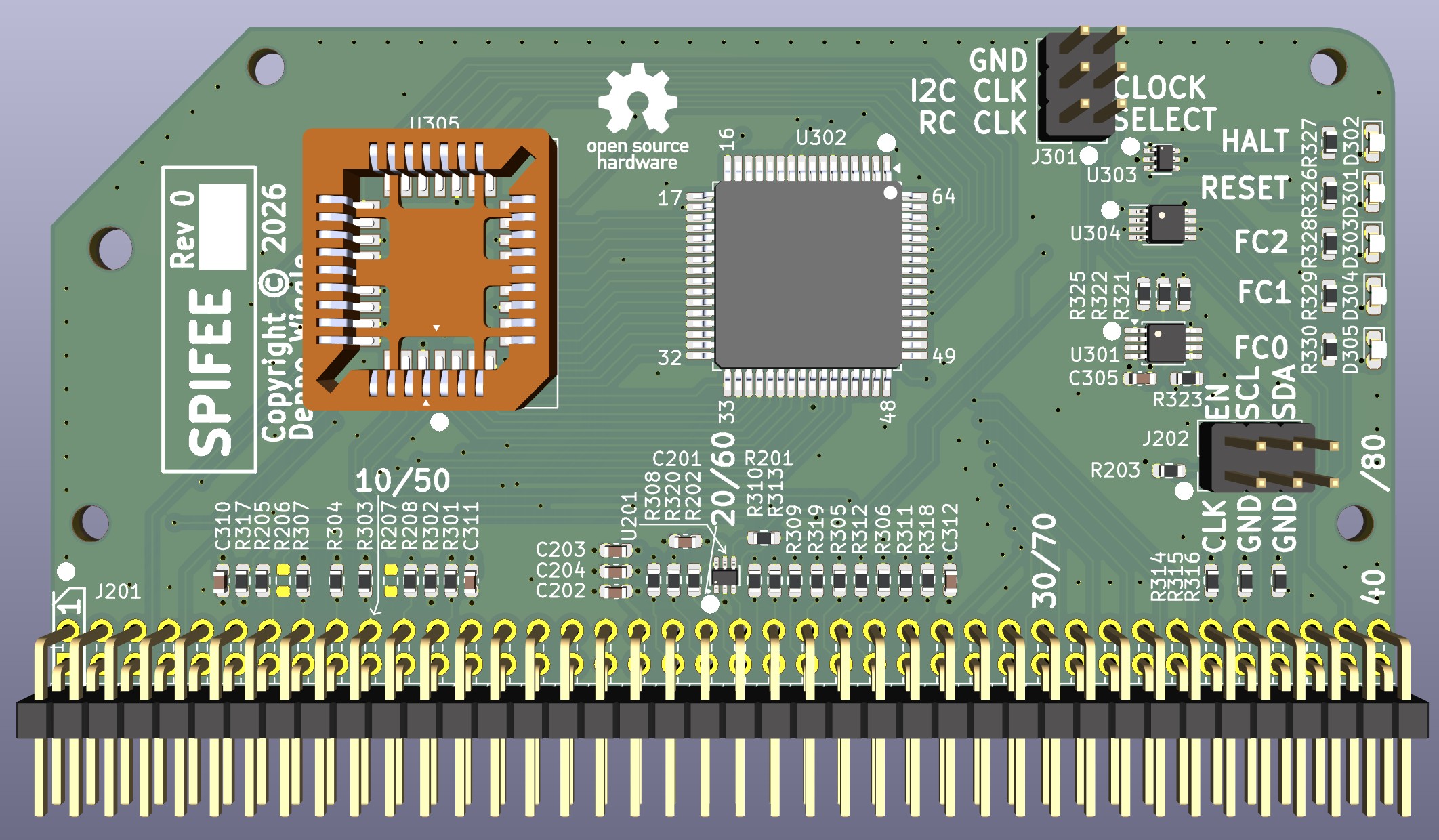

SPIFEE, from the project README
From the project README

Main components on the SPIFEE

74LVC2G34GW,125DS1086LU+MC68SEC000FU2074LVC2G07GW,12574LVC3G06SS8-7SST39LF040-55-4C-NHE

SPIFEE bill of materials (BOM)

67 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
74LVC2G34GW,125
74LVC2G34
Nexperia
U201
1
DS1086LU+
Analog Devices Inc./Maxim Integrated
U301
1
MC68SEC000FU20
MC68SEC000FU
Motorola
U302
1
74LVC2G07GW,125
74LVC2G07
Nexperia
U303
1
74LVC3G06SS8-7
74LVC3G06
Diodes Incorporated
U304
1
SST39LF040-55-4C-NHE
SST39SF040-55
Microchip
U305
1
PH2RA-80-UA
Conn_02x40_Top_Bottom
Adam Tech
J201
2
PH2-06-UA
Conn_02x03
Adam Tech
J202, J301
5
LTST-S270KGKT
LED_LTST-S270KGKT
Lite-On Inc.
D301, D302, D303, D304, D305
11
CC0603KRX7R9BB104
100nF
YAGEO
C201, C202, C301, C304, C305, C307, C308, C309 +3
5
CL10A475KO8NNNC
4.7uF
Yaego
C203, C204, C302, C303, C306
3
RC0603FR-0733RL
33R
Yaego
R201, R324, R325
5
RC0603JR-070RL
0R
Yaego
R202, R205, R206, R207, R208
6
RC0603FR-071KL
1K00
Yaego
R203, R326, R327, R328, R329, R330
23
RC0603FR-0710KL
10K
Yaego
R301, R302, R303, R304, R305, R306, R307, R308 +15

SPIFEE design files

The KiCad project lives in the dennowiggle/Retro-PETER repository on GitHub; these links point at the commit this page was built from.

SPIFEE: common questions

How big is the SPIFEE PCB?

The SPIFEE measures 101.6 × 49.9 mm, has 4 copper layers and is 1.60484 mm thick.

How many components are on the SPIFEE?

67 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SPIFEE design files?

From the dennowiggle/Retro-PETER repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SPIFEE design in my own project?

Yes, under the terms of its LGPL-2.1 license, which dennowiggle chose for the repository.
