Grove - Vision AI Module V2

dhirptl·MacroPad·PCB/OPL_Kicad_Library-master/OPL_Kicad_Library-master/Grove Vision AI V2 Library/Grove - Vision AI Module V2.kicad_pcb

Grove - Vision AI Module V2 layout, top view — open source board by dhirptl

Simulate this board

About the Grove - Vision AI Module V2

Grove - Vision AI Module V2 is an open source PCB design by dhirptl, published on GitHub under the MIT license. It is a 4-layer board measuring 40 × 20 mm, with 112 components from 38 distinct parts.

Other key parts include the HX6538, CH343P, WR0331-18FF4R, SY80004DQD and W25Q128JWSIQ. By type, the board carries 40 resistors, 36 capacitors, 8 diodes, 6 ICs, 5 transistors and 4 connectors.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

MacroPad designed with KiCad and Fusion360

A custom 4-key macropad with 2 rotary encoders and an OLED display, powered by the Seeed XIAO RP2040. Designed with KiCad, Fusion360 and VsCode ## Bill of Materials (BOM) 1x Seeed XIAO RP2040 4x Cherry MX-style Switches 2x EC11 Rotary Encoders 1x 0.91" OLED Display (I2C) 2x SK6812 MINI-E LEDs 1x 3D Printed Case

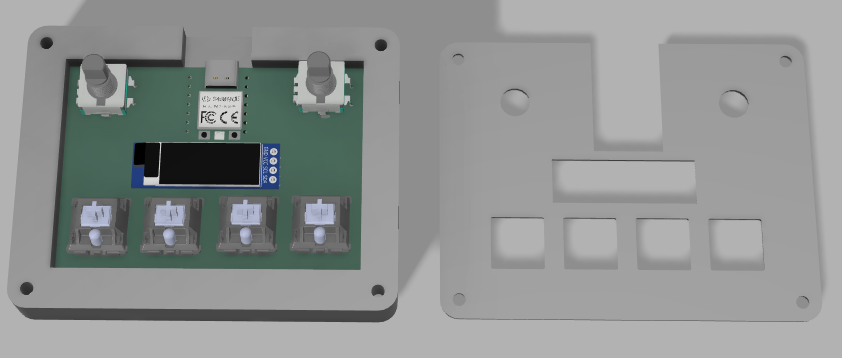

A view of the 3D printed enclosure designed in Fusion 360.

Grove - Vision AI Module V2, from the project README — From the project README

Main components on the Grove - Vision AI Module V2

HX6538 CH343P WR0331-18FF4R SY80004DQD W25Q128JWSIQ

Grove - Vision AI Module V2 bill of materials (BOM)

112 components, 38 distinct parts.

Qty	Part	Footprint	Refs
1	HX6538	WLCSP65_5.6x2.3x0.56mm	U1
1	CH343P	QFN-16-EP_3x3mm_P0.5mm_EP1x1mm	U2
1	WR0331-18FF4R	X2SON-4	U3
2	SY80004DQD SILERGY	DFN6-0.5-1.5X1.5X0.65MM	U4, U6
1	W25Q128JWSIQ	SOIC-8_5.23x5.23mm_P1.27mm	U5
1	XIAO Connector/DNP	XIAO_Socket	M1
5	CJ1012	SOT523	Q1, Q2, Q3, Q4, Q5
1	24MHz	4P2016	X1
1	USB_C_Receptacle_USB2.0	USB2.0-TYPE-C	J1
1	Conn_01x15_MountingPin	FPC_DNC_15P_1.0mm	J2
1	Conn_01x04_MountingPin	4P-SMD-2.0mm-RIGHT	J3
1	SD-TF-MR267 ST-TF-MR267 商祺电子	SD-TF-MR267	J5
2	SW_Push	SW_Push_1P1T_NO_Vertical_Wuerth_434133025816	BOOT1, RST1
1	MSM261D3526H1CPM	MIC6P-3.5X2.65X0.94MM	MIC1
3	Test Point	TP-D35MIL	TP1, TP2, TP3
1	Yellow	LED0402	LED1
1	Green	LED0402	LED2
4	B5819WS	D0805_SOD323	D1, D2, D3, D4
4	DF2S6.8FS DNP	R0402	D5, D6, D7, D8
1	VLS201610HBX-4R7M-1	L0806	L1

Show 18 more

Qty	Part	Footprint	Refs
2	470nH	L0603	L2, L3
5	1uF	C0402	C1, C2, C17, C18, C19
1	10nF	C0402	C3
7	4.7uF	C0402	C4, C6, C7, C9, C10, C28, C34
18	100nF	C0402	C5, C8, C13, C20, C21, C22, C23, C24 +10
2	10uF	C0402	C11, C37
2	12pF	C0402	C14, C15
1	220nF	C0402	C16
10	2.2k	R0402	R1, R4, R13, R14, R15, R19, R20, R21 +2
3	5.1k	R0402	R2, R3, R36
4	10k	R0402	R5, R7, R23, R24
4	RC0402JR-074K7L 100K YAGEO	R0402	R6, R16, R32, R33
3	RC0402JR-074K7L 10K YAGEO	R0402	R8, R31, R38
7	DNP	R0402	R9, R12, R17, R18, R25, R27, R28
3	100k	R0402	R10, R11, R37
2	RC0402JR-074K7L 22K YAGEO	R0402	R26, R34
3	0R	R0402	R29, R30, R39
1	510k	R0402	R35

Grove - Vision AI Module V2 design files

The KiCad project lives in the dhirptl/MacroPad repository on GitHub; these links point at the commit this page was built from.

Grove - Vision AI Module V2: common questions

How big is the Grove - Vision AI Module V2?

The Grove - Vision AI Module V2 measures 40 × 20 mm, has 4 copper layers and is 1.1962 mm thick.

How many components are on the Grove - Vision AI Module V2?

112 components, from 38 distinct parts. The full bill of materials is listed on this page.

Where can I download the Grove - Vision AI Module V2 design files?

From the dhirptl/MacroPad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Grove - Vision AI Module V2 design in my own project?

Yes, under the terms of its MIT license, which dhirptl chose for the repository.
