OpenLST PCB layout, top view — open source board by diegosvs
Simulate this board

About the OpenLST PCB

OpenLST is an open source PCB design by diegosvs, published on GitHub. It is a 4-layer board measuring 60 × 50 mm, with 86 components from 35 distinct parts.

Other key parts include the LM1117IMP-3.3/NOPB, CC1110F32RHHR, LT1086-3.6, FT5HNBPK27.0-T1 and TLV803SDBZR. By type, the board carries 34 resistors, 30 capacitors, 8 ICs, 6 connectors, 5 inductors and 3 diodes.

It belongs with the rf & radio designs in this gallery.

From the project

The OpenLST transceiver is approximately six by five centimeters with a mass of 20 grams. This radio operates on the UHF band and provides 3.5 kilobit per second user data rates. The design also provides time-of-flight ranging that can be used to estimate link distance. Full design files, including schematics, bill of materials, and layout are available by cloning the git repos at the links below.

OpenLST Reference Hardware ==========================

This repository contains a KiCad project with a hardware reference implementation for the OpenLST. This design is a simplified version of the Texas Instruments CC1110 432 MHz reference design. A 1 watt power amplifier module has been added to increase operating range. The design is intended for use at 437 MHz, however, it may be modified for use at other frequencies.

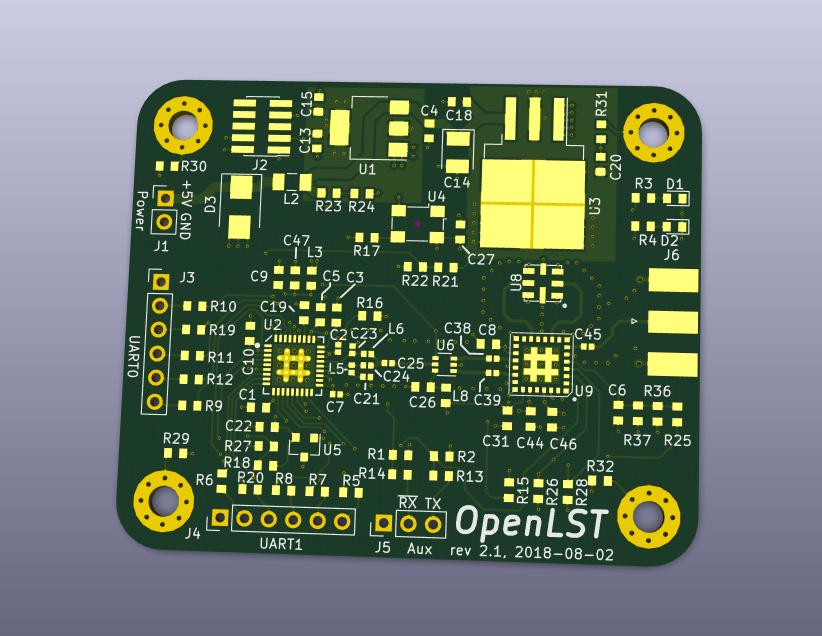

OpenLST, from the project README
From the project README

Main components on the OpenLST

LM1117IMP-3.3/NOPBCC1110F32RHHRLT1086-3.6FT5HNBPK27.0-T1TLV803SDBZR4259-63STA1120ARFFM6403SB

OpenLST bill of materials (BOM)

86 components, 35 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LM1117IMP-3.3/NOPB
LM1117-3.3
U1
1
CC1110F32RHHR
CC1110
U2
1
LT1086-3.6
U3
1
FT5HNBPK27.0-T1
FOX924 27MHz
U4
1
TLV803SDBZR
TLV803S
U5
1
4259-63
PE4259
U6
1
STA1120A
U8
1
RFFM6403SB
RFFM6403
U9
1
5VDC
J1
1
FTSH-105-01-L-DV-K-P
CC Prog/Debug
J2
1
61300611121
UART0
J3
1
61300611121
UART1
J4
1
Control Outputs
J5
1
732511150
ANT
J6
1
150060VS75000
LED
D1
1
150060SS75000
LED
D2
1
STPS340U
D3
1
MI1206L501R-10
Z=500 @ 100M
L2
2
74279266
Z=1k @ 100M
L3, L8
2
LQW15AN27NJ00D
27n
L5, L6
Show 15 more
QtyPartRefs
10
0603YC104K4T4A
0.1u
C1, C3, C5, C6, C8, C10, C15, C26 +2
7
C0402C221J2GACAUTO
220p
C2, C7, C21, C25, C38, C39, C45
4
GRT188C81A106ME13D
10u
C4, C13, C18, C20
4
CL10B105MO8NNWC
1u
C9, C44, C46, C47
1
TPSB107M010R0400
100u
C14
2
GCM188R71E102KA37D
1n
C19, C22
2
GJM1555C1H3R9CB01D
3.9p
C23, C24
7
RC0603JR-071KL
1K
R1, R2, R3, R4, R18, R26, R28
11
AC0603FR-07100RL
100
R5, R6, R7, R8, R9, R10, R11, R12 +3
8
DNI
R15, R19, R20, R25, R29, R30, R31, R32
1
RMCF0603FT56K0
56K
R16
3
AC0603FR-0733KL
33K
R21, R23, R27
2
RC0603JR-0710KL
10K
R22, R24
1
RMCF0603FT5K60
5K6
R36
1
RMCF0603FT3K30
3K3
R37

OpenLST design files

The KiCad project lives in the diegosvs/openLST repository on GitHub; these links point at the commit this page was built from.

OpenLST: common questions

How big is the OpenLST PCB?

The OpenLST measures 60 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the OpenLST?

86 components, from 35 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the OpenLST design files?

From the diegosvs/openLST repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the OpenLST design in my own project?

The repository has no license, so all rights stay with diegosvs. Use it as a reference, and ask the author before reusing the design.
