Diva card

About the Diva card PCB

Diva card is an open source RP2040/RP2350 PCB design by diva-eng, published on GitHub under the MIT license. It is a 2-layer board measuring 85.4 × 53.7 mm, with 92 components from 25 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AP2112K-3.3, ATECC608A-MAHDA and W25Q128XXX. By type, the board carries 40 inductors, 24 capacitors, 15 resistors, 4 ICs, 3 connectors and 3 switches.

It belongs with the dev boards & breakouts and displays & leds designs in this gallery.

From the project

Raspberry Pi 2040 based development board/card

Raspberry RP2040 based development board/card with builtin LED matrix

See the example firmware and build instructions in fw/README.md.

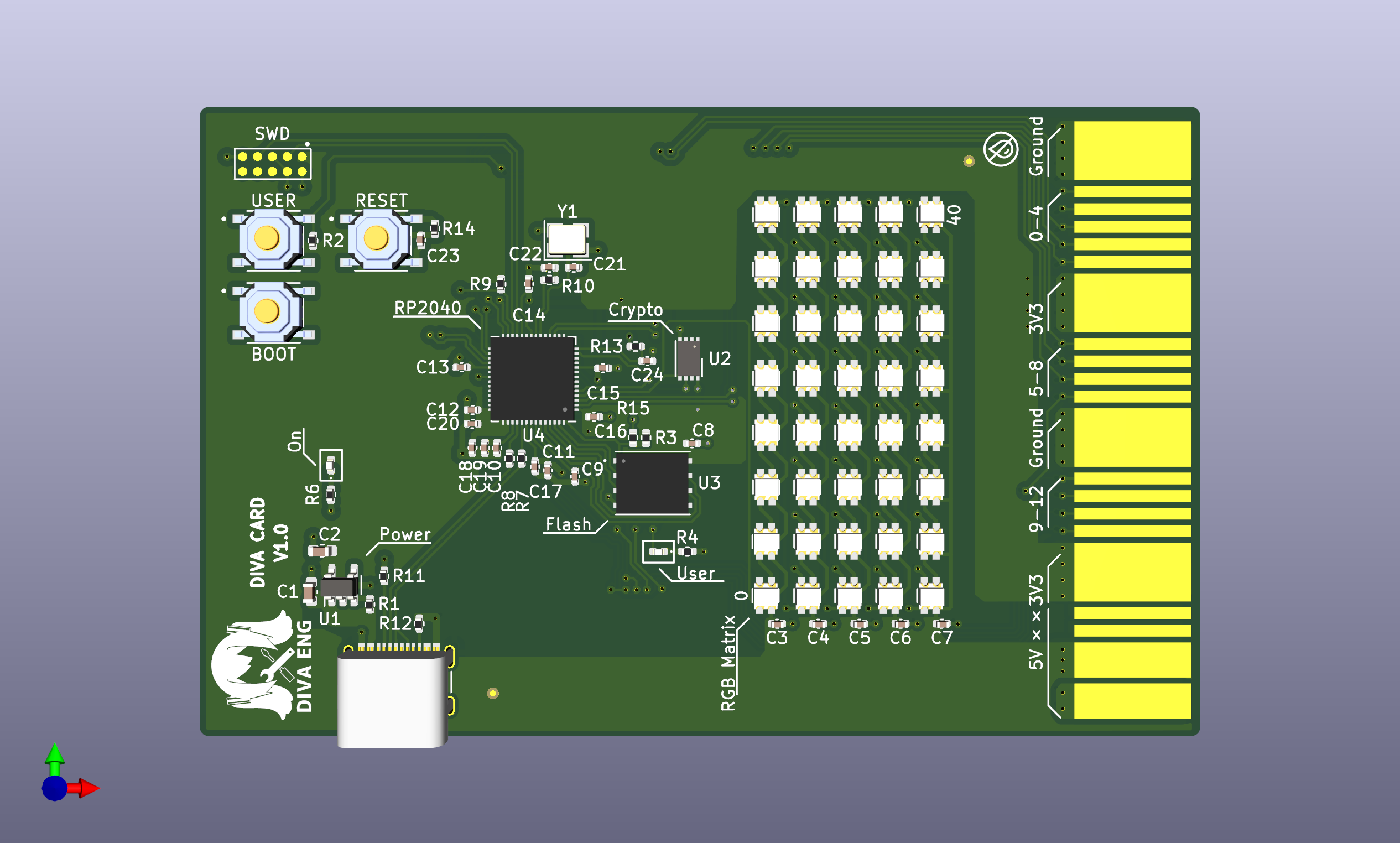

Diva card, from the project README — From the project README

Main components on the Diva card

AP2112K-3.3 ATECC608A-MAHDA W25Q128XXX RP2040

Diva card bill of materials (BOM)

92 components, 25 distinct parts.

Qty	Part	Footprint	Refs
1	AP2112K-3.3	SOT-23-5	U1
1	ATECC608A-MAHDA	DFN-8-1EP_3x2mm_P0.5mm_EP1.3x1.5mm	U2
1	W25Q128XXX	W25Q128JVPIQ TR	U3
1	RP2040	RP2040-QFN-56	U4
1	X322512MSB4SI	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	Conn_02x05_Odd_Even	Tag-Connect_TC2050-IDC-NL_2x05_P1.27mm_Vertical	J1
1	USB_C_Receptacle_USB2.0	USB_C_Receptacle_Palconn_UTC16-G	J2
1	Conn_02x21_Odd_Even	PICO_CARD_EDGE_21	J3
1	USER	SW_TS-1187A-B-A-B	SW1
1	BOOTSEL	SW_TS-1187A-B-A-B	SW2
1	RESET	SW_TS-1187A-B-A-B	SW3
1	EMERALD	LED_0402_1005Metric	D1
1	WHITE	LED_0402_1005Metric	D2
40	WS2812C	WS2812C-2020	L1, L2, L3, L4, L5, L6, L7, L8 +32
2	10u	C_0603_1608Metric	C1, C2
16	100n	C_0402_1005Metric	C3, C4, C5, C6, C7, C8, C9, C10 +8
4	1u	C_0402_1005Metric	C19, C20, C23, C24
2	33p	C_0402_1005Metric	C21, C22
5	10k	R_0402_1005Metric	R1, R2, R3, R9, R13
2	1k5	R_0402_1005Metric	R4, R6

Show 5 more

Qty	Part	Footprint	Refs
2	4.7k	R_0402_1005Metric	R5, R16
2	27	R_0402_1005Metric	R7, R8
1	100	R_0402_1005Metric	R10
2	5k1	R_0402_1005Metric	R11, R12
1	1K	R_0402_1005Metric	R15

Diva card design files

The KiCad project lives in the diva-eng/diva-card repository on GitHub; these links point at the commit this page was built from.

Layoutdiva-card.kicad_pcb
Schematicdiva-card.kicad_sch

Diva card: common questions

What microcontroller does the Diva card use?

The Diva card is built around the RP2040, from the RP2040/RP2350 family.

How big is the Diva card PCB?

The Diva card measures 85.4 × 53.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Diva card?

92 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Diva card design files?

From the diva-eng/diva-card repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Diva card design in my own project?

Yes, under the terms of its MIT license, which diva-eng chose for the repository.

Can I test firmware for the Diva card without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
