1802-Mini-Compact-Flash

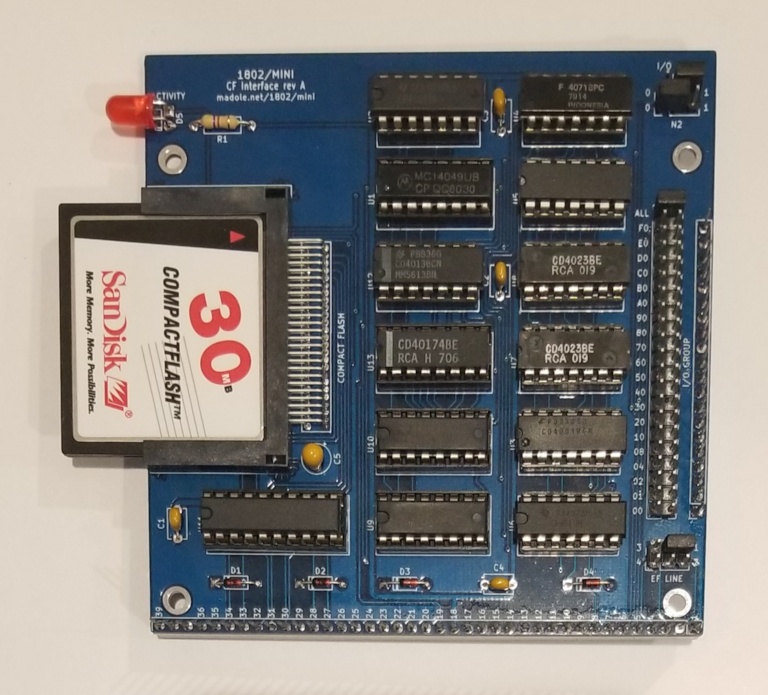

About the 1802-Mini-Compact-Flash PCB
1802-Mini-Compact-Flash is an open source PCB design by dmadole, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 36 components from 21 distinct parts.
Other key parts include the 4049, 4002, 4001, 4071 and 4011. By type, the board carries 13 ICs, 8 connectors, 5 diodes, 5 capacitors, 4 jumpers and 1 resistor.
From the project
Has on-board compact flash socket, no adapters are needed Software compatible with Mike Riley's IDE interface design Runs Elf/OS using standard Pico/Elf ROMs and software Jumper selectable for I/O ports 2 & 3, 4 & 5, or 6 & 7 Jumper selectable interrupt flag or status signal to E
Has on-board compact flash socket, no adapters are needed Software compatible with Mike Riley's IDE interface design Runs Elf/OS using standard Pico/Elf ROMs and software Jumper selectable for I/O ports 2 & 3, 4 & 5, or 6 & 7 Jumper selectable interrupt flag or status signal to EF1-4 I/O group selection in system equipped with expander card Supports DMA operation with 10x accelerated transfer rate Supports interrupt-driven operation for multi-tasking OS Compact flash completely buffer-isolated from expansion bus Activity indicator LED provided as driven by CF card Highly annotated silkscreen…
Main components on the 1802-Mini-Compact-Flash
1802-Mini-Compact-Flash bill of materials (BOM)
36 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 4049 | DIP-16_W7.62mm_Socket | U1 |
| 1 | 4002 | DIP-14_W7.62mm_Socket | U2 |
| 1 | 4001 | DIP-14_W7.62mm_Socket | U3 |
| 1 | 4071 | DIP-14_W7.62mm_Socket | U4 |
| 2 | 4011 | DIP-14_W7.62mm_Socket | U5, U6 |
| 2 | 4023 | DIP-14_W7.62mm_Socket | U7, U8 |
| 2 | 40103 | DIP-16_W7.62mm_Socket | U9, U10 |
| 1 | 40245 | DIP-20_W7.62mm_Socket | U11 |
| 1 | 4013 | DIP-14_W7.62mm_Socket | U12 |
| 1 | 40174 | DIP-16_W7.62mm_Socket | U13 |
| 4 | Mount | 1pin | J1, J2, J3, J4 |
| 1 | Expansion | Pin_Header_Straight_1x39_Pitch2.54mm | J5 |
| 1 | Conn_01x20 | PinSocket_1x20_P2.54mm_Vertical | J6 |
| 1 | CF | samtec | J7 |
| 1 | Conn_02x21_Odd_Even | PinHeader_2x21_P2.54mm_Vertical | J8 |
| 4 | Jumper_3_Bridged12 | PinHeader_1x03_P2.54mm_Vertical | JP1, JP2, JP3, JP4 |
| 4 | 4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4 |
| 1 | LED | LED_D3.0mm_Horizontal_O1.27mm_Z2.0mm | D5 |
| 4 | 0.1u | C_Disc_D5.1mm_W3.2mm_P5.00mm | C1, C2, C3, C4 |
| 1 | 10u | CP_Radial_Tantal_D5.0mm_P2.50mm | C5 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 470 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
1802-Mini-Compact-Flash design files
The KiCad project lives in the dmadole/1802-Mini-Compact-Flash repository on GitHub; these links point at the commit this page was built from.
1802-Mini-Compact-Flash: common questions
How big is the 1802-Mini-Compact-Flash PCB?
The 1802-Mini-Compact-Flash measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 1802-Mini-Compact-Flash?
36 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 1802-Mini-Compact-Flash design files?
From the dmadole/1802-Mini-Compact-Flash repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the 1802-Mini-Compact-Flash design in my own project?
The repository has no license, so all rights stay with dmadole. Use it as a reference, and ask the author before reusing the design.
