Thesis PCB layout, top view — open source Raspberry Pi board by Dylancyclone

About the Thesis PCB

Thesis is an open source Raspberry Pi PCB design by Dylancyclone, published on GitHub. It is a 2-layer board measuring 158.3 × 110 mm, with 78 components from 44 distinct parts.

Its main chip is the ComputeModule4-CM4, from the Raspberry Pi family. Other key parts include the TPS61090RSAR, MCP73871-2CCI/ML, 74LVC1G07, RT9742VGJ5 and RT9742ENGJ5. By type, the board carries 25 resistors, 23 capacitors, 10 connectors, 9 ICs, 6 diodes and 1 transistor.

From the project

Undergraduate Honors thesis for graduation in 2022

Watch a timelapse of the paper here: https://youtu.be/VJ2HCxnmA_Y

With the recent focus of attention towards remote work and mobile computing, the possibility of taking a powerful workstation wherever needed is enticing. However, even emerging laptops today struggle to compete with desktops in terms of cost, maintenance, and future upgrades. The price point of a powerful laptop is considerably higher compared to an equally powerful desktop computer, and most laptops are manufactured in a way that makes upgrading parts of the machine difficult or impossible, forcing a complete purchase in the…

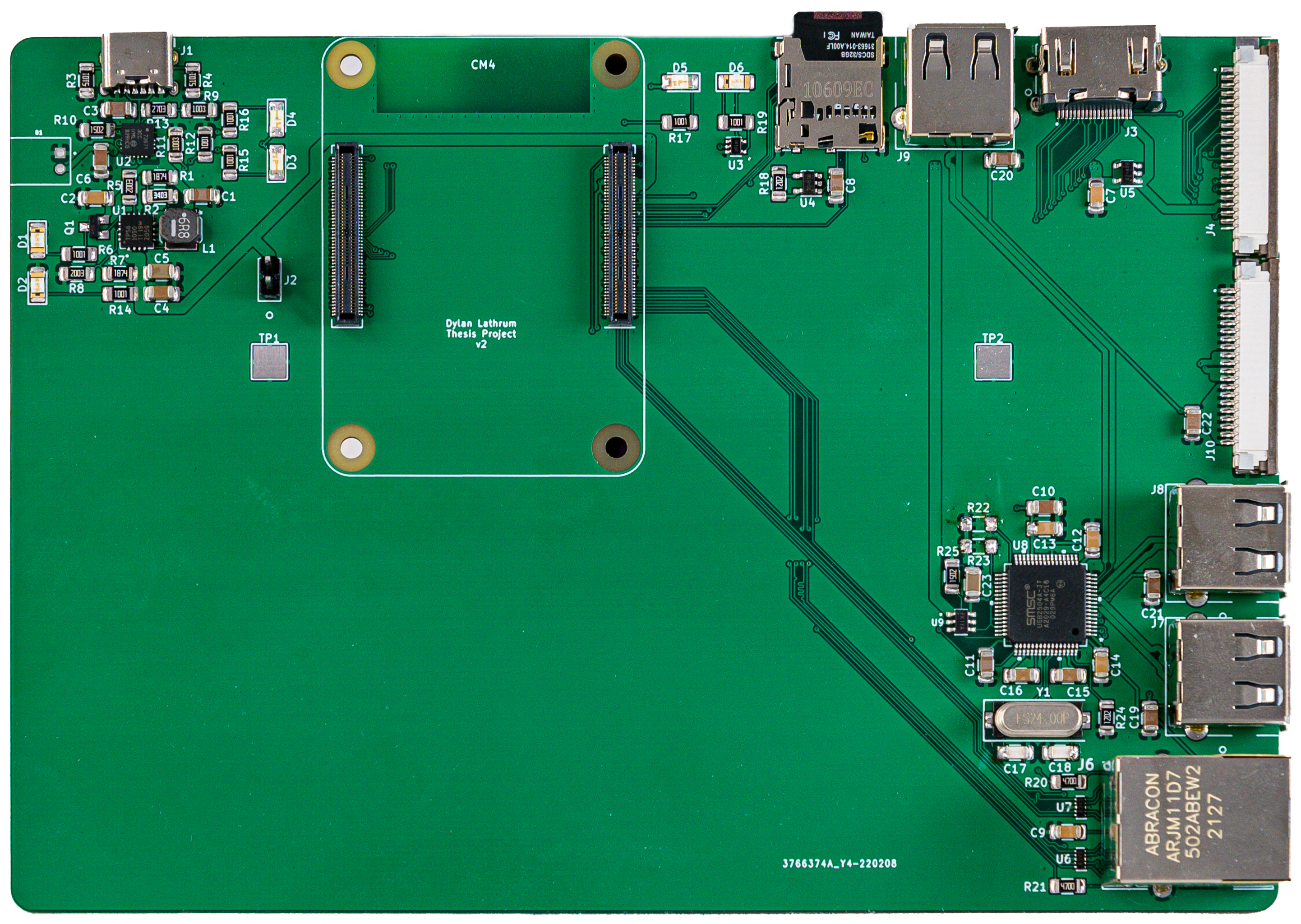

Thesis, from the project README
From the project README

Main components on the Thesis

TPS61090RSARMCP73871-2CCI/ML74LVC1G07RT9742VGJ5RT9742ENGJ5TPD4EUSB30USB2504A-JTAP22653W6-7

Thesis bill of materials (BOM)

78 components, 44 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS61090RSAR
U1
1
MCP73871-2CCI/ML
MCP73871-2CCI_ML
Microchip Technology
U2
1
74LVC1G07
U3
1
RT9742VGJ5
U4
1
RT9742ENGJ5
U5
2
TPD4EUSB30
U6, U7
1
USB2504A-JT
U8
1
AP22653W6-7
U9
1
MMUN2133LT1G
Q1
1
24MHz
Y1
1
USB4125-GF-A_REVA2
J1
1
PREC002SAAN-RC
J2
1
SS-53000-001
J3
2
FFC3B07-20-T
J4, J10
1
Micro_SD_Card_Det
J5
1
ARJM11D7-502-AB-EW2
J6
3
SS-52100-001
J7, J8, J9
1
JST 2-PH
B1
1
ComputeModule4-CM4
CM4
3
Red
D1, D2, D6
Show 24 more
QtyPartRefs
2
Green
D3, D5
1
Orange
D4
1
6.8uH
L1
3
10uF
C1, C3, C6
1
0.1uF
C2
1
2.2uF
C4
2
100uF
C5, C23
5
100n
C7, C9, C12, C13, C14
7
10u
C8, C10, C11, C19, C20, C21, C22
2
4.7uF
C15, C16
2
27pF
C17, C18
2
1.87M
R1, R7
1
340k
R2
2
5.1k
R3, R4
2
200k
R5, R8
6
1k
R6, R14, R15, R16, R17, R19
2
100k
R9, R11
1
15k
R10
1
1.0k
R12
1
270k
R13
2
12K 1%
R18, R24
2
470R
R20, R21
2
36K 1%
R22, R23
1
15K 1%
R25

Thesis design files

The KiCad project lives in the Dylancyclone/thesis repository on GitHub; these links point at the commit this page was built from.

Thesis: common questions

What microcontroller does the Thesis use?

The Thesis is built around the ComputeModule4-CM4, from the Raspberry Pi family.

How big is the Thesis PCB?

The Thesis measures 158.3 × 110 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Thesis?

78 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
