Black Body Heater Control

DylanLockyer·Black_Body·Circuit Boards/Black_Body_Heater_Control_PCB/Black_Body_Heater_Control.kicad_pcb

Black Body Heater Control PCB layout, top view — open source ESP32 board by DylanLockyer

About the Black Body Heater Control PCB

Black Body Heater Control is an open source ESP32 PCB design by DylanLockyer, published on GitHub under the MIT license. It is a 2-layer board measuring 57.5 × 42.8 mm, with 49 components from 29 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N8R8, from the ESP32 family. Other key parts include the AMS1117-3.3, USBLC6-2SC6, DAC60501ZDGSR, INA181A2IDBVR and TPSM84209RKHR. By type, the board carries 19 resistors, 13 capacitors, 7 ICs, 4 connectors, 3 diodes and 2 switches.

It belongs with the test & measurement, iot & wireless and power & battery designs in this gallery.

From the project

Electrical system for black body MKID tester

Two-layer circuit board carrying the ESP32 microcontroller and all heater control electronics: current source, voltage/current sensing, and power supply. See the firmware README for how this board is driven, and the root README for overall project context.

Schematic: BlackBodyHeaterControlSchematic.pdf

The original design used an N-channel MOSFET with PWM to control heater voltage. Due to concerns about PWM noise interfering with the sensor board's measurements, this was replaced with an analog current source instead.

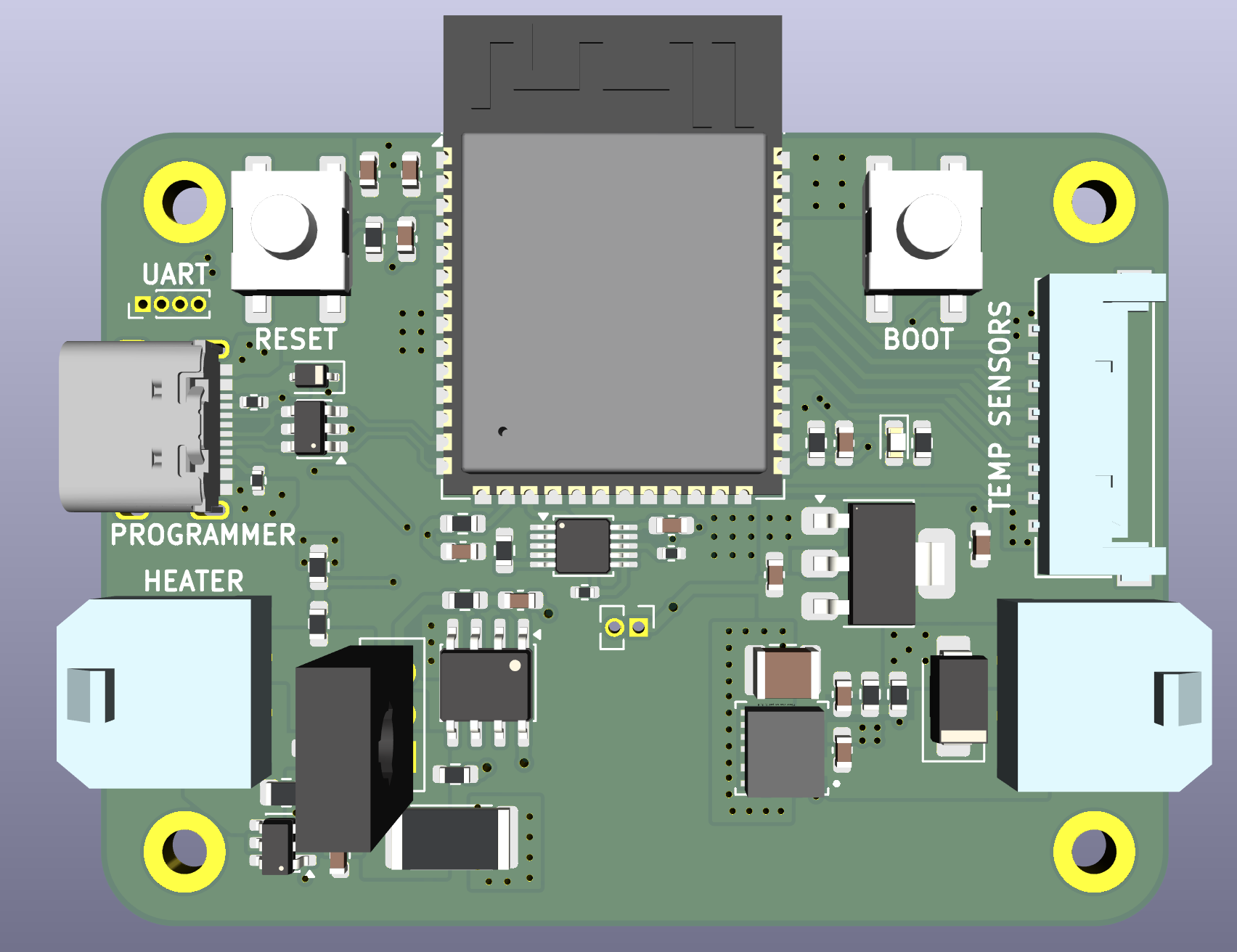

Black Body Heater Control, from the project README
From the project README

Main components on the Black Body Heater Control

AMS1117-3.3ESP32-S3-WROOM-1-N8R8USBLC6-2SC6DAC60501ZDGSRINA181A2IDBVRTPSM84209RKHRLM358BAIDR

Black Body Heater Control bill of materials (BOM)

49 components, 29 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U201
1
ESP32-S3-WROOM-1-N8R8
U202
1
USBLC6-2SC6
U203
1
DAC60501ZDGSR
U301
1
INA181A2IDBVR
U302
1
TPSM84209RKHR
~
U303
1
LM358BAIDR
LM358
U305
1
BD139
Q302
1
5040500891
J201
1
UJ20-C-H-G-SMT-1-P16-TR
USB_C_Receptacle_USB2.0_16P
J203
2
436500200
P301, P302
2
SW_MEC_5E
SW201, SW202
1
LTST-C191KRKT
RED
D201
1
1N5819WS
D202
1
SMAJ24A
D301
1
GRM188R6YA106MA73D
10uf
C201
7
CL10B104KB8NNNC
100nf
C202, C204, C207, C301, C310, C311, C312
2
CL10A226MP8NUNE
22uf
C203, C206
1
C1608X5R1E685K080AC
6.8uf
C302
1
C0603C331J5GACTU
330pf
C303
Show 9 more
QtyPartRefs
1
GRM32EC81C476KE15L
47uf
C304
6
ERA-3AEB103V
10k
R201, R203, R205, R308, R309, R313
2
ERA-3AEB1331V
1.33k
R202, R302
4
RT0402BRD075K1L
5.1k
R206, R207, R303, R311
1
RCWE0805R100FKEA
100m
R301
2
ERA-3AEB4990V
500
R304, R305
1
CRM2512-FX-5R10ELF
5.1
R306
2
ERA-3AEB104V
100k
R307, R312
1
ERJ-3EKF1371V
1.37k
R310

Black Body Heater Control design files

The KiCad project lives in the DylanLockyer/Black_Body repository on GitHub; these links point at the commit this page was built from.

Black Body Heater Control: common questions

What microcontroller does the Black Body Heater Control use?

The Black Body Heater Control is built around the ESP32-S3-WROOM-1-N8R8, from the ESP32 family.

How big is the Black Body Heater Control PCB?

The Black Body Heater Control measures 57.5 × 42.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Black Body Heater Control?

49 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Black Body Heater Control design files?

From the DylanLockyer/Black_Body repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Black Body Heater Control design in my own project?

Yes, under the terms of its MIT license, which DylanLockyer chose for the repository.
