RaspberryPi-Pico-Motor-Expansion-Board
eamars·RaspberryPi-Pico-Motor-Expansion-Board·motor_expansion_board_v2/pcb/pico_expansion_board.kicad_pcb
About the RaspberryPi-Pico-Motor-Expansion-Board
RaspberryPi-Pico-Motor-Expansion-Board is an open source RP2040/RP2350 PCB design by eamars, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 91.7 × 66.8 mm, with 63 components from 47 distinct parts.
Its main chip is the MAX3232, from the RP2040/RP2350 family. Other key parts include the TPS5450DDA, C429947, CAT24C256, 74LVC1G125 and AMS1117-3.3. By type, the board carries 18 capacitors, 16 resistors, 12 connectors, 9 ICs, 6 diodes and 1 switch.
It belongs with the displays & leds designs in this gallery.
From the project

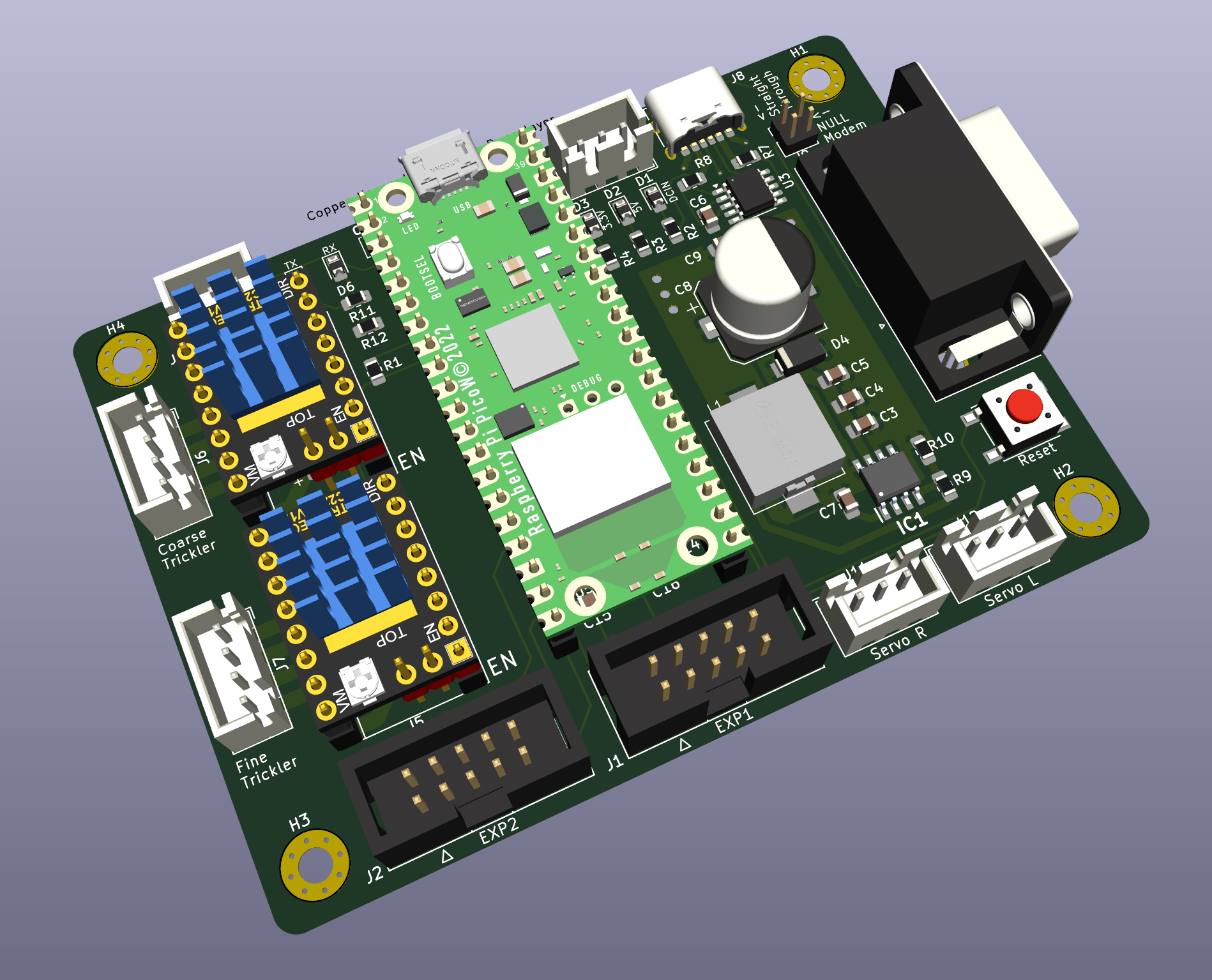

A raspberry pi pico expansion board designed for OpenTrickler project
The Raspberry Pi Pico Motor Expansion Board V2 vis designed to be used as the controller for OpenTrickler. The board is designed to trickle certain amount of charges (e.g, gun powder) from the reservoir by reading measurements from the attached precision digital balance and actuate corresponding motors.
Join our discord server for help and development information.

Main components on the RaspberryPi-Pico-Motor-Expansion-Board
RaspberryPi-Pico-Motor-Expansion-Board bill of materials (BOM)
63 components, 47 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS5450DDA | SOIC127P600X170-9N | IC1 |
| 1 | MAX3232 Pico | RPi_Pico_FootprintOnly | U1 |
| 1 | C429947 CAT24C256 | SO-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | CAT24C256 CH224K | SSOP-10-1EP_3.9x4.9mm_P1mm_EP2.1x3.3mm | U3 |
| 1 | 74LVC1G125 MAX3232 | SOIC-16_3.9x9.9mm_P1.27mm | U4 |
| 1 | AMS1117-3.3 74LVC1G125 | SOT-23-5 | U5 |
| 3 | 74LVC1G125 | SOT-23-5 | U6, U7, U8 |
| 1 | DC12V/24V EXP1 | IDC-Header_2x05_P2.54mm_Vertical | J1 |
| 1 | C27438 EXP2 | IDC-Header_2x05_P2.54mm_Vertical | J2 |
| 1 | C27438 Conn_01x03_Socket | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J3 |
| 1 | C144395 TMC2209 Motor 1 | Conn_StepStick_smaller_hole | J4 |
| 1 | C144395 TMC2209 Motor 2 | Conn_StepStick_smaller_hole | J5 |
| 1 | C426221 Motor 1 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J6 |
| 1 | Motor 2 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J7 |
| 1 | EXP1 USB_C_Receptacle_USB2.0_14P | USB_C_Receptacle_HRO_TYPE-C-31-M-17 | J8 |
| 1 | EXP1 Conn_02x02_Odd_Even | PinHeader_2x02_P2.00mm_Vertical | J9 |
| 3 | Conn_01x03_Pin | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J11, J12, J13 |
| 1 | SW_Push | SW_Push_1P1T_NO_6x6mm_H9.5mm | SW1 |
| 1 | SS54 GREEN | D_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 2 | C84256 GREEN | D_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2, D3 |
Show 27 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C84256 SS54 | DO-214AC | D4 |
| 1 | RED | D_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D5 |
| 1 | BLUE | D_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D6 |
| 1 | 15UH 15uH | Power Inductor 10x11 | L1 |
| 1 | 4.7UF 100uF | CP_Elec_6.3x7.7 | C1 |
| 1 | 100NF 100uF | CP_Elec_6.3x7.7 | C2 |
| 1 | 4.7UF 4.7uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 1 | 10NF 4.7uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4 |
| 2 | 100NF 10nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C5, C7 |
| 1 | 100NF 1u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C6 |
| 1 | 100UF 330uF | CP_Elec_10x10.5 | C8 |
| 1 | 100UF 10nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C9 |
| 4 | 10NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C10, C13, C15, C16 |
| 2 | 100NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C11, C14 |
| 1 | 330UF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C12 |
| 2 | 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C17, C18 |
| 1 | 10K 1K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 1 | 3.16K 4.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
| 1 | 10K 680 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
| 1 | 300 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4 |
| 1 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5 |
| 2 | 4.7K 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6, R9 |
| 1 | 300 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7 |
| 1 | 680 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R8 |
| 1 | 3.16K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R10 |
| 2 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R11, R12 |
| 4 | 4.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R13, R14, R15, R16 |
RaspberryPi-Pico-Motor-Expansion-Board design files
The KiCad project lives in the eamars/RaspberryPi-Pico-Motor-Expansion-Board repository on GitHub; these links point at the commit this page was built from.
RaspberryPi-Pico-Motor-Expansion-Board: common questions
What microcontroller does the RaspberryPi-Pico-Motor-Expansion-Board use?
The RaspberryPi-Pico-Motor-Expansion-Board is built around the MAX3232, from the RP2040/RP2350 family.
How big is the RaspberryPi-Pico-Motor-Expansion-Board?
The RaspberryPi-Pico-Motor-Expansion-Board measures 91.7 × 66.8 mm, has 4 copper layers and is 0.19 mm thick.
How many components are on the RaspberryPi-Pico-Motor-Expansion-Board?
63 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RaspberryPi-Pico-Motor-Expansion-Board design files?
From the eamars/RaspberryPi-Pico-Motor-Expansion-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RaspberryPi-Pico-Motor-Expansion-Board design in my own project?
Yes, under the terms of its GPL-3.0 license, which eamars chose for the repository.
Can I test firmware for the RaspberryPi-Pico-Motor-Expansion-Board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
