Easyhive PCB layout, top view — open source Microchip SAM board by easyhive

About the Easyhive PCB

Easyhive is an open source Microchip SAM PCB design by easyhive, published on GitHub. It is a board measuring 35 × 75 mm, with 106 components from 55 distinct parts.

Its main chip is the ATSAMD21G, from the Microchip SAM family. Other key parts include the BQ2407X, ADS1232, DS18B20U, XC6220B331 and TPS22919. By type, the board carries 32 capacitors, 20 resistors, 14 diodes, 11 jumpers, 8 ICs and 6 test points.

From the project

Kicad files for PCB production of easyhive boards which are used in easyhive hive scale.

1. Branch (master): Design with Nb-IoT Modul from ublox (SARA N310) 2. Branch: Design with Nb-IoT Modul from Quectel (BC66 04 Std)

Notes for Generate the bom of material: 1. copy file "easyhivebom.py" to your local KiCad Plugin folder e.g. /usr/share/kicad/plugins 2. Open Eeschema 3. Tools -> Generate Bill of Material: add a new plugin (choose easyhivebom.py) 4. Generate BOM! Path is your KiCad project directory

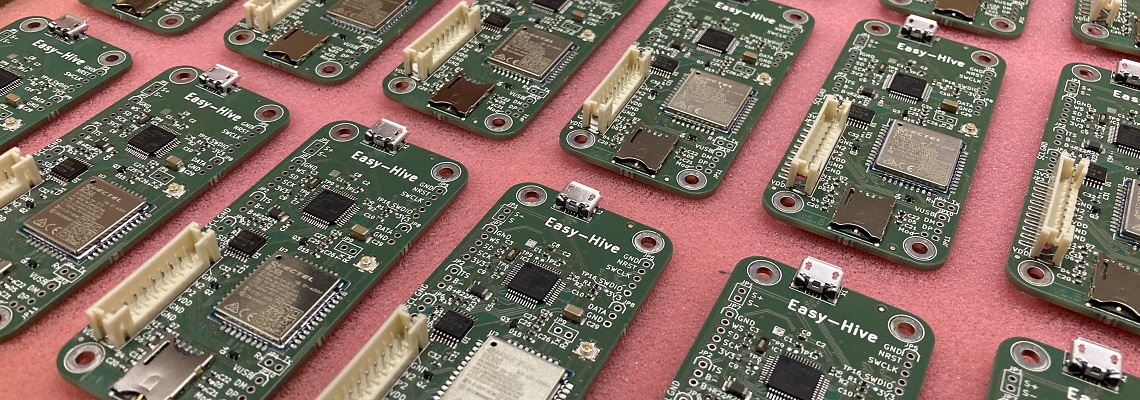

Easyhive, from the project README
From the project README

Main components on the Easyhive

ATSAMD21GBQ2407XADS1232DS18B20UXC6220B331TPS22919SN74AVC4T774PWG4BC66

Easyhive bill of materials (BOM)

106 components, 55 distinct parts.

QtyPartRefs
1
ATSAMD21G
IC1
1
BQ2407X
IC2
1
ADS1232
IC3
1
DS18B20U
IC4
1
XC6220B331
IC5
1
TPS22919
IC7
1
SN74AVC4T774PWG4
U1
1
BC66
U2
1
32768 Hz
Q1
3
DTC123JET1G
Q2, Q3, Q4
1
USB_MICRO_SHIELD
X1
1
U.FL
J1
1
PKMCS
P1
1
6V/0.5A
F1
4
MOUNT-PAD-ROUND2.8
H1, H2, H3, H4
1
Solar
JP1
1
Battery
JP2
1
JST PH
JP3
1
UART_AUX
JP4
1
SWD
JP5
Show 35 more
QtyPartRefs
1
I2C
JP6
1
I2S
JP7
1
ext. DS18B20
JP8
1
UART_DBG
JP9
1
USB_BC66
JP10
1
USB_MODE
JP11
1
693043020611
K1
6
TPTP08R
TP6, TP9, TP10, TP11, TP13, TP16
2
MBR0520LT
D1, D2
12
PESD0402-140
D4, D5, D6, D7, D8, D9, D10, D11 +4
2
SM-1206
L1, L2
8
100n
C1, C5, C6, C7, C14, C15, C24, C28
5
1u
C2, C11, C30, C31, C32
3
15p
C3, C4, C26
4
10u
C8, C9, C16, C17
1
100p
C10
3
4u7
C12, C13, C23
4
47p
C18, C19, C20, C21
1
100nF
C22
1
56p
C25
1
10n
C27
1
100u
C29
1
330
R1
1
2k2
R2
4
0R
R3, R22, R23, R24
1
1k18
R4
1
680R
R5
2
10K
R6, R10
3
22R
R7, R8, R9
2
2k
R13, R14
1
NTC 103AT
R15
1
4M7
R16
1
10M
R17
1
4k7
R18
1
1M
R25

Easyhive design files

The KiCad project lives in the easyhive/easyhive_kicad repository on GitHub; these links point at the commit this page was built from.

Easyhive: common questions

What microcontroller does the Easyhive use?

The Easyhive is built around the ATSAMD21G, from the Microchip SAM family.

How big is the Easyhive PCB?

The Easyhive measures 35 × 75 mm and is 1.6 mm thick.

How many components are on the Easyhive?

106 components, from 55 distinct parts. The full bill of materials is listed on this page.

Where can I download the Easyhive design files?

From the easyhive/easyhive_kicad repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Easyhive design in my own project?

The repository has no license, so all rights stay with easyhive. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Easyhive without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Microchip SAM firmware against it before you order a PCB.
