Flight-Controller for rockets

epicgamer720·Flight-Controller-for-rockets·Hardware/PCB/Flight controler.kicad_pcb

Flight-Controller for rockets PCB layout, top view — open source STM32 board by epicgamer720

About the Flight-Controller for rockets PCB

Flight-Controller for rockets is an open source STM32 PCB design by epicgamer720, published on GitHub. It is a 2-layer board measuring 40 × 52.5 mm, with 101 components from 44 distinct parts.

Its main chip is the STM32F722RETx, from the STM32 family. Other key parts include the BQ25883RGER, ICM-45686, BMP580, TPS63070RNMR and LMR51430. By type, the board carries 43 capacitors, 31 resistors, 8 connectors, 6 ICs, 4 inductors and 3 diodes.

It belongs with the robotics & motion, rf & radio and power & battery designs in this gallery.

From the project

Flight controller for rockets

A custom, open-source flight computer for model and high-power rockets, built around an STM32F722 with onboard IMU, barometer, GPS, pyro deployment, quad servo outputs, and microSD logging. Designed from scratch in KiCad.

Wanted to get my feet wet with more mixed PCB design. I designed this as a base for firmware and testing I plan to designing another one after I build and test this one on actual rockets. I plan to use this for my rocketry team for active control and data logging

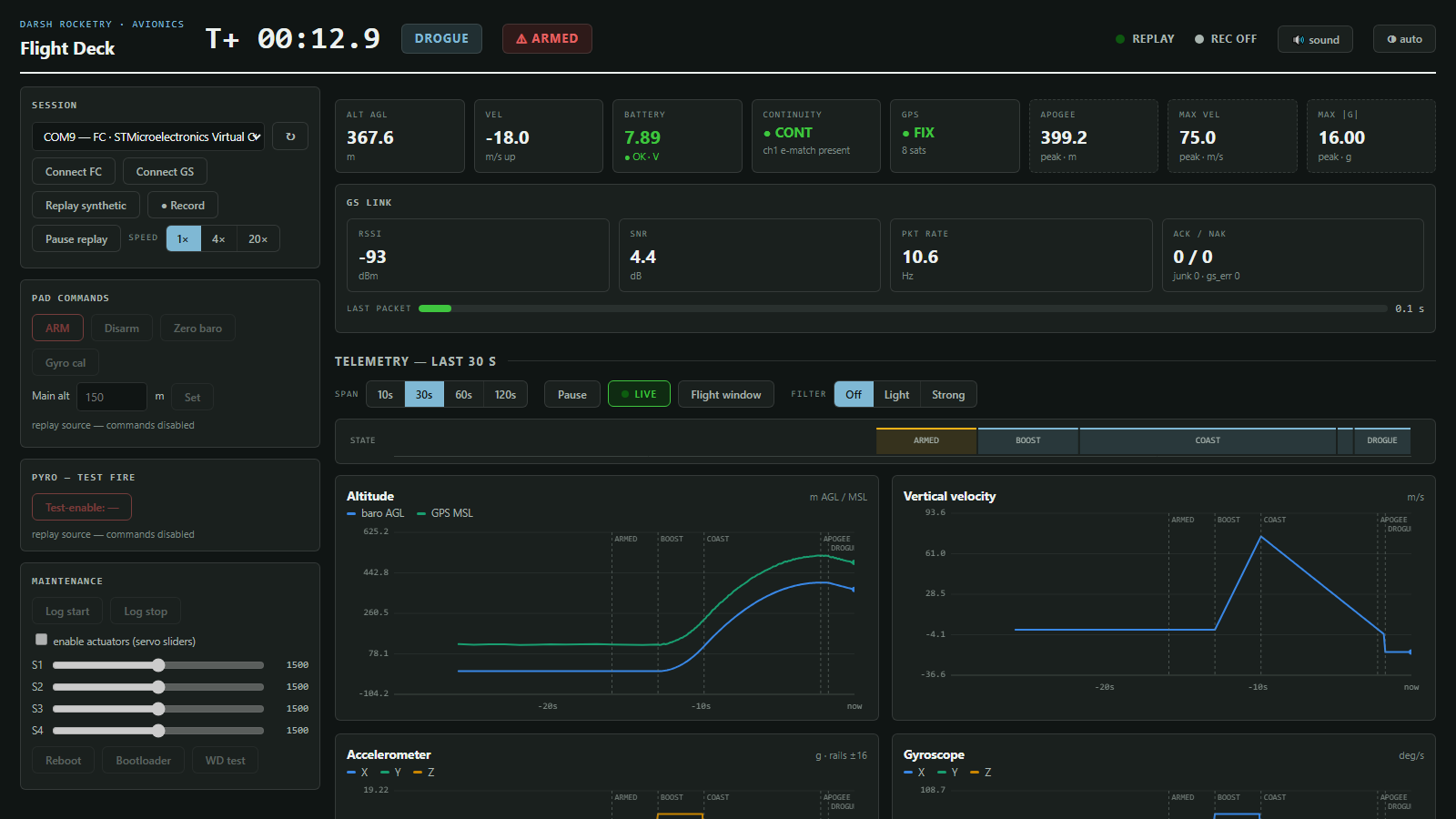

Flight-Controller for rockets, from the project README
From the project README

Main components on the Flight-Controller for rockets

STM32F722RETxBQ25883RGERICM-45686BMP580TPS63070RNMRLMR51430

Flight-Controller for rockets bill of materials (BOM)

101 components, 44 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F722RETx
U1
1
BQ25883RGER
U2
1
ICM-45686
U3
1
BMP580
U4
1
TPS63070RNMR
U5
1
LMR51430
U6
2
AO3400A
Q1, Q2
1
X322525MOB4SI
X1
1
Q13FC1350000400
X2
3
Screw_Terminal_01x02
J1, J6, J7
4
Conn_01x03
J2, J3, J4, J5
1
BM05B-GHS-TBT_LF__SN__N_
J8
1
TF-01A
Card1
1
TYPE-C 16PIN 2MD(073)
USB1
1
LED
D1
1
WS2812B-2020
D2
1
PRTR5V0U2X
D3
1
FCM1608KF-601T03
L4
1
DFE252012F-1R0M=P2
L5
1
XFL4020-152MEC
L6
Show 24 more
QtyPartRefs
1
YHNR3015-5R6M
L7
4
1uF
C1, C28, C29, C30
4
10uF
C2, C9, C12, C38
3
10uF
C3, C5, C31
1
47nF
C4
1
44uF
C6
2
10uF
C7, C8
3
22uF
C10, C11, C13
12
100nF
C14, C15, C19, C20, C21, C22, C23, C24 +4
1
2.2uF
C16
2
22uF
C17, C18
1
2.2uF
C32
2
20pF
C33, C34
2
6.8pF
C35, C36
5
100nf
C39, C40, C41, C45, C46
2
5.1K
R1, R2
1
.383k
R3
1
5.23K
R4
1
30.1K
R5
19
10K
R6, R7, R8, R9, R10, R11, R12, R13 +11
1
100K
R14
1
22.1K
R15
2
100K
R24, R29
3
100
R25, R27, R31

Flight-Controller for rockets design files

The KiCad project lives in the epicgamer720/Flight-Controller-for-rockets repository on GitHub; these links point at the commit this page was built from.

Flight-Controller for rockets: common questions

What microcontroller does the Flight-Controller for rockets use?

The Flight-Controller for rockets is built around the STM32F722RETx, from the STM32 family.

How big is the Flight-Controller for rockets PCB?

The Flight-Controller for rockets measures 40 × 52.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Flight-Controller for rockets?

101 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Flight-Controller for rockets design files?

From the epicgamer720/Flight-Controller-for-rockets repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Flight-Controller for rockets design in my own project?

The repository has no license, so all rights stay with epicgamer720. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Flight-Controller for rockets without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
