About the Raven1106 PCB

Raven1106 is an open source ESP32 PCB design by EPSILON0-dev, published on GitHub. It is a 4-layer board measuring 86 × 56 mm, with 209 components from 60 distinct parts.

Its main chip is the ESP32-C6-MINI-1, from the ESP32 family. Other key parts include the RV1106G3, EA3036CQB, PAM2306AYPAA, Flash and FSUSB42MUX. By type, the board carries 89 capacitors, 84 resistors, 8 ICs, 8 connectors, 7 diodes and 5 inductors.

It belongs with the iot & wireless designs in this gallery.

From the project

Raspberry Pi-style SBC based on the Rockchip RV1106G3

Raspberry Pi-like single board computer based on the Rockchip RV1106G3.

Raven1106 is a custom open-hardware SBC. This repository contains everything related to the project including: the board schematics and the PCB design, build scripts, configurations, device trees and file system overlays for the operating system images and all the patches needed to get everything working.

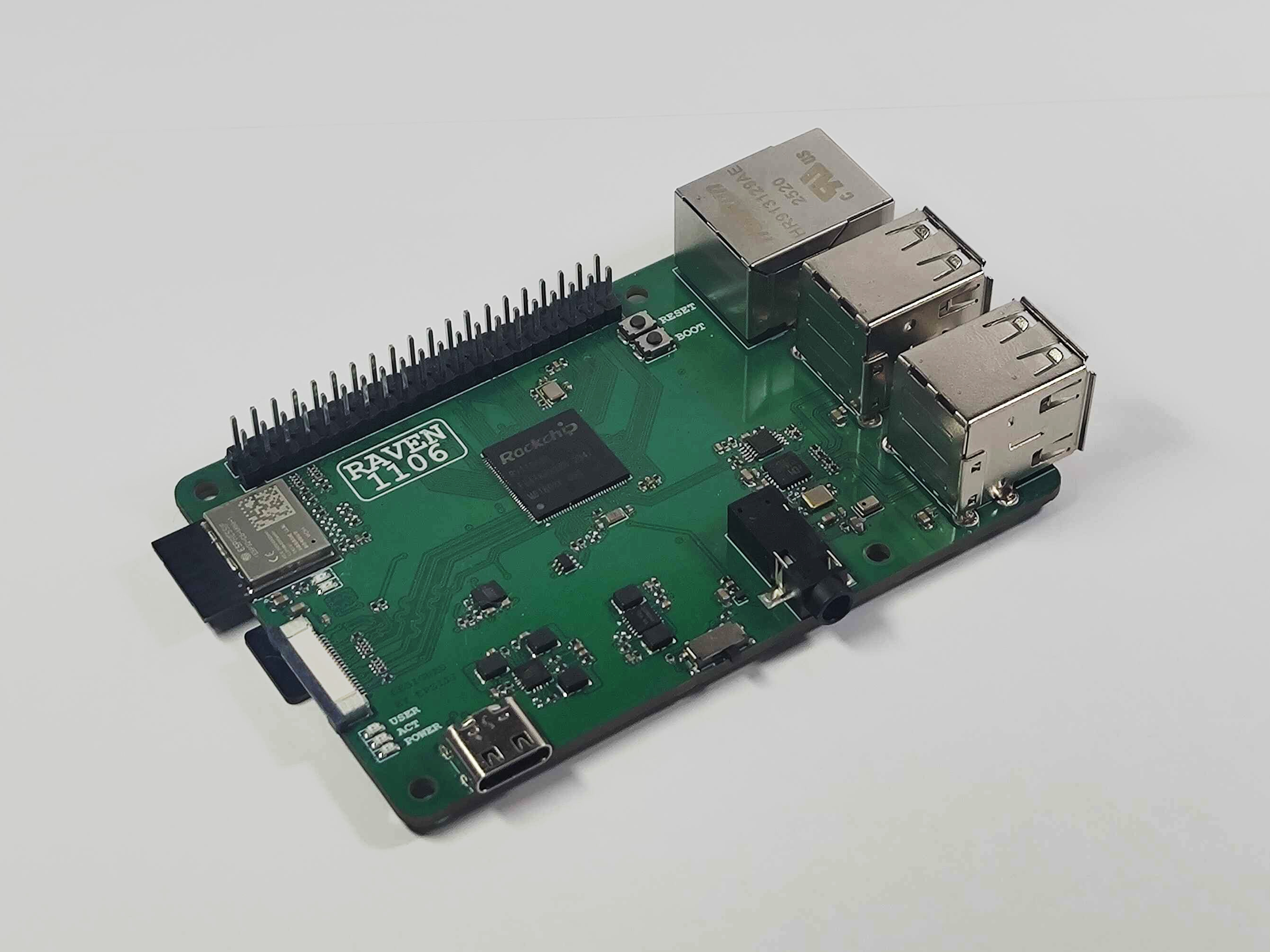

Raven1106, from the project README
From the project README

Main components on the Raven1106

RV1106G3EA3036CQBPAM2306AYPAAFlashFSUSB42MUXCH334FESP32-C6-MINI-1LSM6DSR

Raven1106 bill of materials (BOM)

209 components, 60 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RV1106G3
U1
1
EA3036CQB
U101
1
PAM2306AYPAA
U102
1
Flash
U202
1
FSUSB42MUX
U302
1
CH334F
U303
1
ESP32-C6-MINI-1
U402
1
LSM6DSR
U501
1
FDG1024NZ
Q501
1
32.768KHZ
32.768kHz
Y1
1
C5261113
24MHz 20ppm
Y2
1
12MHZ
12MHz
Y301
1
GPIO
J1
1
MICRO_SD_CARD_DET1
Micro_SD_Card_Det1
J201
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J301
1
HR913129AE
J302
2
C456021
USB_A_Stacked
J303, J304
1
C4991872
AudioJack
J501
1
C51364851
Camera
J502
1
MSM421ACT006
MIC501
Show 40 more
QtyPartRefs
1
Boot
SW1
1
Reset
SW2
1
USB_Select
SW301
1
POWER
D1
1
ACT
D2
1
USER
D3
1
BAT60A
D201
1
ESP_LED0
D401
1
ESP_LED1
D402
1
PESD3V3S1UL
D501
5
1U5
1u5
L101, L102, L103, L104, L105
6
18P
18p
C1, C2, C3, C4, C302, C303
1
1n
C5
1
10N
10n
C6
2
DNP
C101, C106
26
C1691
10u 6.3V
C102, C103, C104, C109, C113, C114, C115, C116 +18
44
100N
100n
C105, C107, C108, C124, C125, C129, C130, C132 +36
5
220P
220p
C110, C111, C112, C120, C121
4
1u
C128, C153, C401, C508
2
1M
R1, R310
17
22
R2, R205, R301, R302, R410, R411, R412, R413 +9
12
1k
R3, R4, R5, R6, R8, R303, R307, R308 +4
7
100
R7, R9, R402, R404, R503, R505, R509
18
10K
10k
R101, R103, R201, R313, R401, R406, R407, R408 +10
2
100K
100k
R102, R104
1
200K
200k
R105
4
C53224176
100k 1%
R106, R107, R112, R113
1
C54920711
9.1k 1%
R108
2
C18222281
47k 1%
R109, R114
1
C54920643
200k 1%
R110
1
C25893
40.2k 1%
R111
1
C48391434
127k 1%
R115
1
C2909339
240 1%
R116
1
C53224183
0 (0603)
R117
2
0
R202, R502
2
5K1
5k1
R304, R306
1
C881060
6.04k 1%
R305
1
18K
18k
R314
6
22
RN301, RN302, RN303, RN402, RN501, RN502
1
10K
10k
RN401

Raven1106 design files

The KiCad project lives in the EPSILON0-dev/Raven1106 repository on GitHub; these links point at the commit this page was built from.

Raven1106: common questions

What microcontroller does the Raven1106 use?

The Raven1106 is built around the ESP32-C6-MINI-1, from the ESP32 family.

How big is the Raven1106 PCB?

The Raven1106 measures 86 × 56 mm, has 4 copper layers and is 1.6062 mm thick.

How many components are on the Raven1106?

209 components, from 60 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Raven1106 design files?

From the EPSILON0-dev/Raven1106 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Raven1106 design in my own project?

The repository has no license, so all rights stay with EPSILON0-dev. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Raven1106 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
